KH0634 - Pendant Pendant Sums

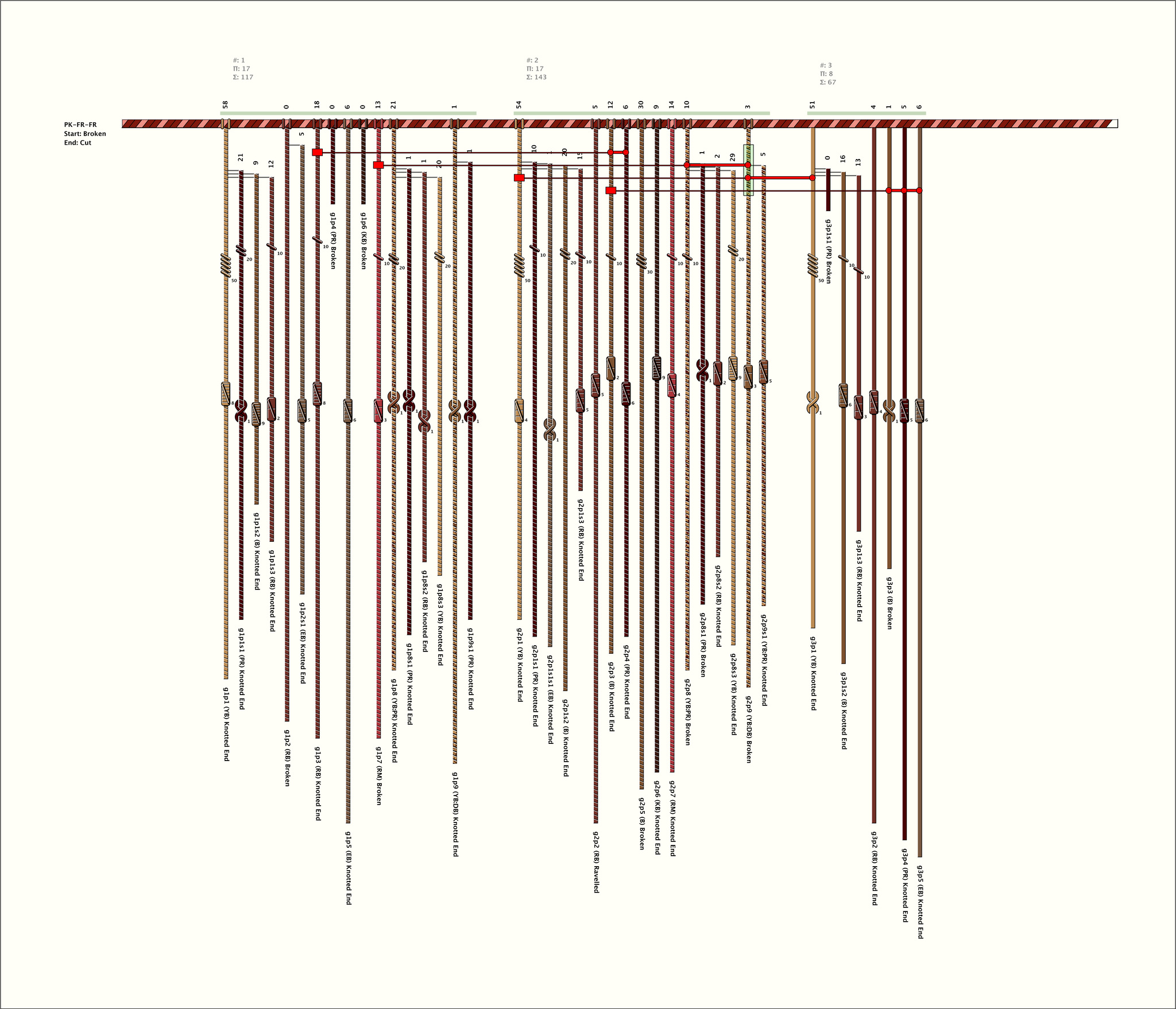

Drawings:

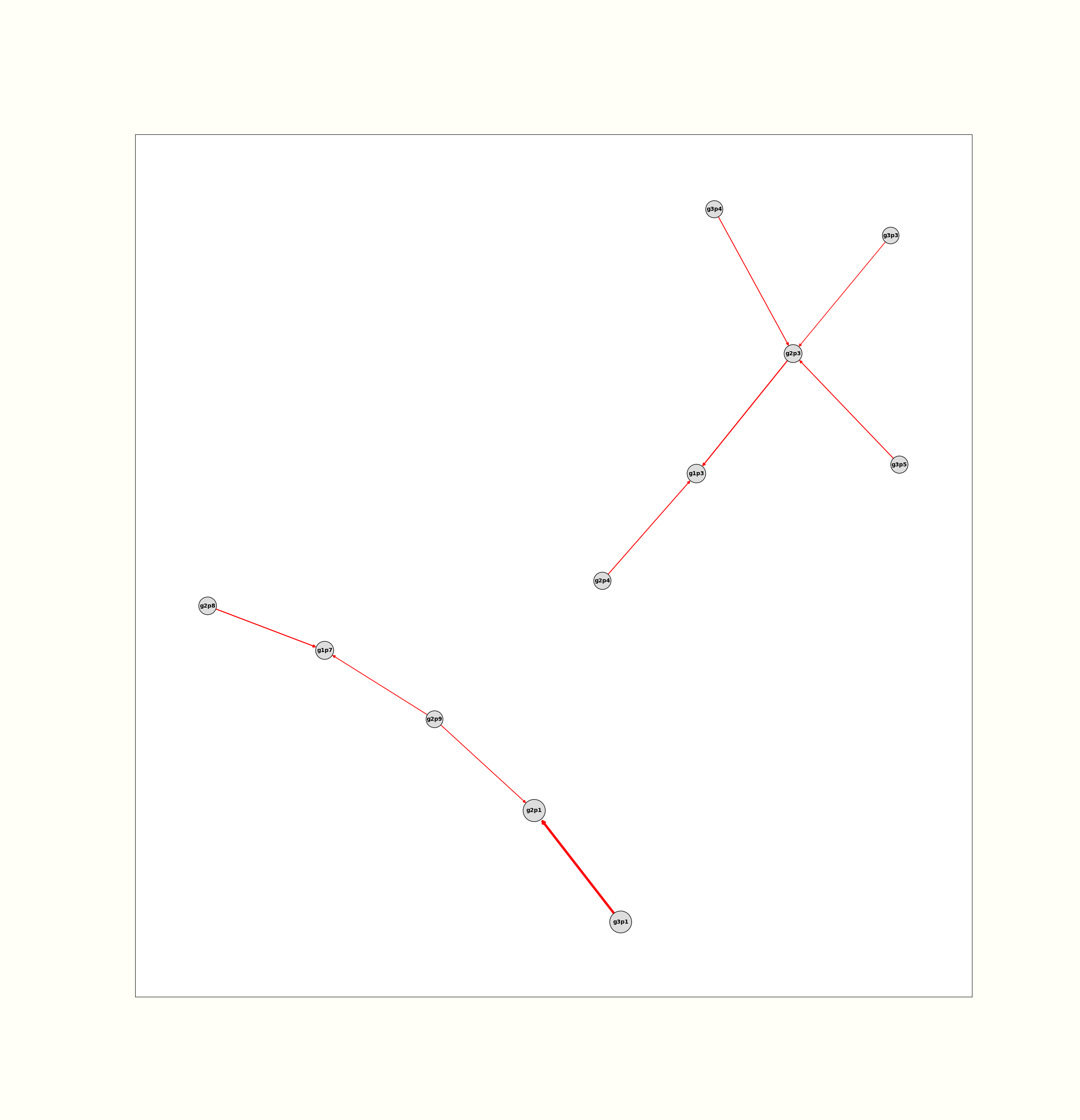

Sum NetGraph - Click on image to view larger
 |

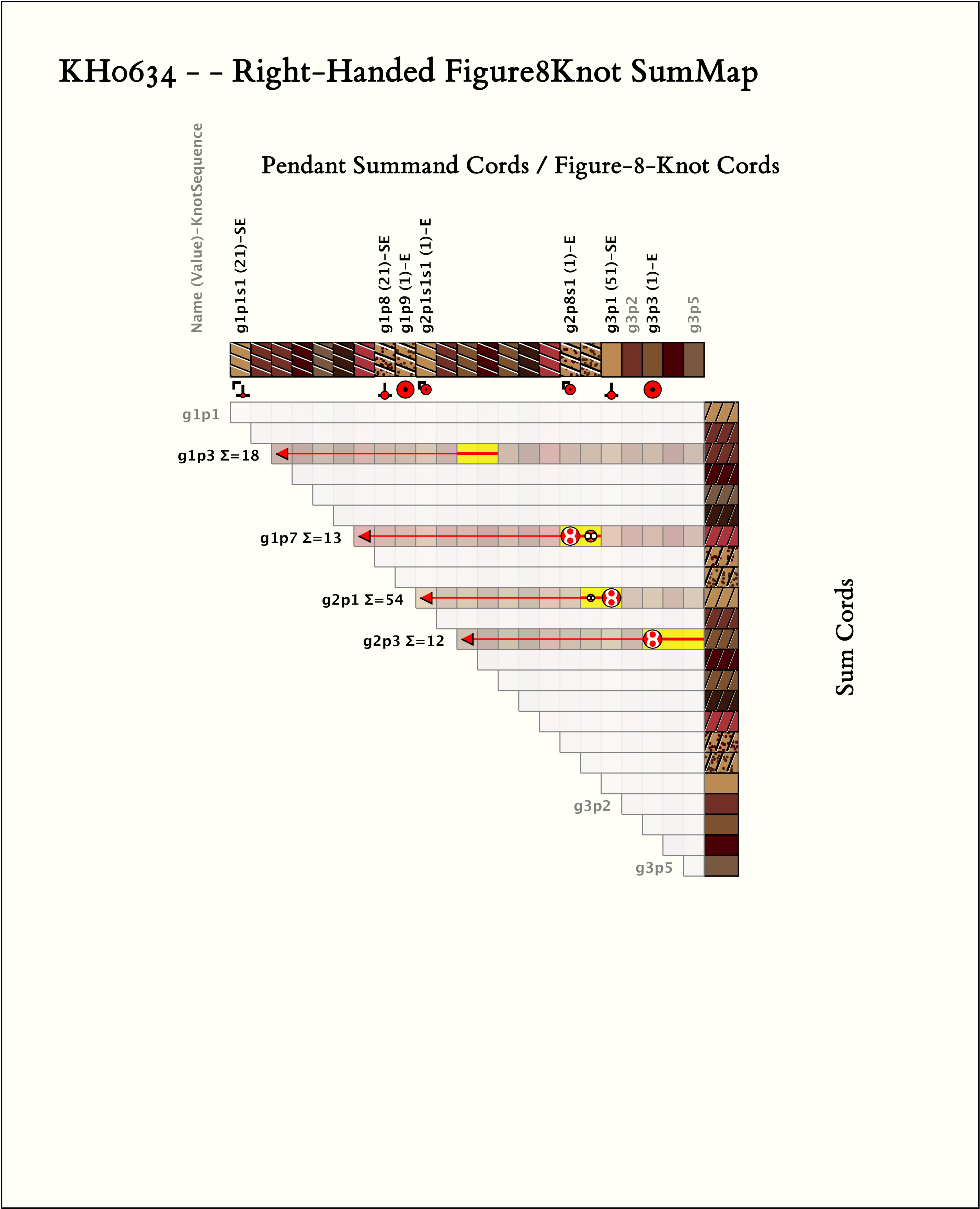

Sum Map - Click on image to view larger
 |

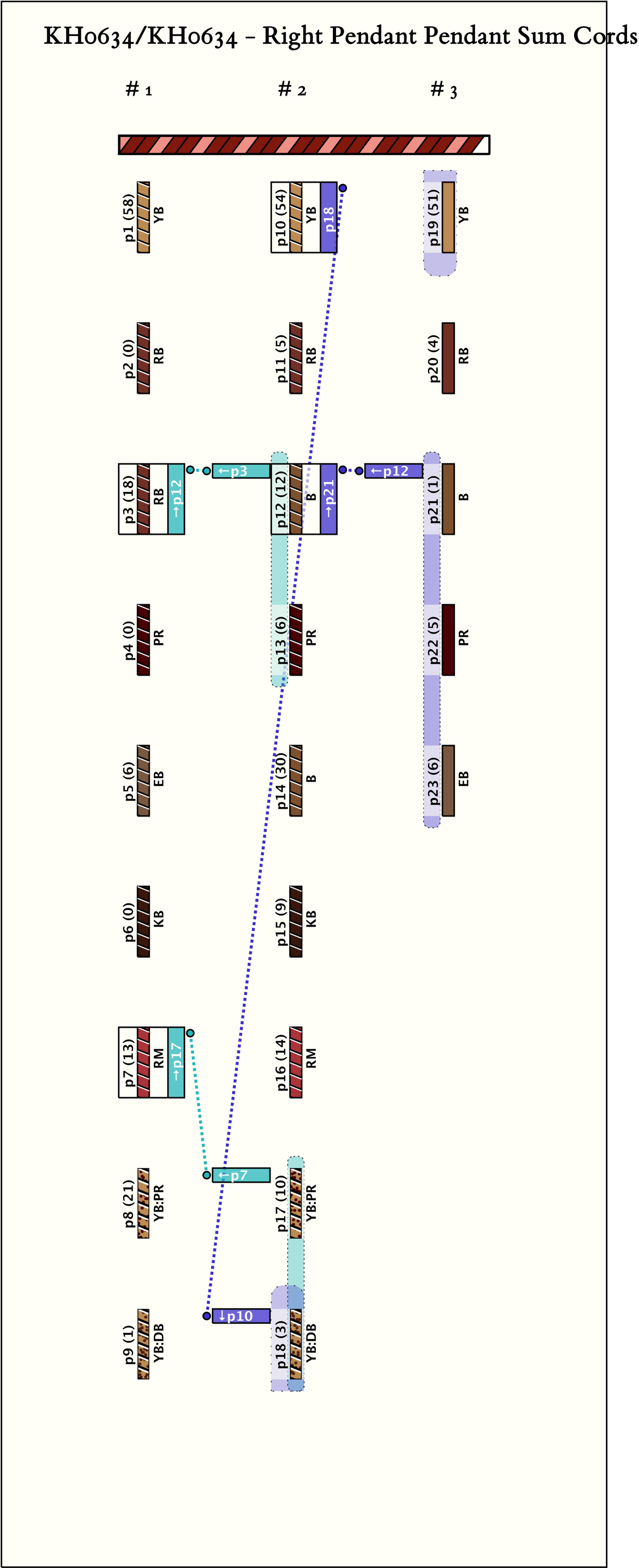

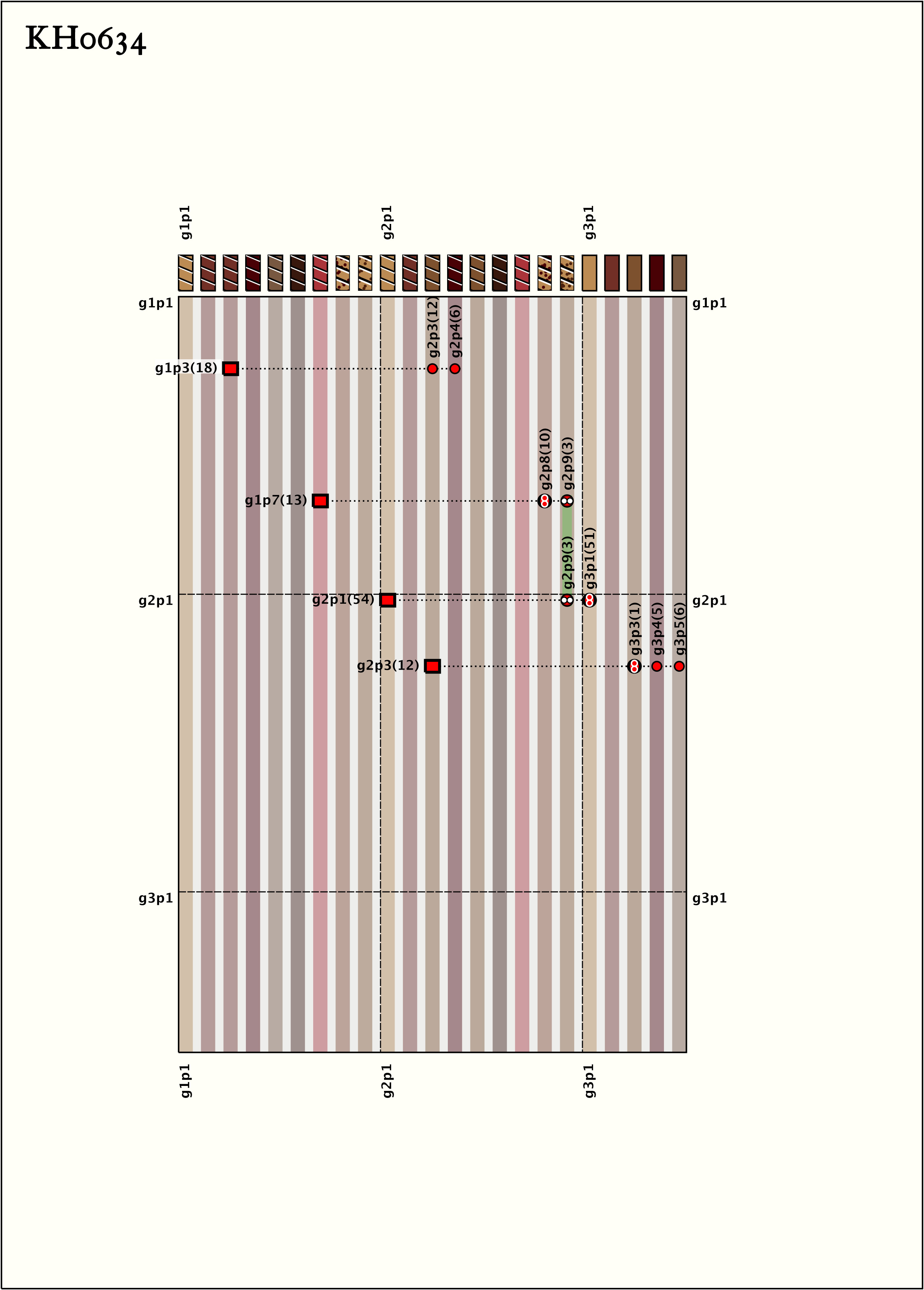

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sums with Figure-8-Knots: # Sums = 4, Max # Summands = 3, (Min, Mean, Max) Sum Values = (12, 24, 54)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

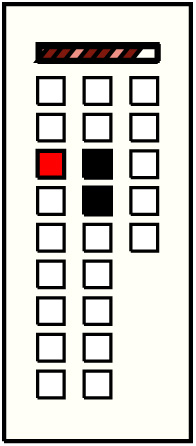

| 1 |  | g1p3 : 18RB | 18 | 2 | g2p3: 12B + g2p4: 6PR | |

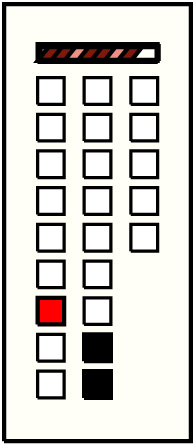

| 2 |  | g1p7 : 13RM | 13 | 2 | ❽g2p8: 10YB:PR + ∞g2p9: 3YB:DB∞ | |

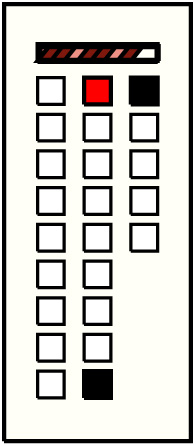

| 3 |  | g2p1 : 54YB | 54 | 2 | ∞g2p9: 3YB:DB∞ + g3p1: 51YB❽ | |

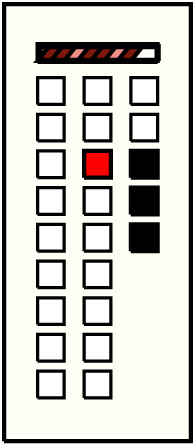

| 4 |  | g2p3 : 12B | 12 | 3 | ❽g3p3: 1B + g3p4: 5PR + g3p5: 6EB |
Khipu Notes:
Fieldguide Notes:
Khipu 2 of 3 (three khipus tied together).
The primary cords of khipu 1 & 2 have been joined by tying them in an overhand knot. The primary cords of khipu 2 & 3 have been joined by winding two mottled cords around each khipu's primary cords.
The mottled cords are the style and thickness of pendant cords, colour codes YB:DB and PR:FB.
All cords appear to be made of cotton
These khipus are discussed in the following videos:
Inca Khipu: The record and writing system made entirely of knots | Curator's Corner S6 Ep9
Migrating ancient Inca data to an opensource database | Khipu to Excel | Curator's Corner S6 Ep10
