KH0042/UR1034, AS034 - Subsidiary Pendant Sums
Drawings:

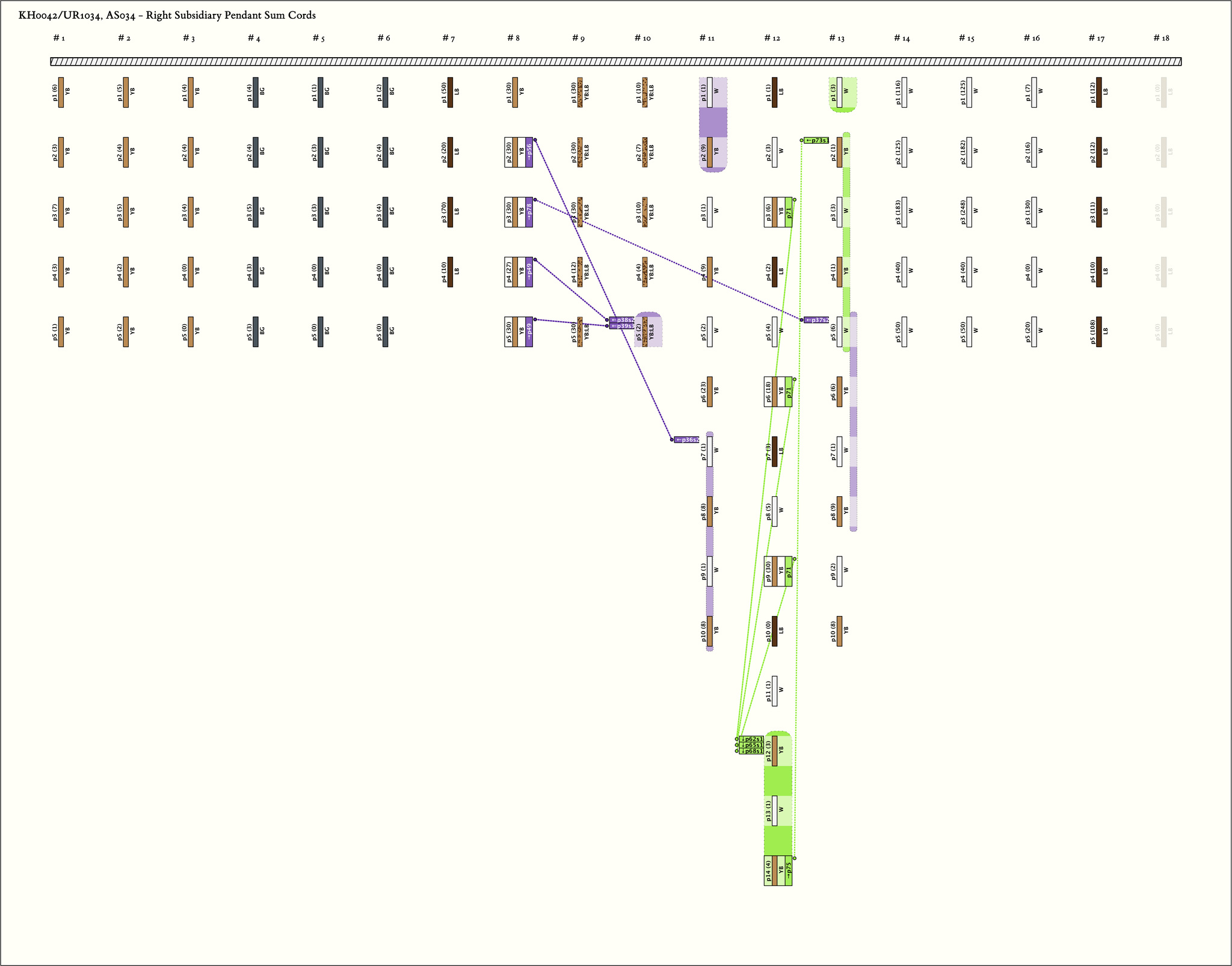

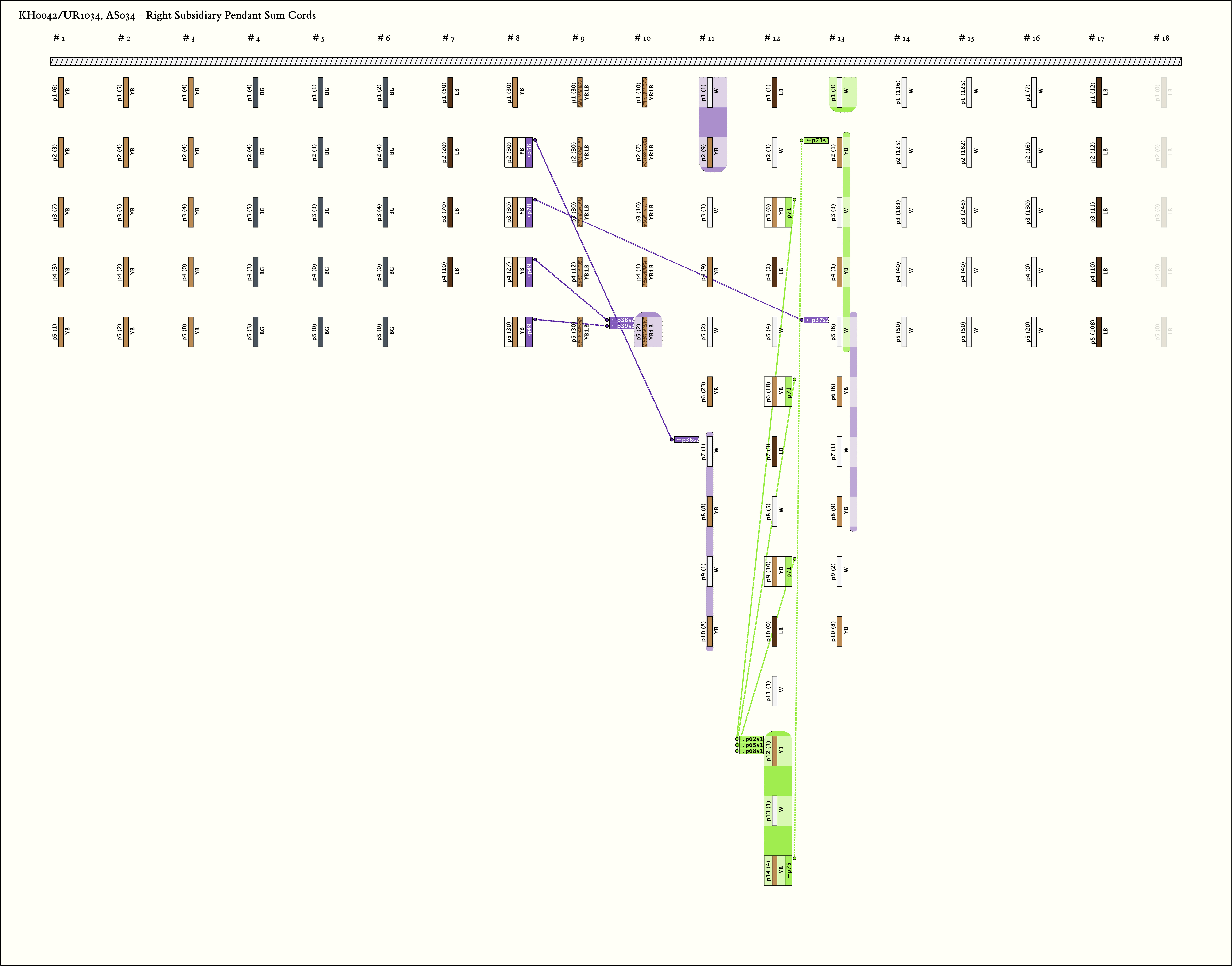

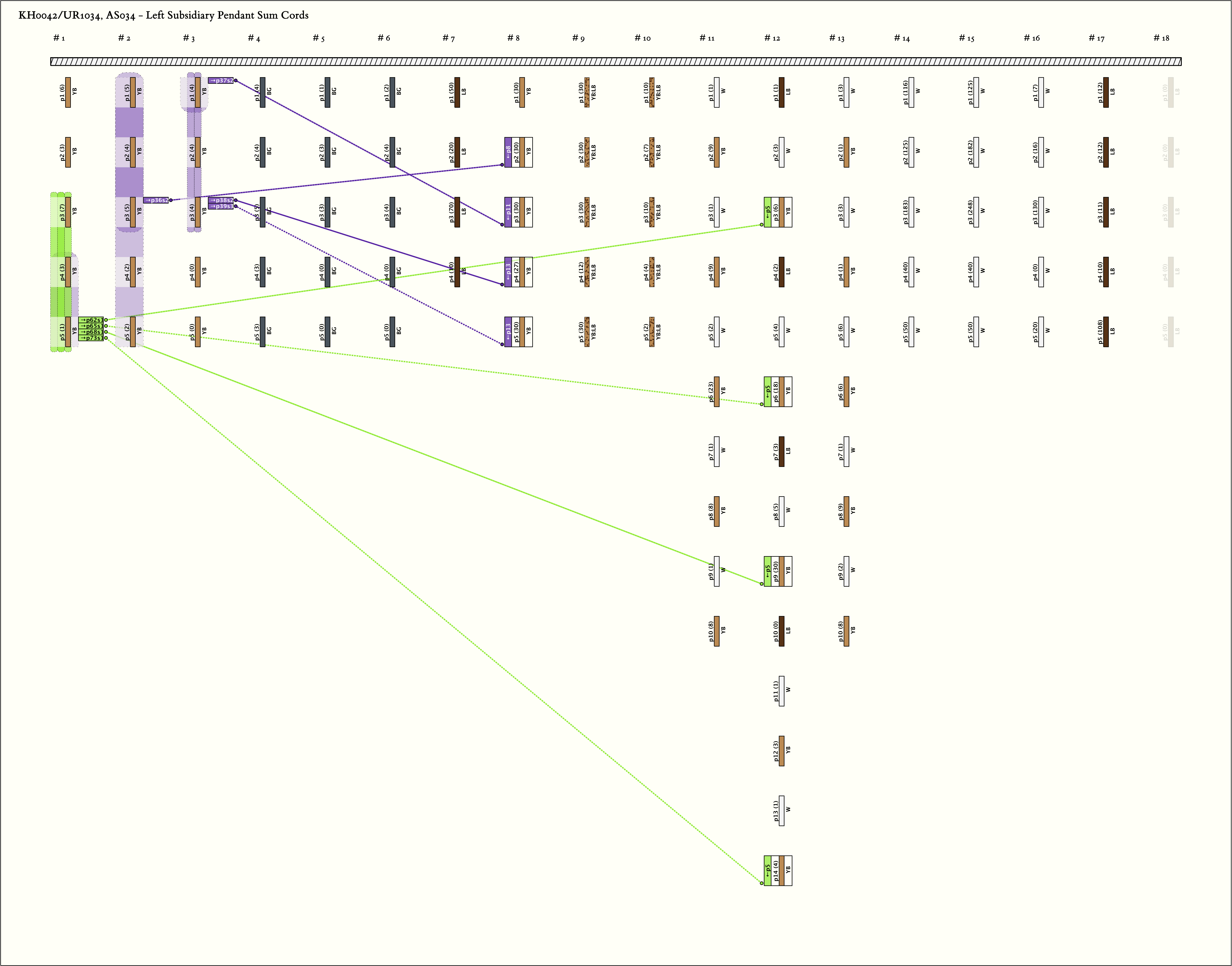

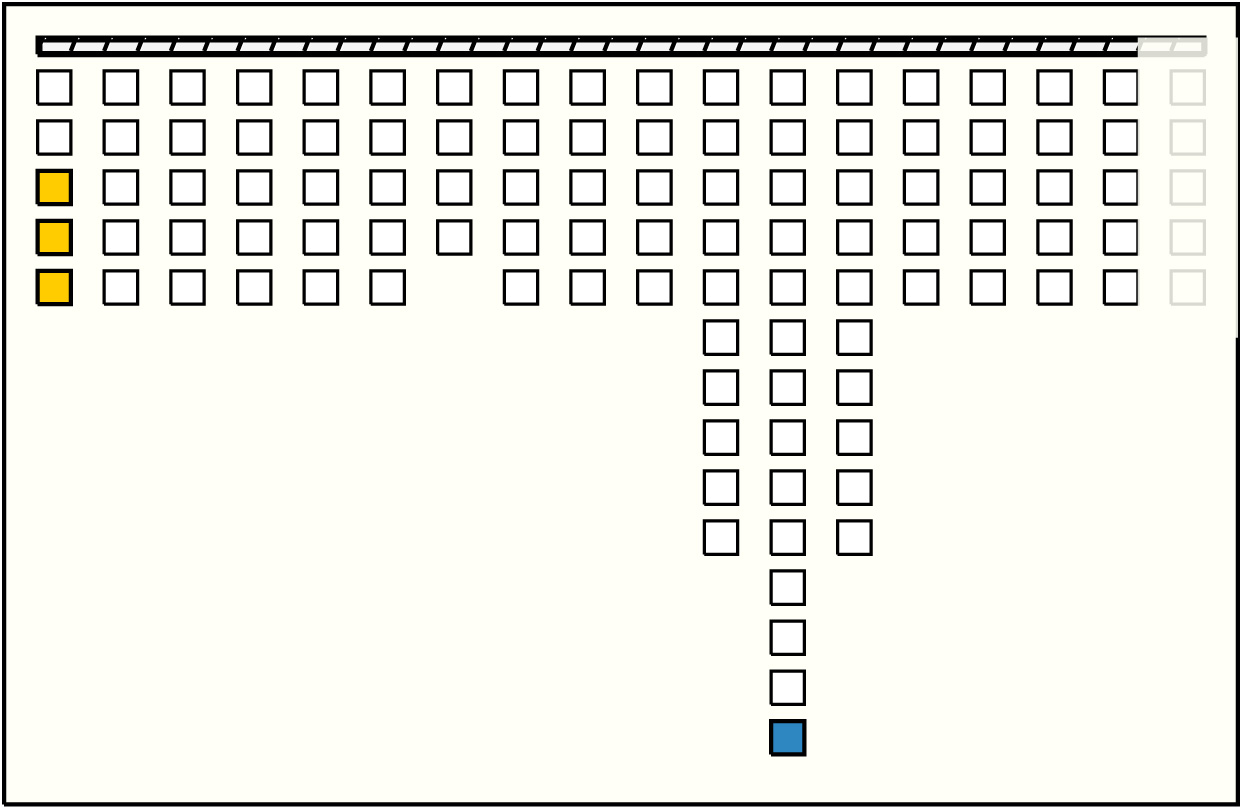

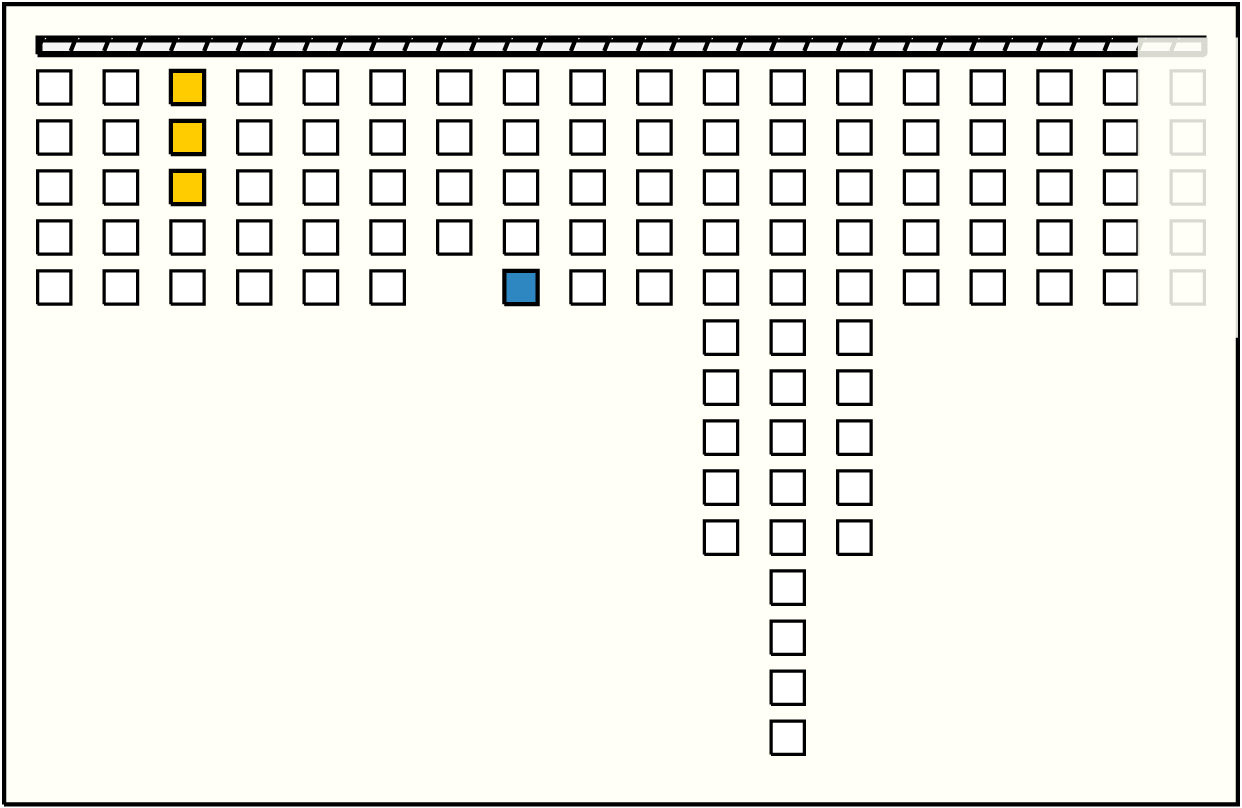

Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

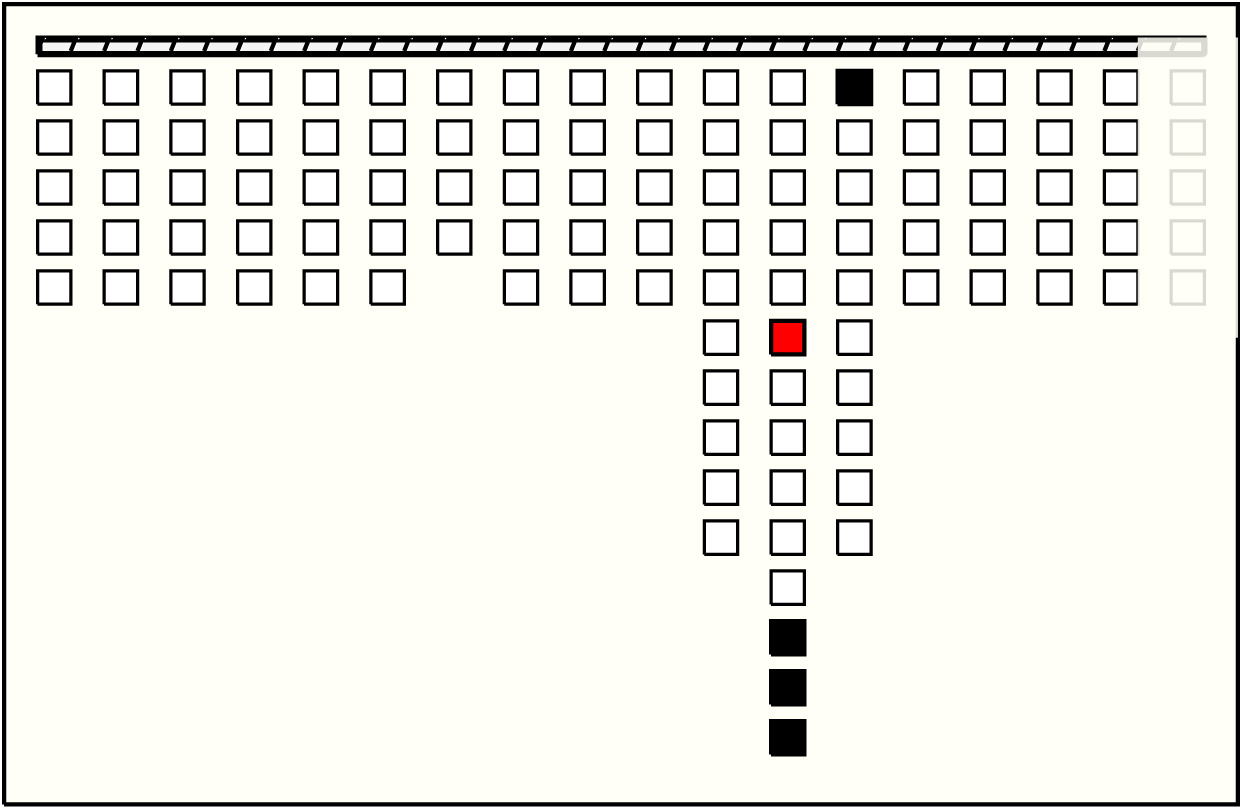

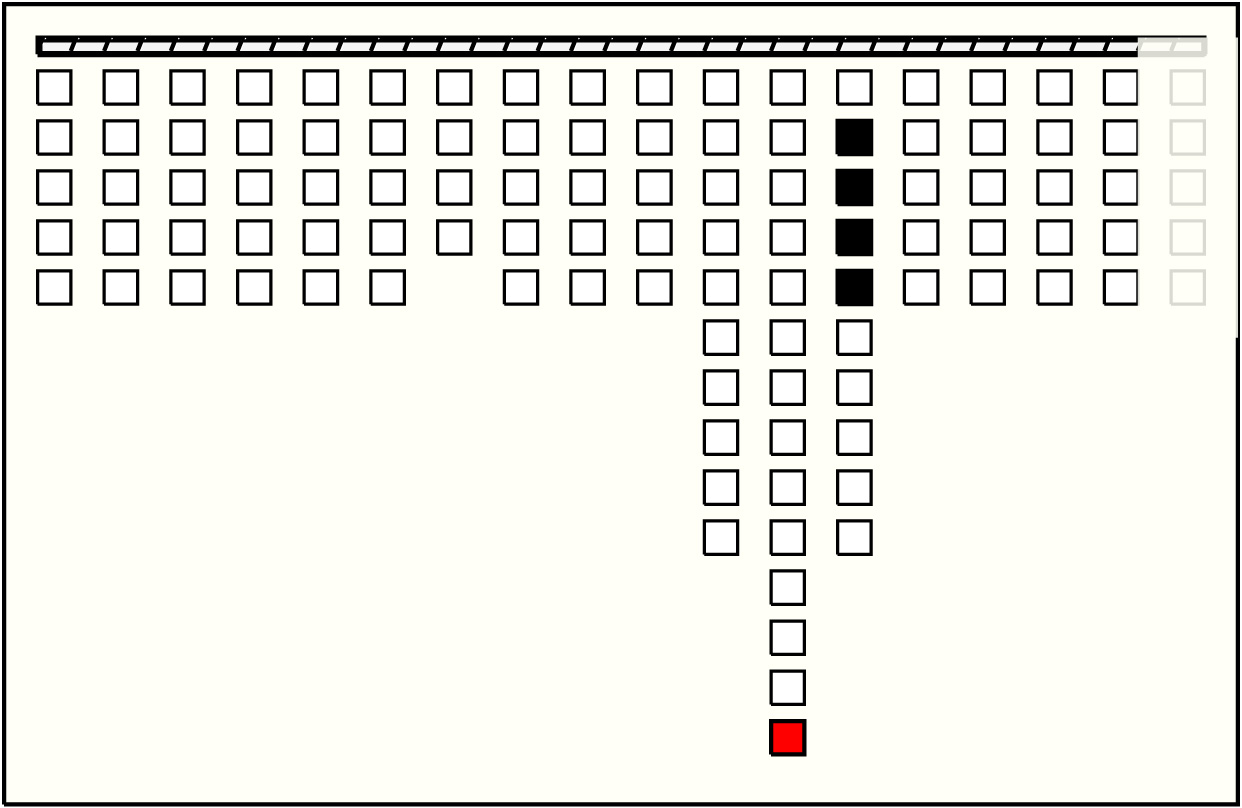

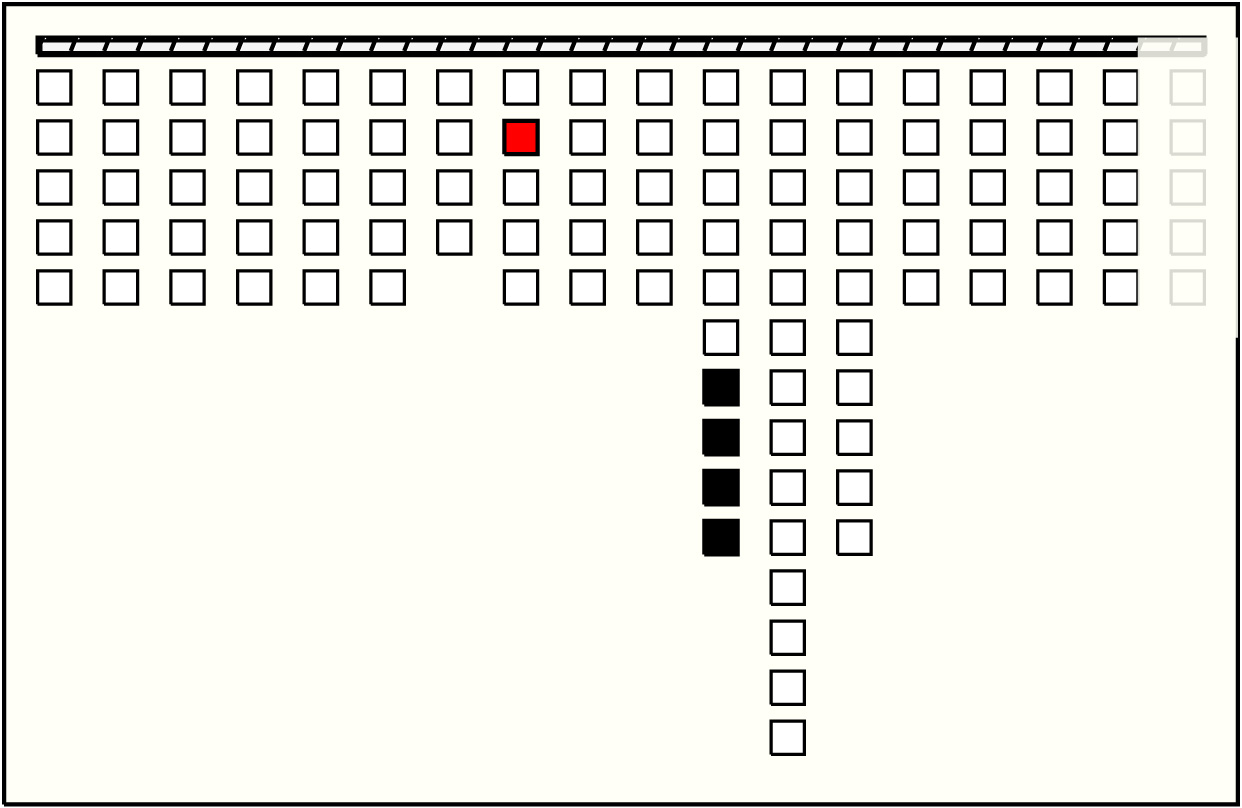

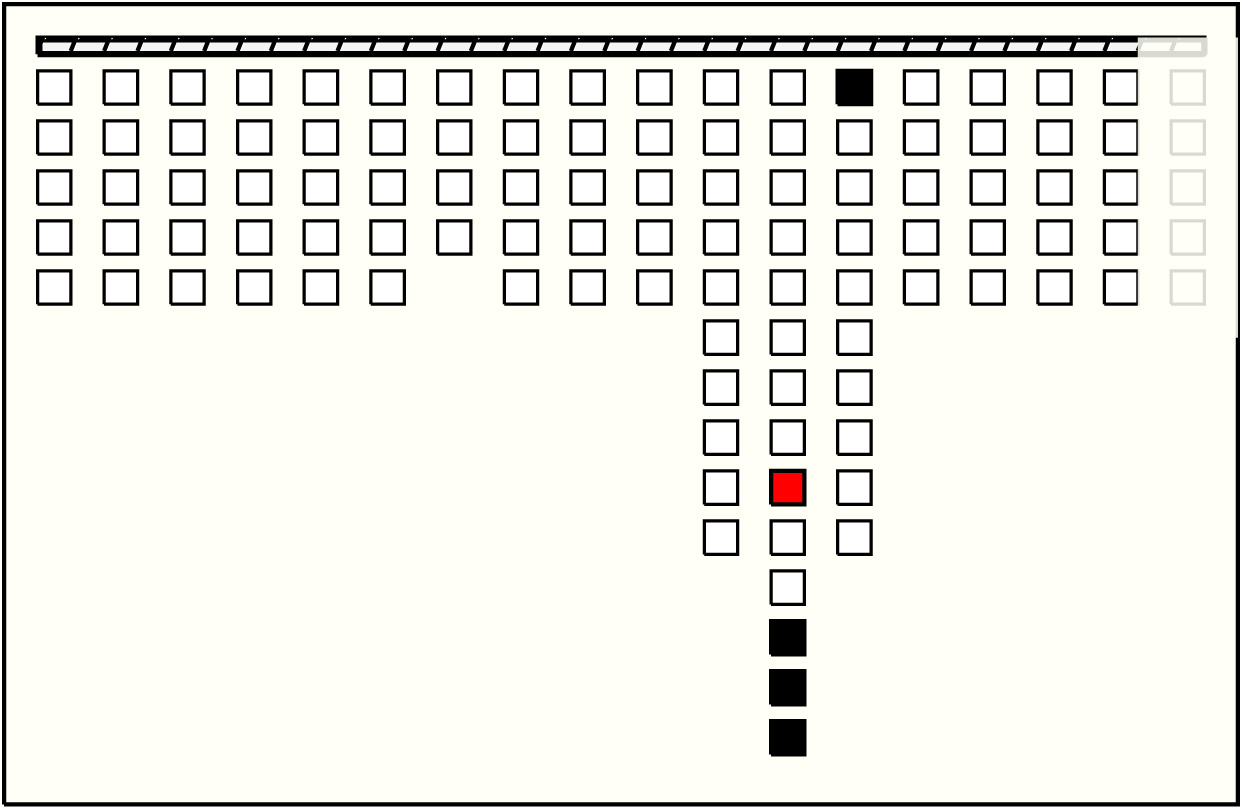

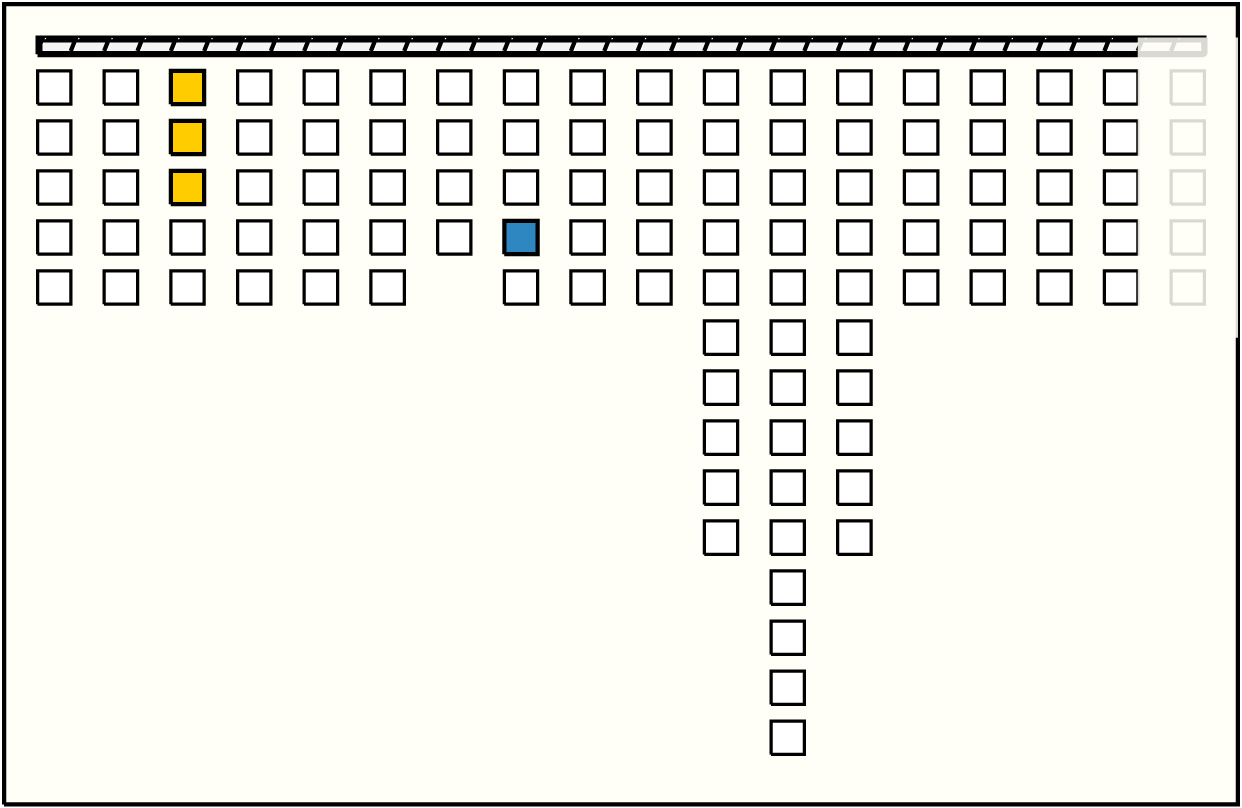

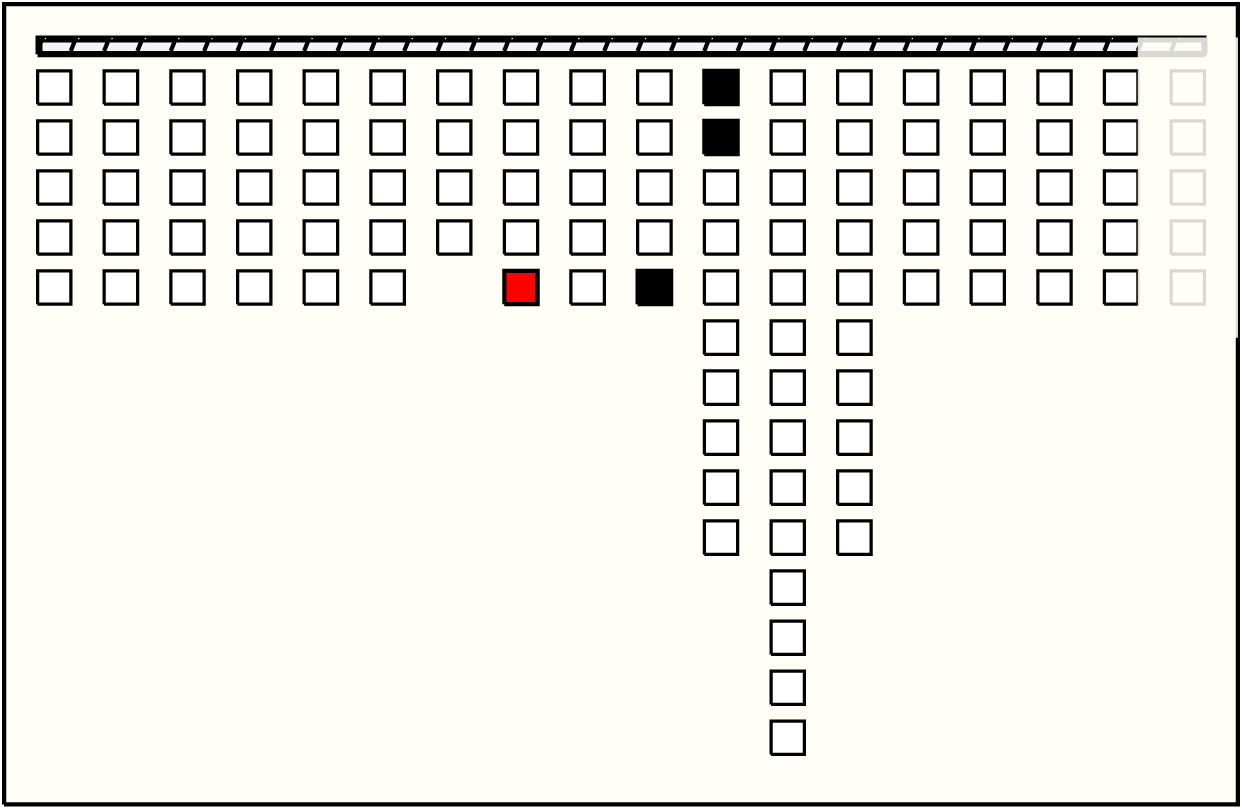

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p2s2 : 18YB | 18 | 4 | ❽g11p7: 1W + g11p8: 8YB + g11p9: 1W + ∞g11p10: 8YB∞ | |
| 2 |  | g8p3s2 : 22YB | 22 | 4 | ∞g13p5: 6W + g13p6: 6YB + g13p7: 1W + ∞g13p8: 9YB | |
| 3 |  | g8p4s2 : 12YB | 12 | 3 | ∞g10p5: 2YB:LB∞ + g11p1: 1W + ∞g11p2: 9YB∞ | |
| 4 |  | g8p5s3 : 12YB | 12 | 3 | ∞g10p5: 2YB:LB∞ + g11p1: 1W + ∞g11p2: 9YB∞ | |
| 5 |  | g12p3s1 : 11YB | 11 | 4 | ❽g12p12: 3YB + g12p13: 1W + g12p14: 4YB + g13p1: 3W❽ | |
| 6 |  | g12p6s1 : 11YB | 11 | 4 | ❽g12p12: 3YB + g12p13: 1W + g12p14: 4YB + g13p1: 3W❽ | |
| 7 |  | g12p9s1 : 11YB | 11 | 4 | ❽g12p12: 3YB + g12p13: 1W + g12p14: 4YB + g13p1: 3W❽ | |
| 8 |  | g12p14s1 : 11YB | 11 | 4 | ❽g13p2: 1YB + g13p3: 3W + g13p4: 1YB + ∞g13p5: 6W |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p2s2 : 18YB | 18 | 5 | g1p4: 3YB∞ + g1p5: 1YB + g2p1: 5YB + g2p2: 4YB + g2p3: 5YB | |
| 2 |  | g8p3s2 : 22YB | 22 | 6 | ∞g2p1: 5YB + g2p2: 4YB + g2p3: 5YB + g2p4: 2YB + g2p5: 2YB + g3p1: 4YB | |
| 3 |  | g8p4s2 : 12YB | 12 | 3 | g3p1: 4YB + g3p2: 4YB + g3p3: 4YB | |
| 4 |  | g8p5s3 : 12YB | 12 | 3 | g3p1: 4YB + g3p2: 4YB + g3p3: 4YB | |
| 5 |  | g12p3s1 : 11YB | 11 | 3 | g1p3: 7YB + g1p4: 3YB + g1p5: 1YB❽ | |
| 6 |  | g12p6s1 : 11YB | 11 | 3 | g1p3: 7YB + g1p4: 3YB + g1p5: 1YB❽ | |
| 7 |  | g12p9s1 : 11YB | 11 | 3 | g1p3: 7YB + g1p4: 3YB + g1p5: 1YB❽ | |
| 8 |  | g12p14s1 : 11YB | 11 | 3 | g1p3: 7YB + g1p4: 3YB + g1p5: 1YB❽ |
