KH0198/AS181, UR236 - Subsidiary Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |

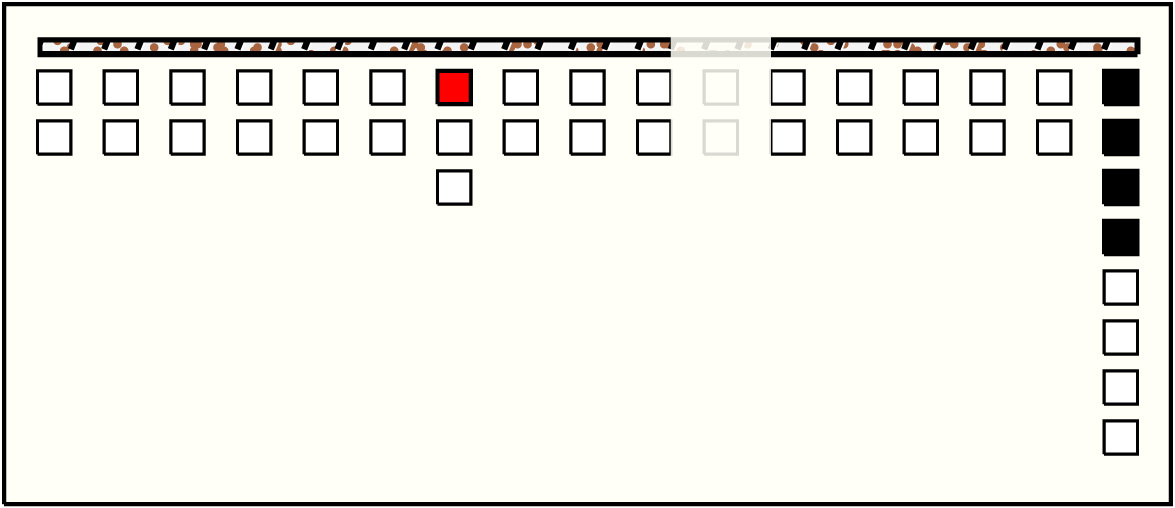

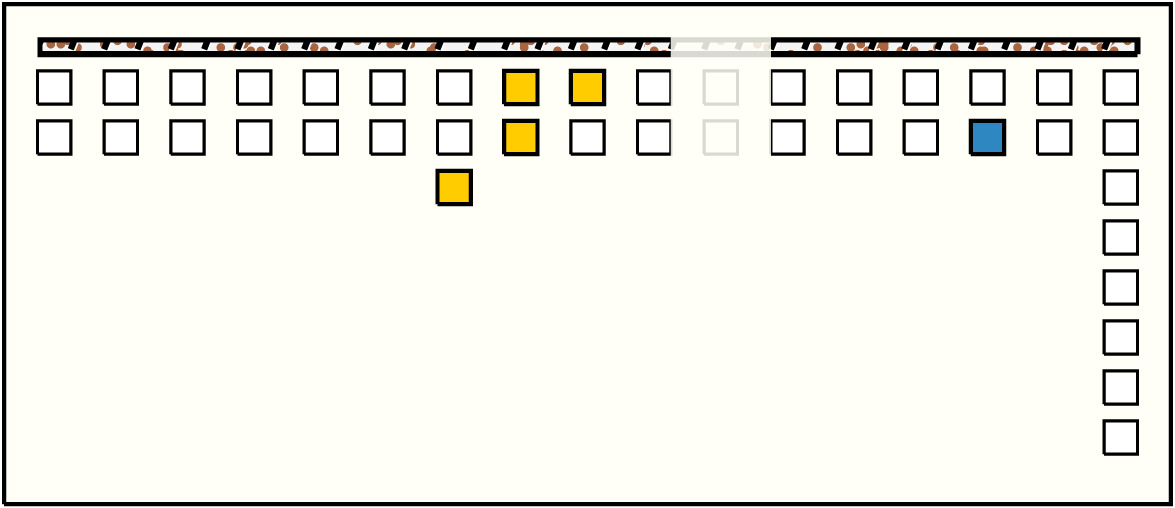

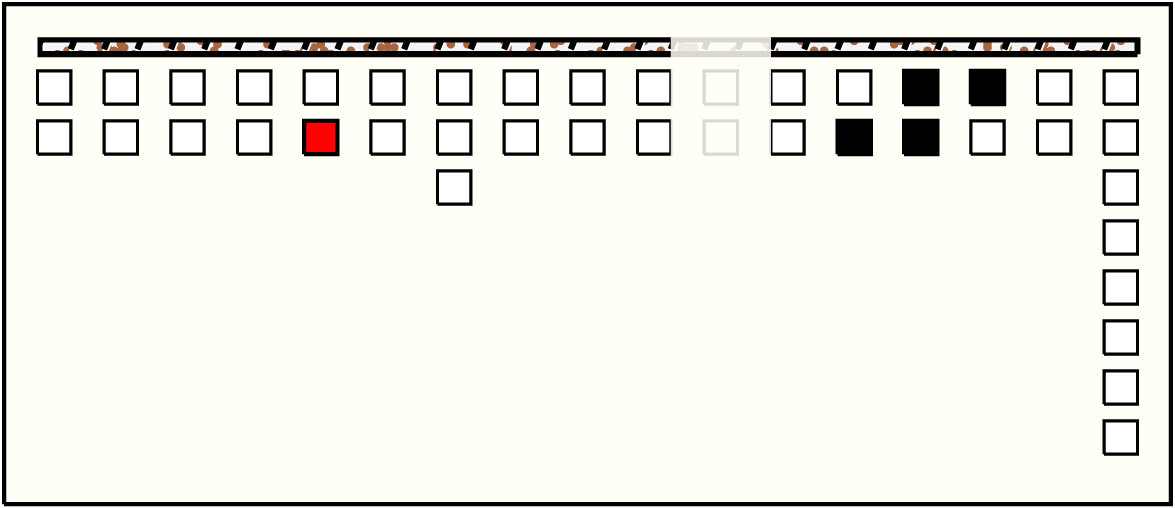

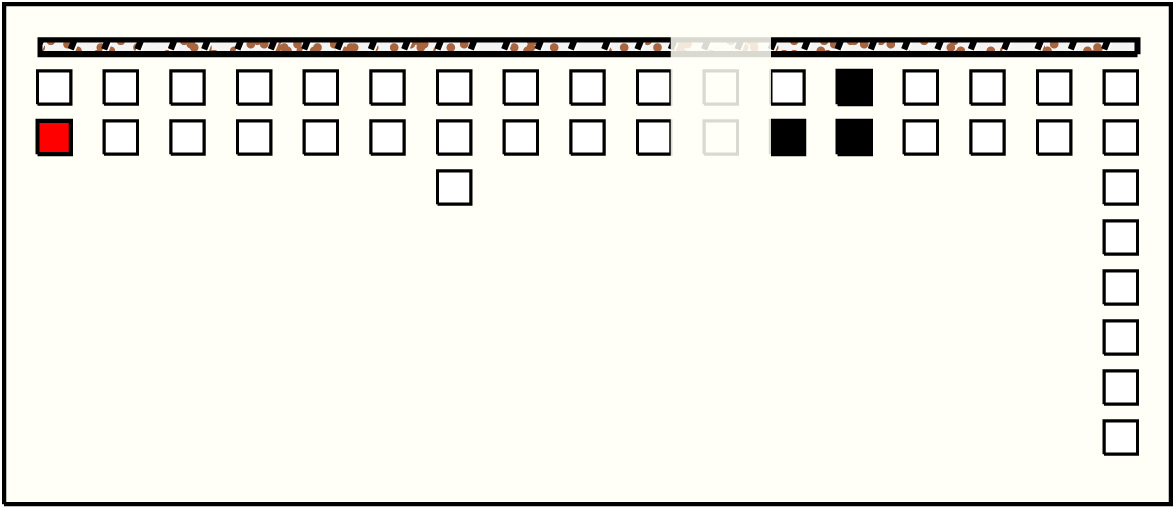

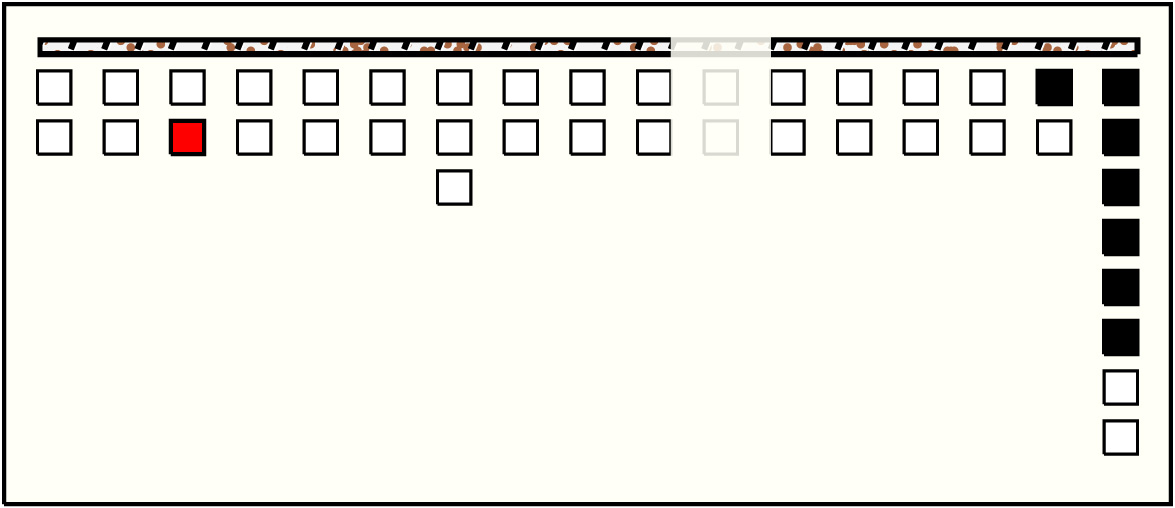

Sum Map - Click on image to view larger
 |

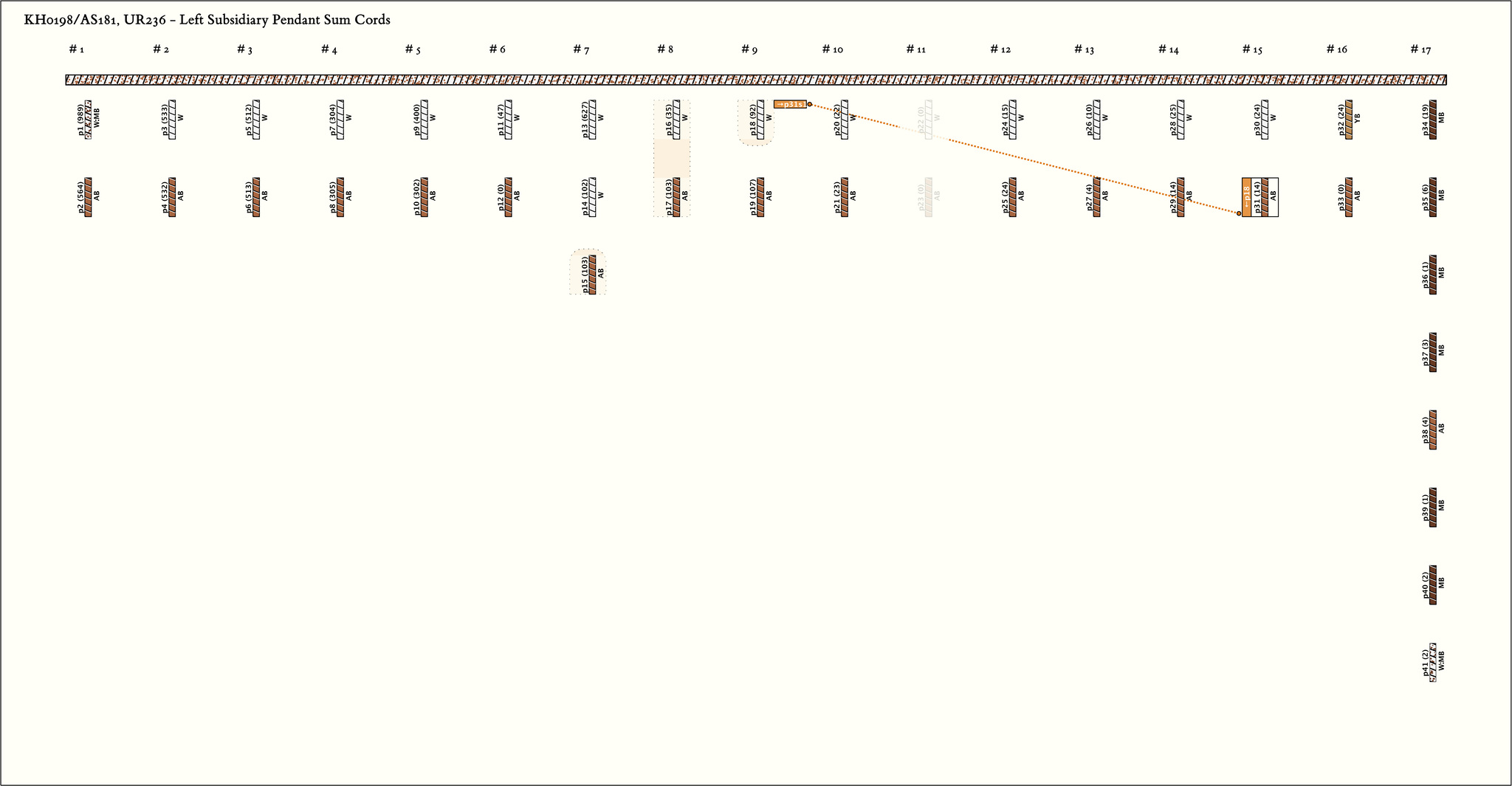

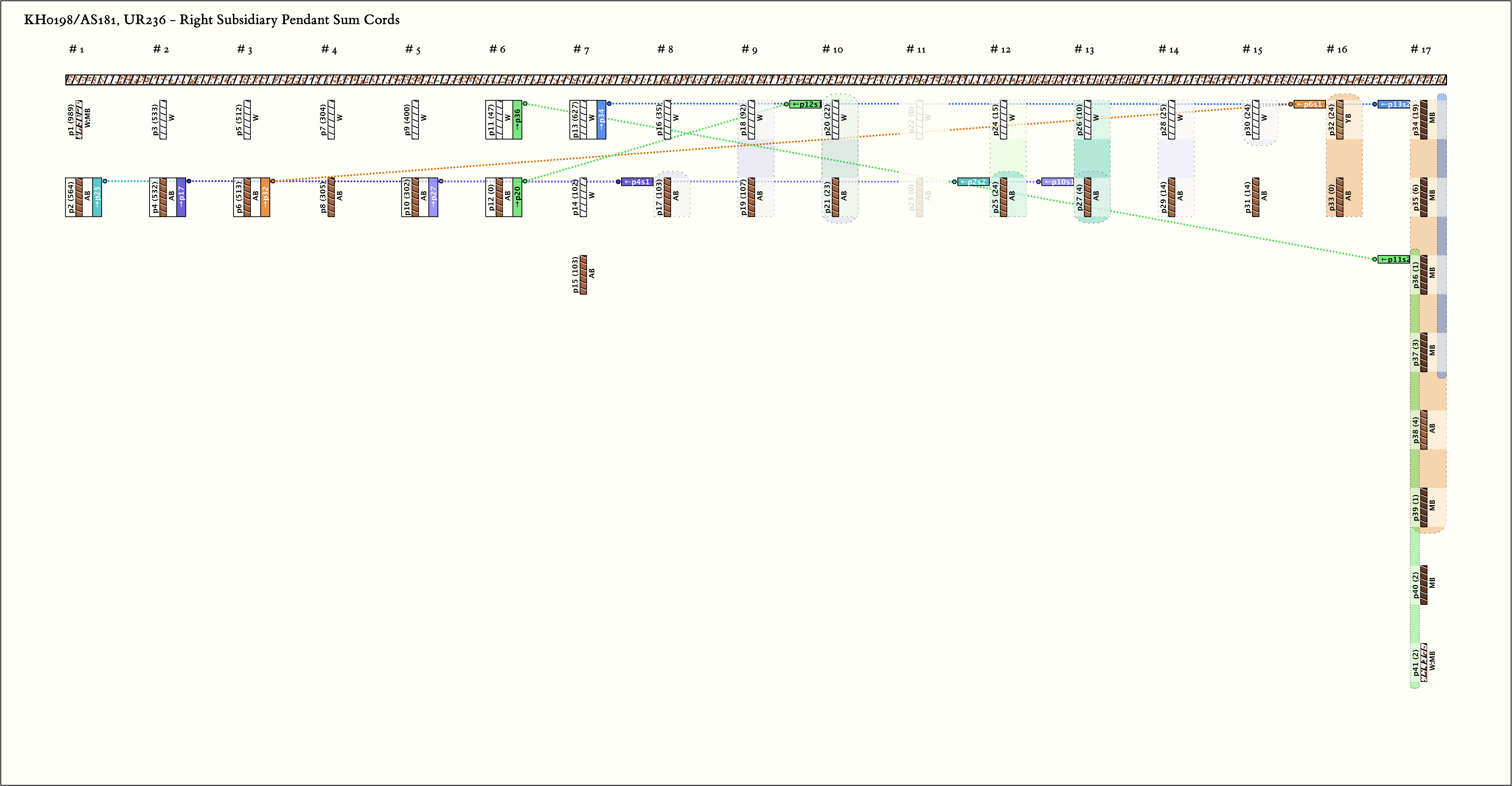

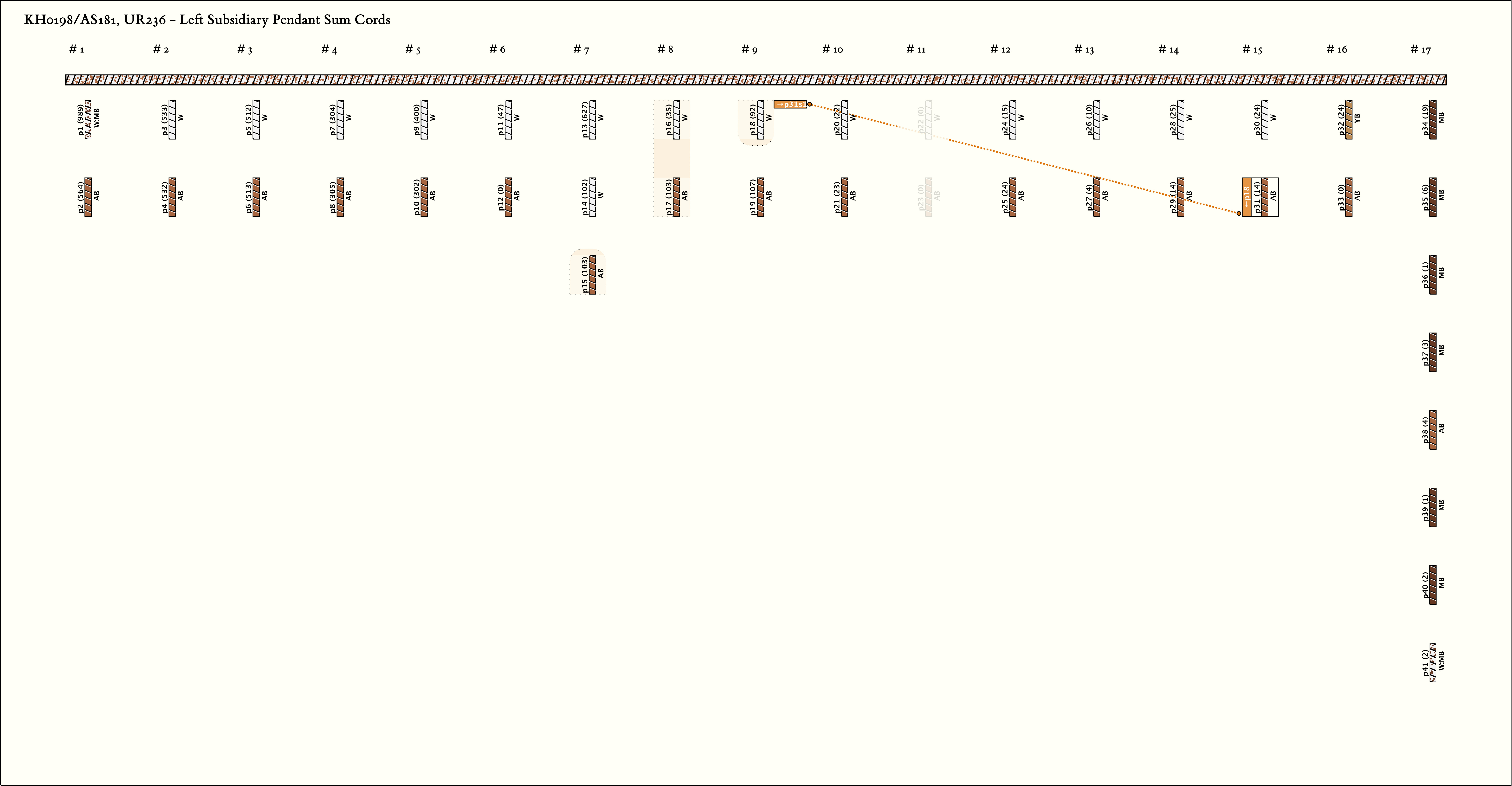

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p2s2 : 38MB | 38 | 3 | g12p2: 24AB∞ + g13p1: 10W + ∞g13p2: 4AB∞ | |
| 2 |  | g2p2s1 : 347W:MB | 347 | 5 | ∞g8p2: 103AB∞ + g9p1: 92W + g9p2: 107AB + g10p1: 22W + g10p2: 23AB | |
| 3 |  | g3p2s1 : 58W:RB | 58 | 7 | g16p1: 24YB + g17p1: 19MB + g17p2: 6MB + g17p3: 1MB + g17p4: 3MB + g17p5: 4AB + g17p6: 1MB❽ | |
| 4 |  | g5p2s1 : 67W:MB | 67 | 4 | ∞g13p2: 4AB∞ + g14p1: 25W + g14p2: 14AB + g15p1: 24W❽ | |
| 5 |  | g6p2s1 : 98W:MB | 98 | 6 | g10p1: 22W + g10p2: 23AB + g12p1: 15W + g12p2: 24AB + g13p1: 10W + ∞g13p2: 4AB∞ | |
| 6 |  | g6p1s2 : 13W | 13 | 6 | ❽g17p3: 1MB + g17p4: 3MB + g17p5: 4AB + g17p6: 1MB + g17p7: 2MB + g17p8: 2W:MB | |
| 7 |  | g7p1s2 : 29MB | 29 | 4 | g17p1: 19MB + g17p2: 6MB + g17p3: 1MB + ∞g17p4: 3MB |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g15p2s1 : 333AB:MB | 333 | 4 | ∞g7p3: 103AB∞ + g8p1: 35W + g8p2: 103AB + g9p1: 92W❽ |
