KH0278/UR048 - Indexed Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

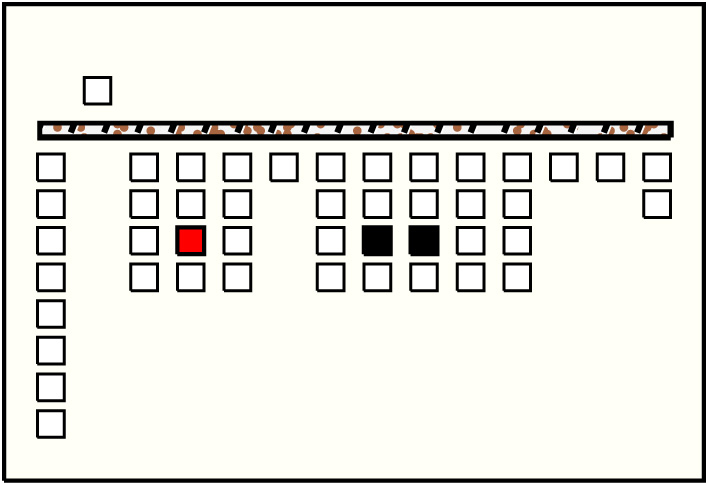

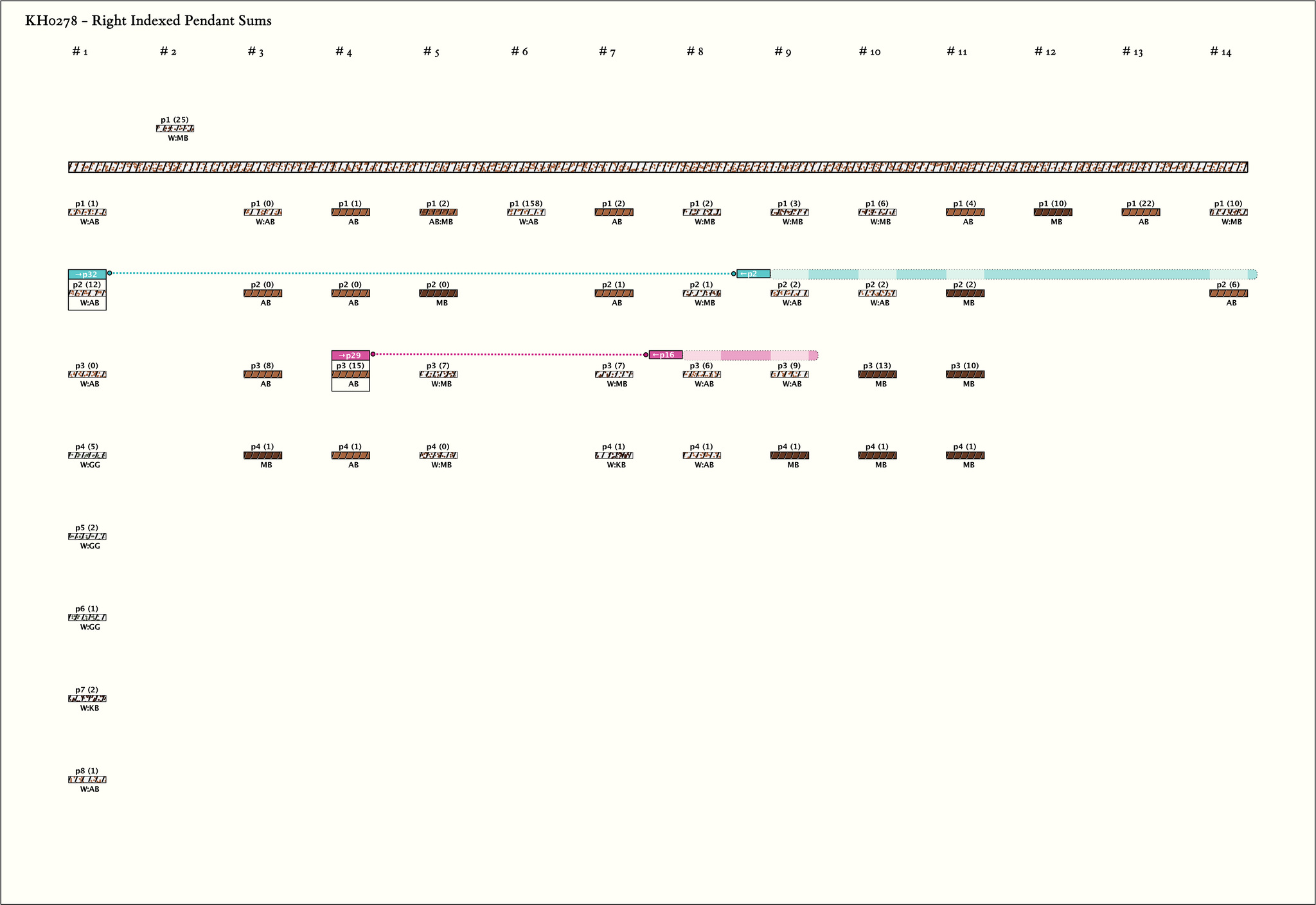

Right Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 4, (Min, Mean, Max) Sum Values = (12, 14, 15)
Click on Image to View Larger

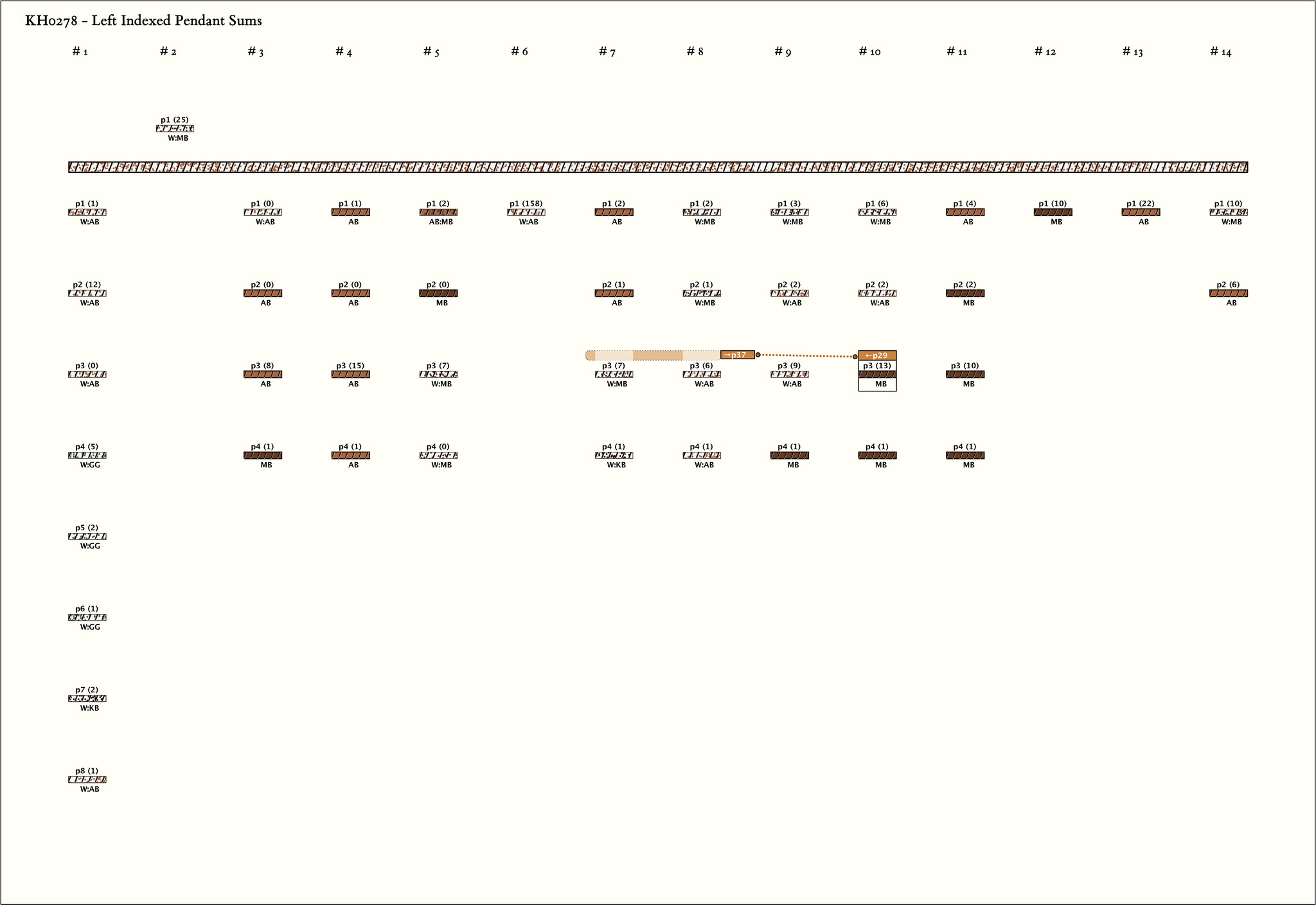

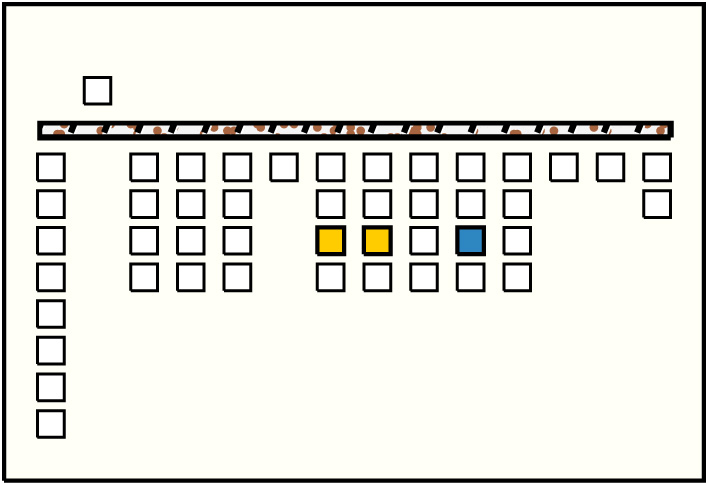

Left Handed Sums with Figure-8-Knots: # Sums = 1, Max # Summands = 2, (Min, Mean, Max) Sum Values = (13, 13, 13)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p2 : 12W:AB | 12 | 4 | g9p2: 2W:AB + g10p2: 2W:AB + g11p2: 2MB + g14p2: 6AB | |
| 2 |  | g4p3 : 15AB | 15 | 2 | ∞g8p3: 6W:AB∞ + g9p3: 9W:AB∞ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g10p3 : 13MB | 13 | 2 | ∞g7p3: 7W:MB∞ + ∞g8p3: 6W:AB∞ |
Khipu Notes:
1. Pendant 21 has its 6 subsidiaries attached through the doubled end. The string is tied in a single knot about the primary cord. Measurements are taken from the doubled end up to the knotted end. See Urton's notes for picture.
