KH0183/UR1166, AS166 - Pendant Pendant Sums
Drawings:

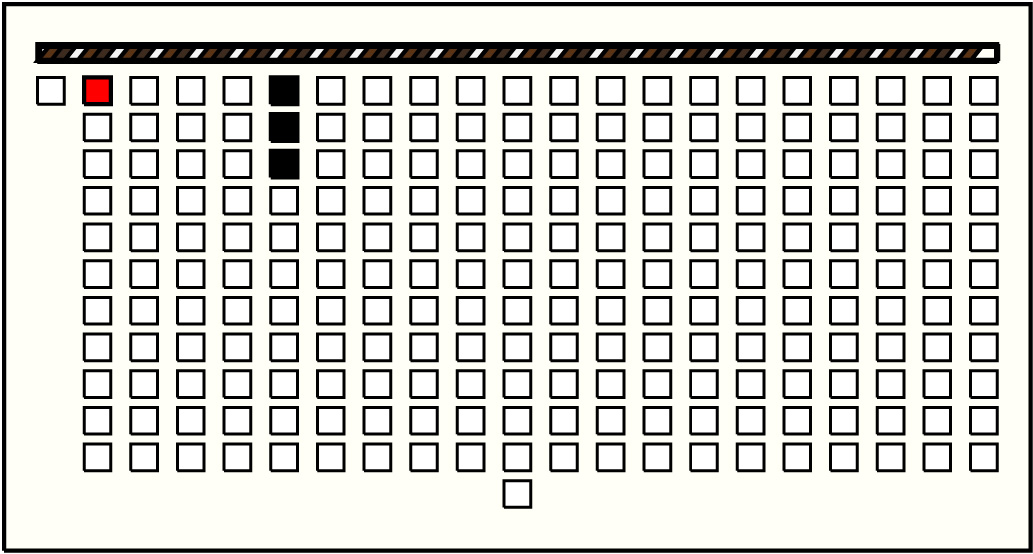

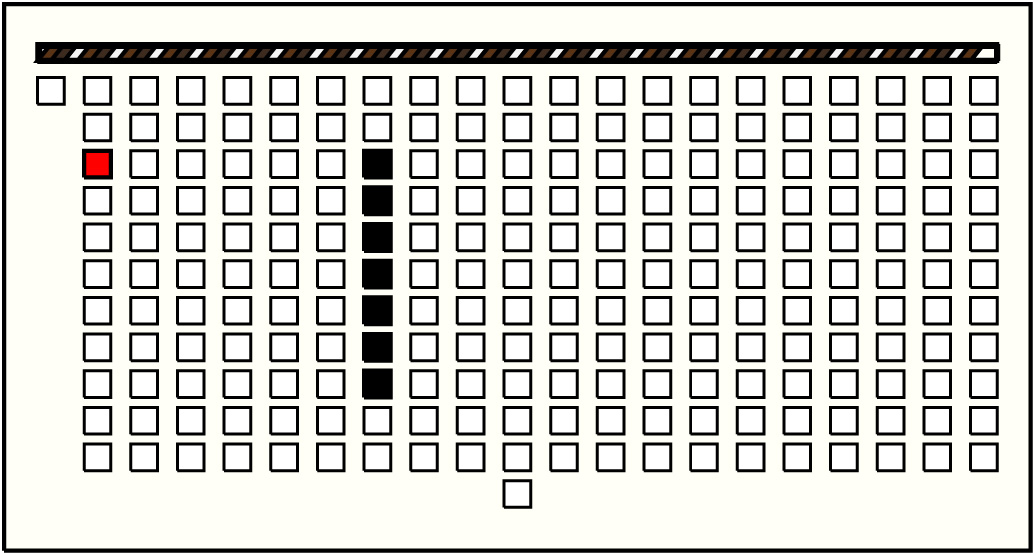

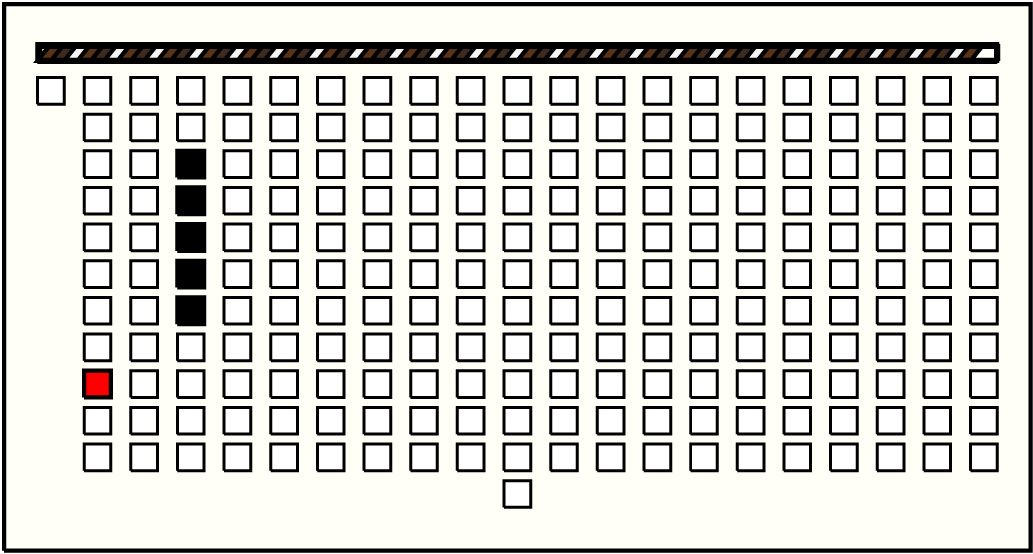

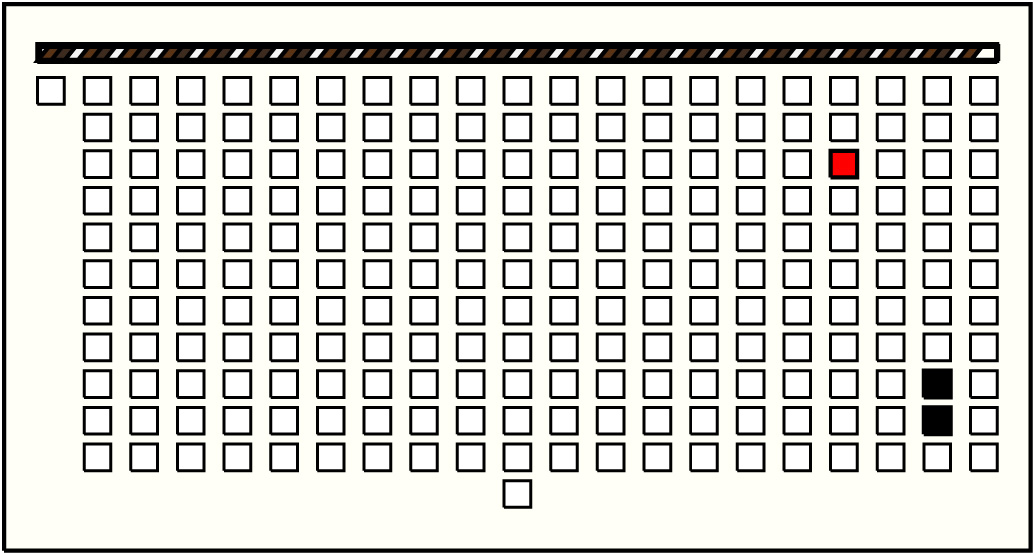

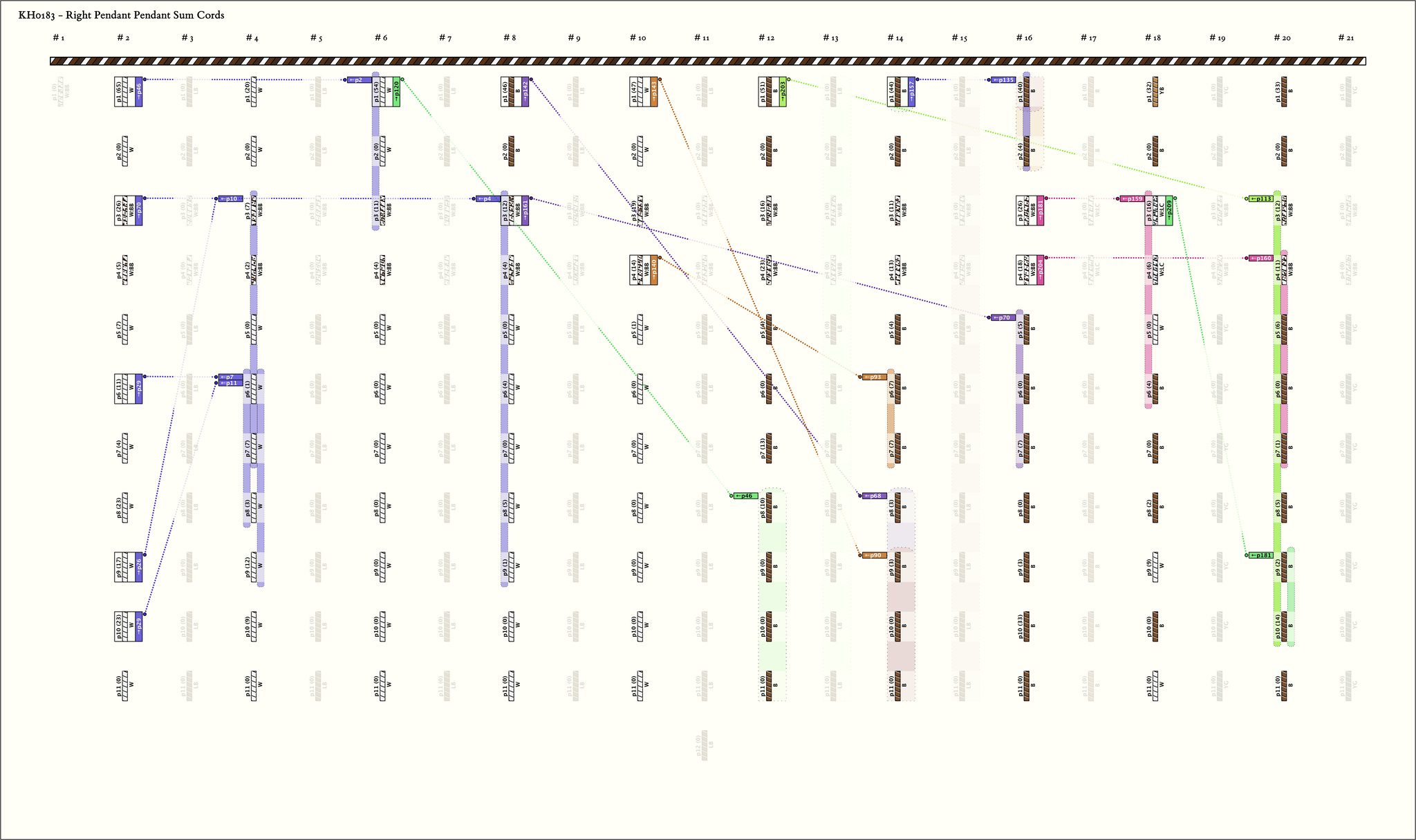

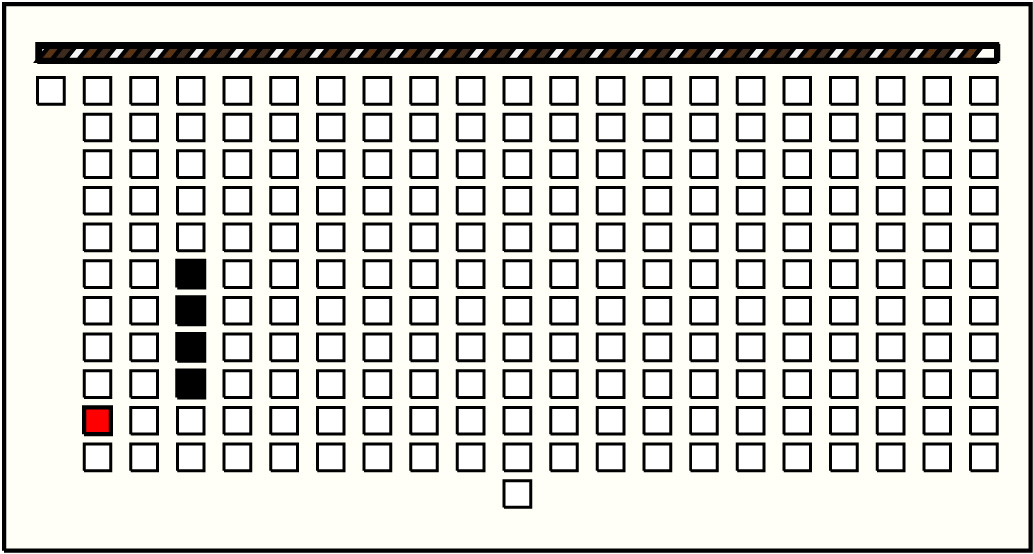

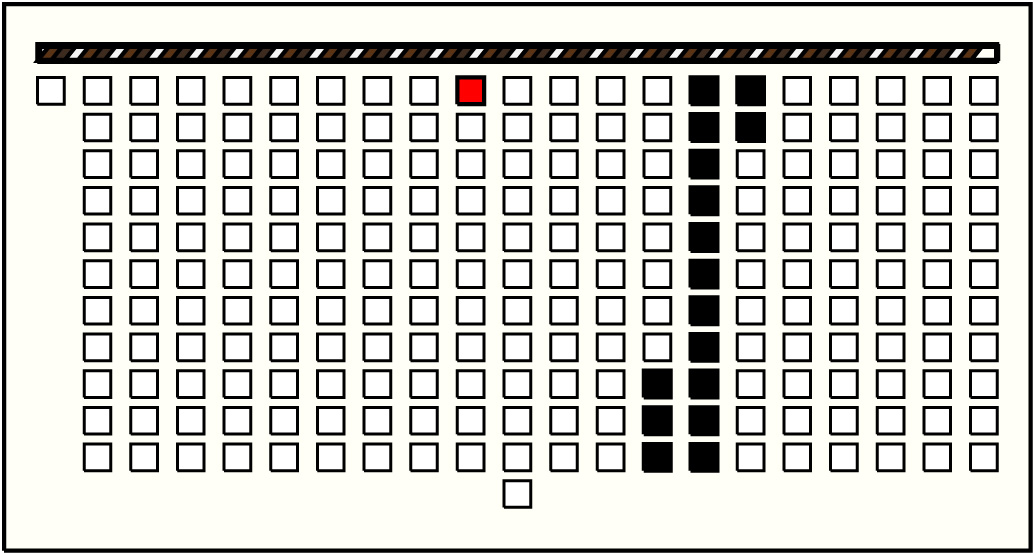

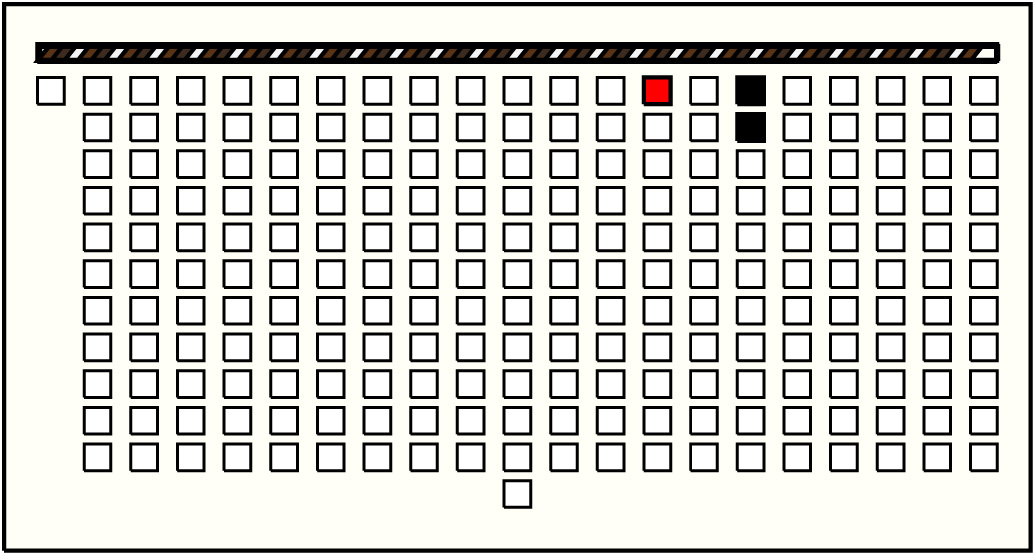

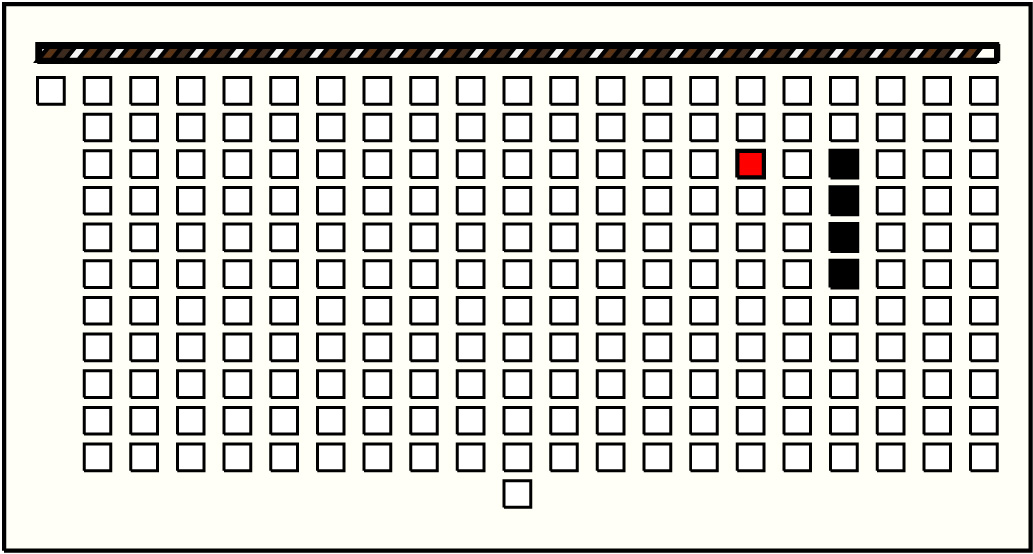

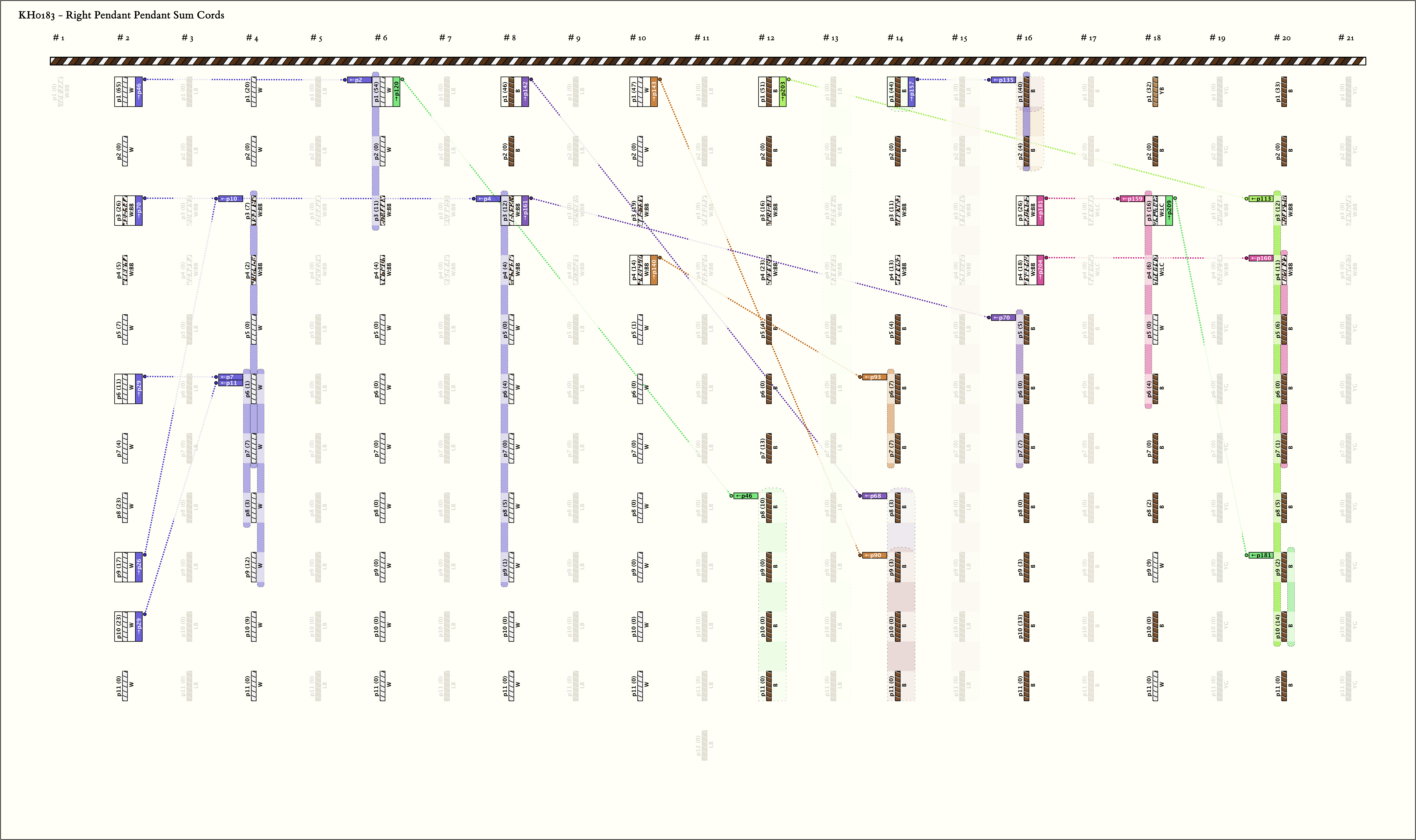

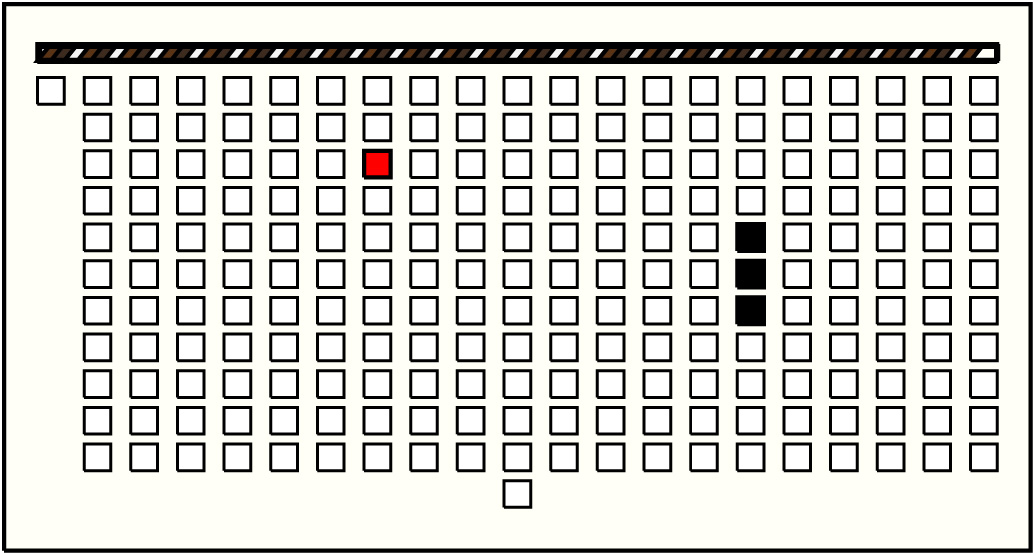

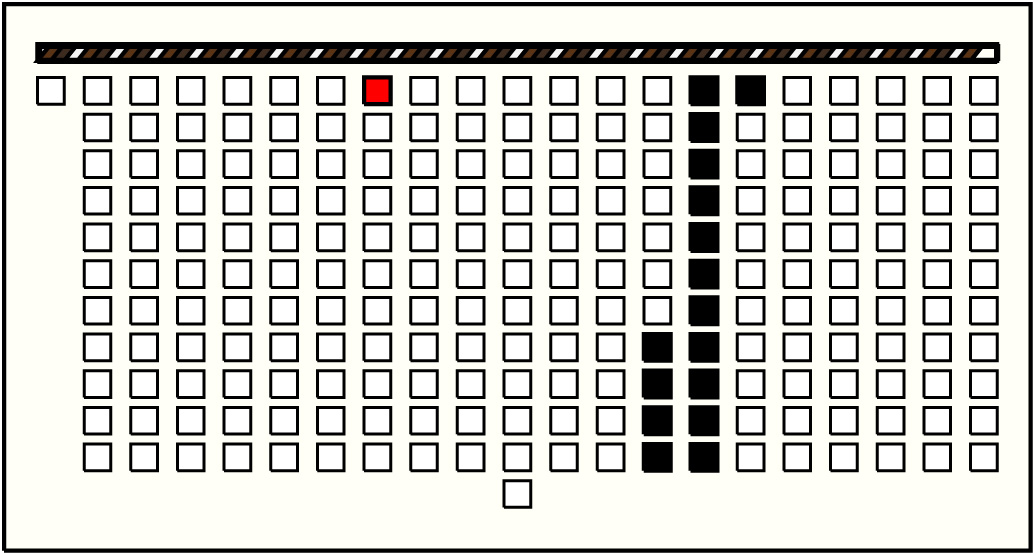

Right Handed Sums: # Sums = 15, Max # Summands = 16, (Min, Mean, Max) Sum Values = (11, 31, 65)
Click on Image to View Larger

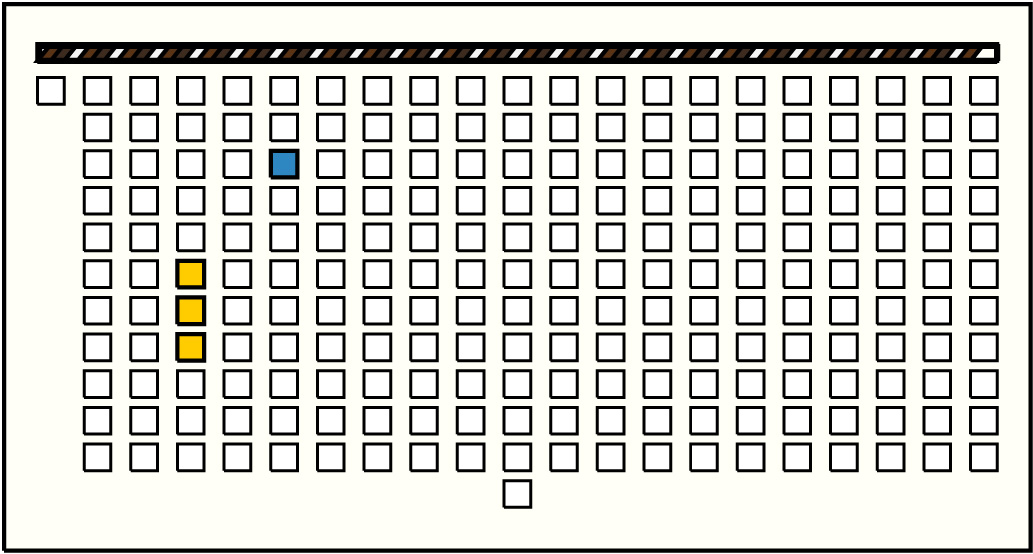

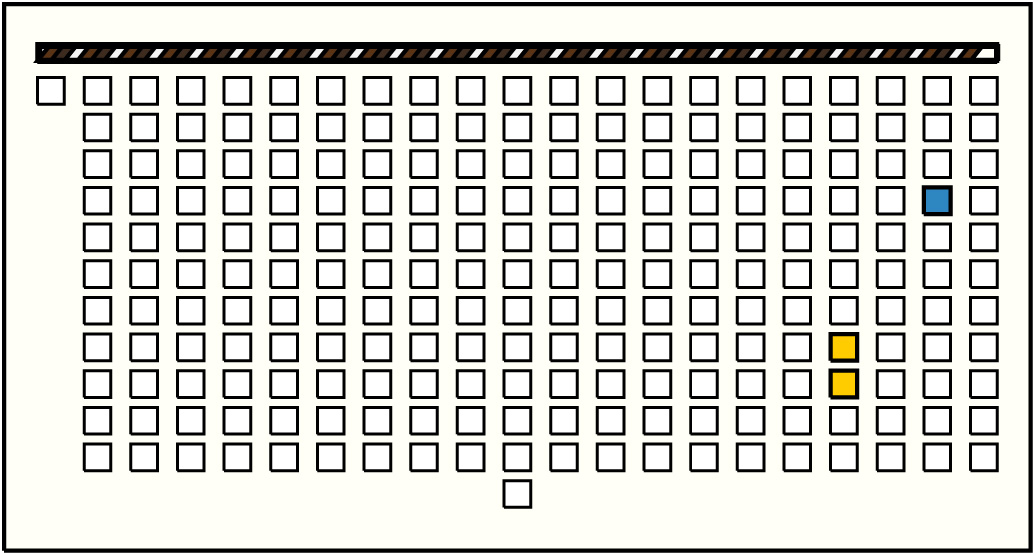

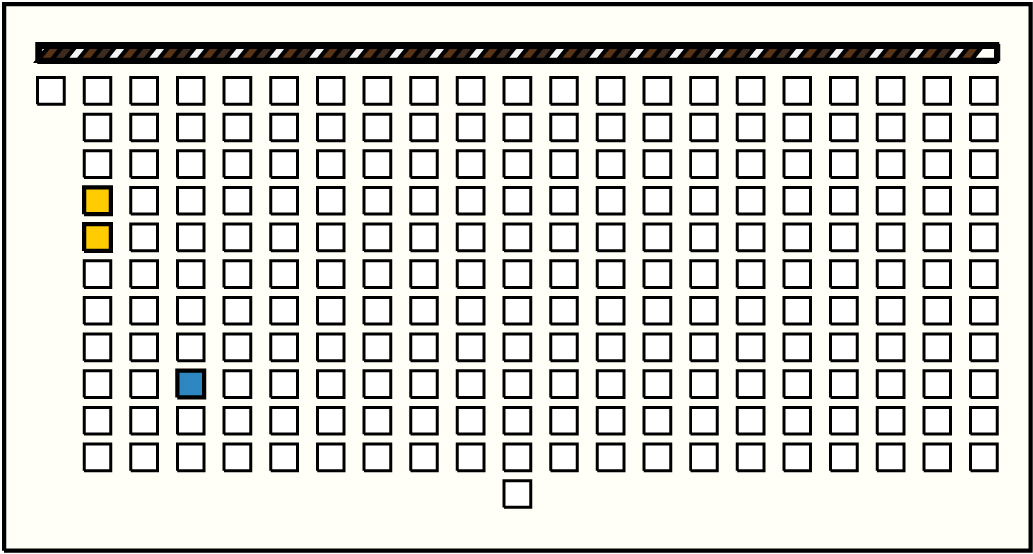

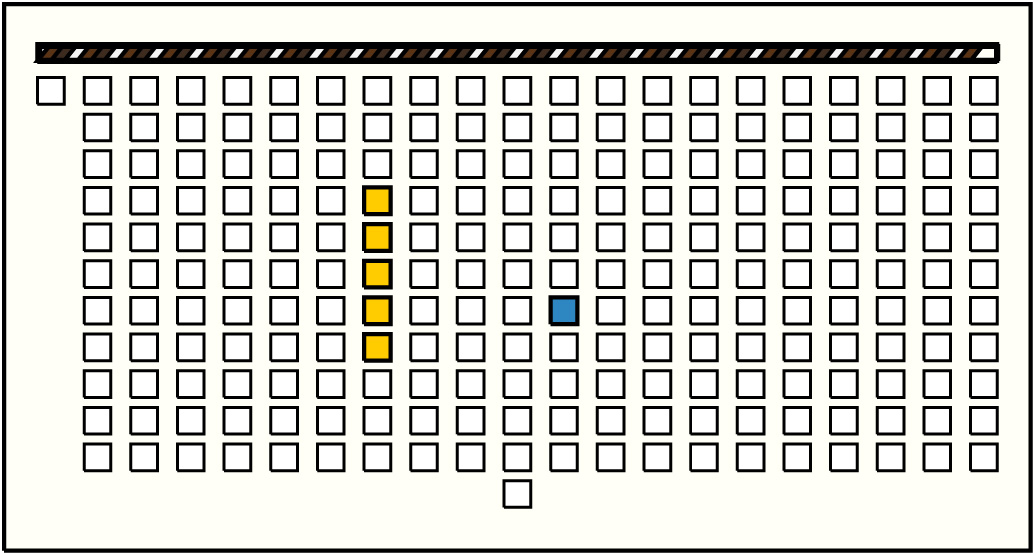

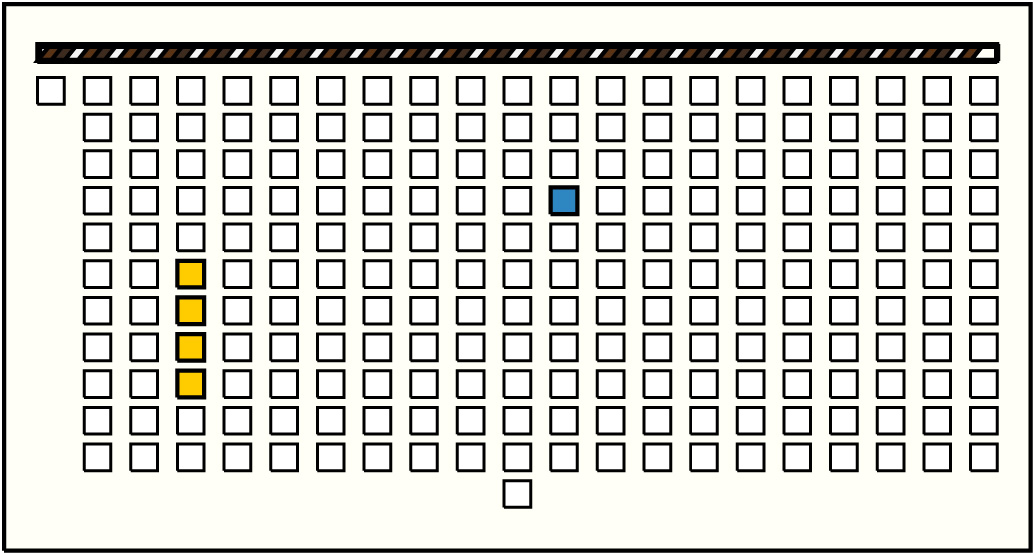

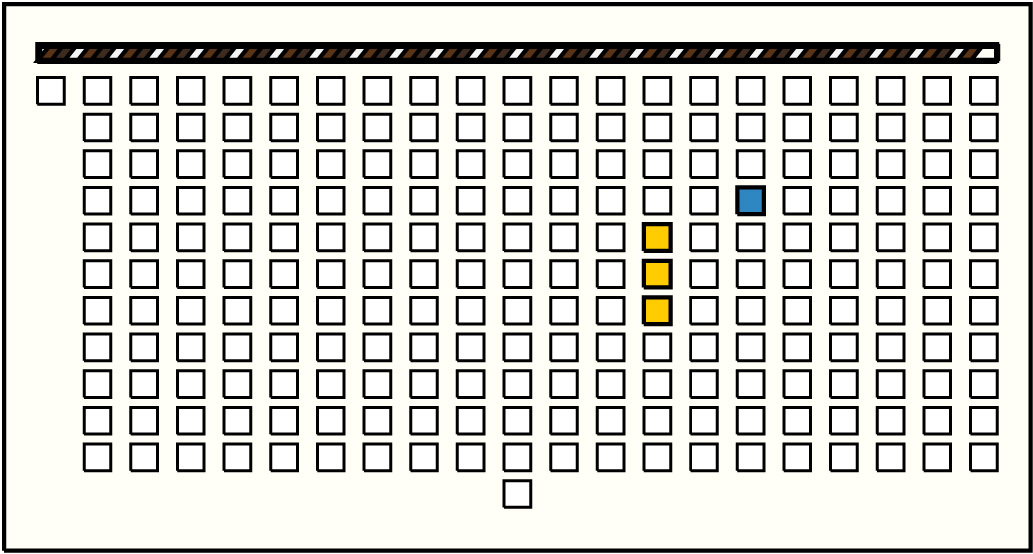

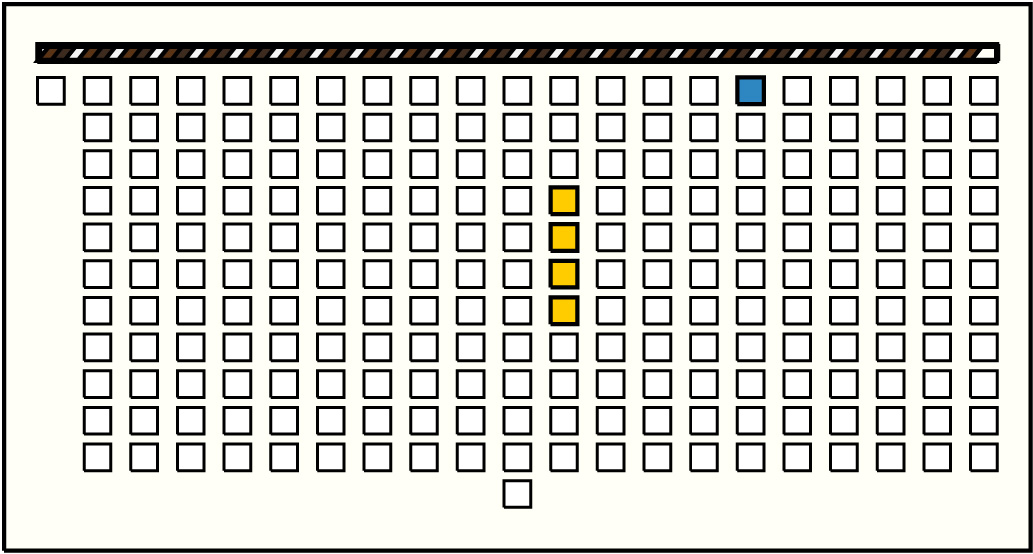

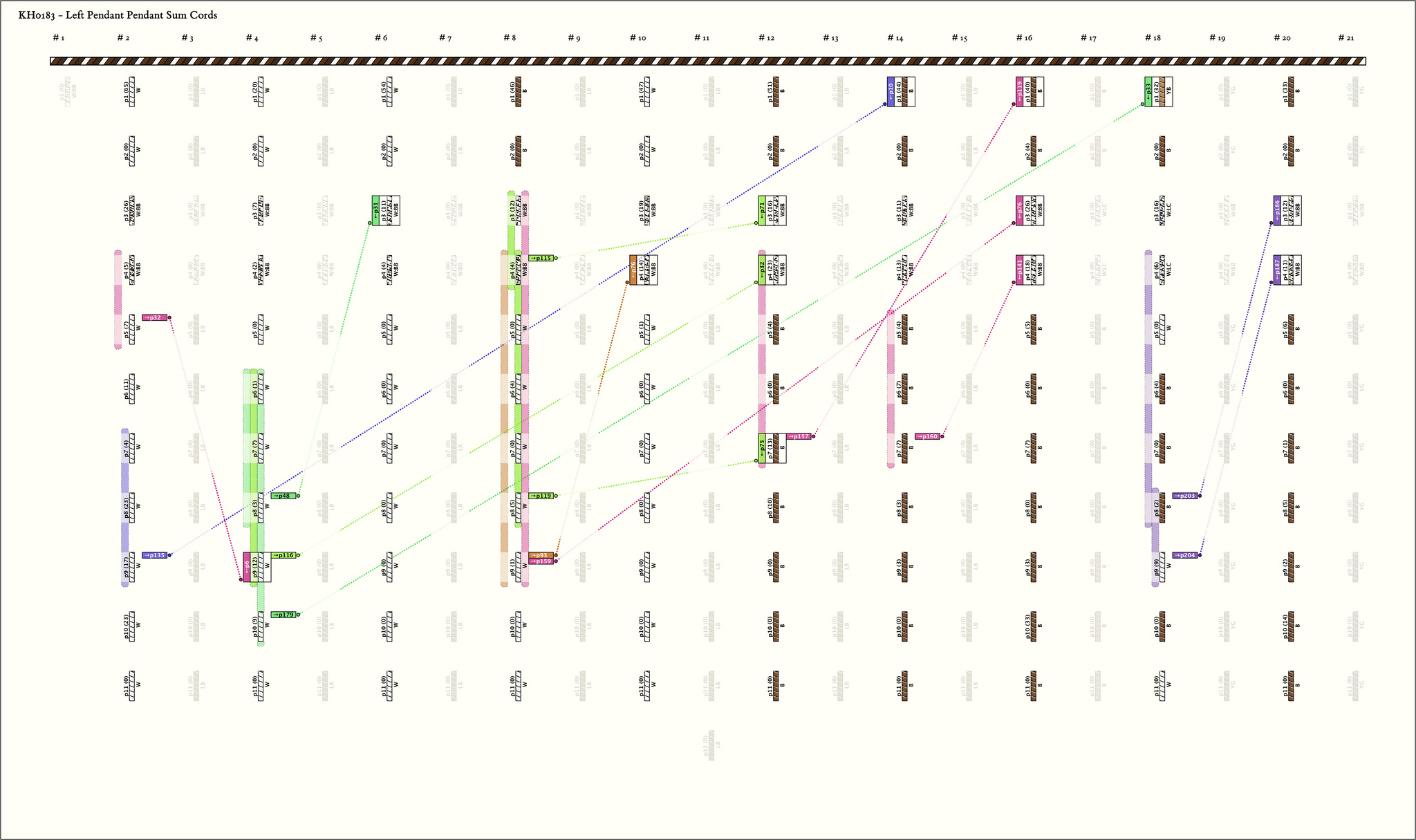

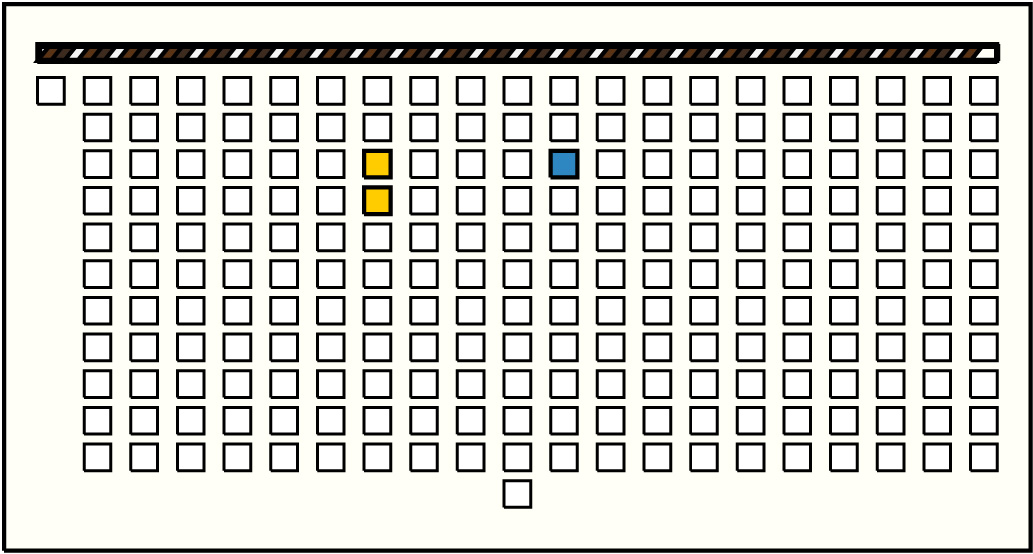

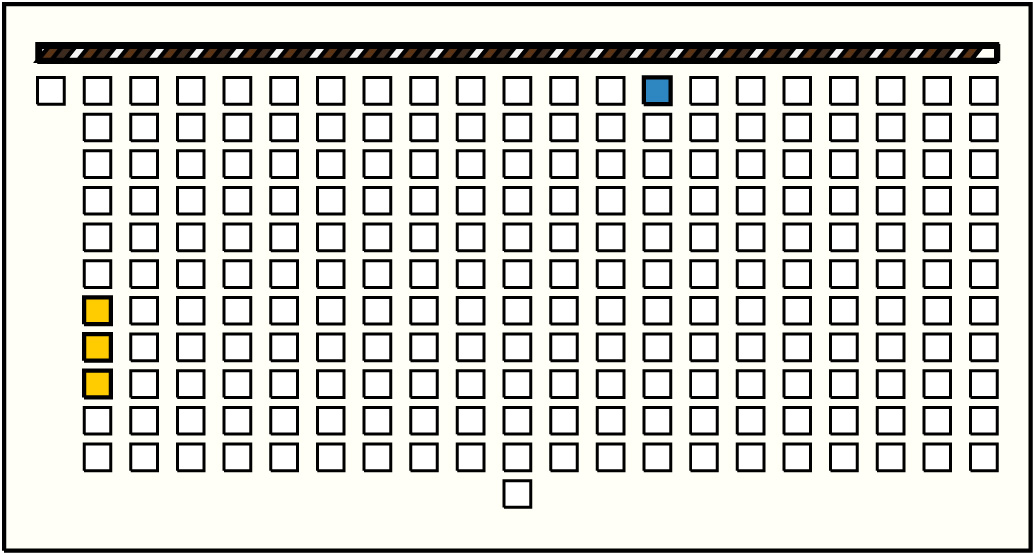

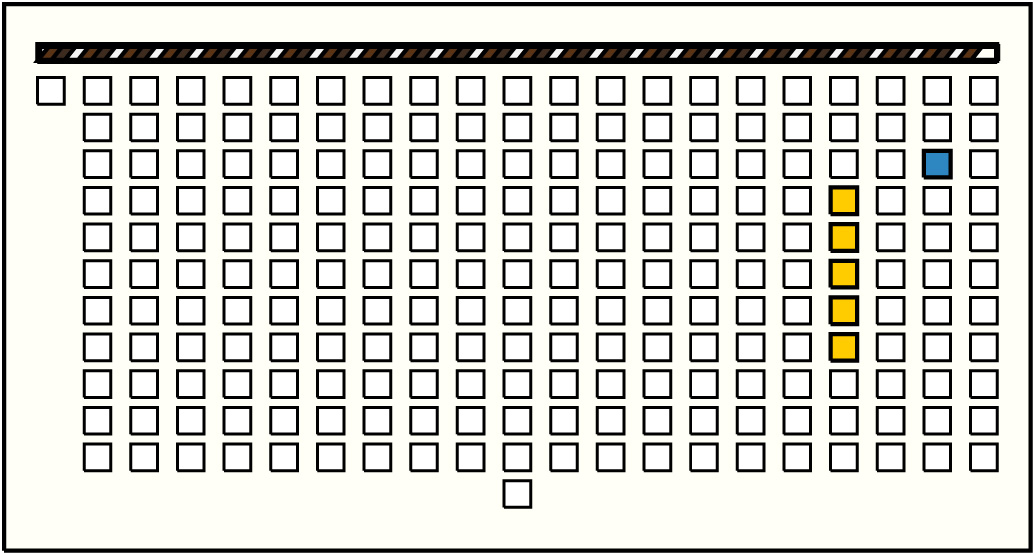

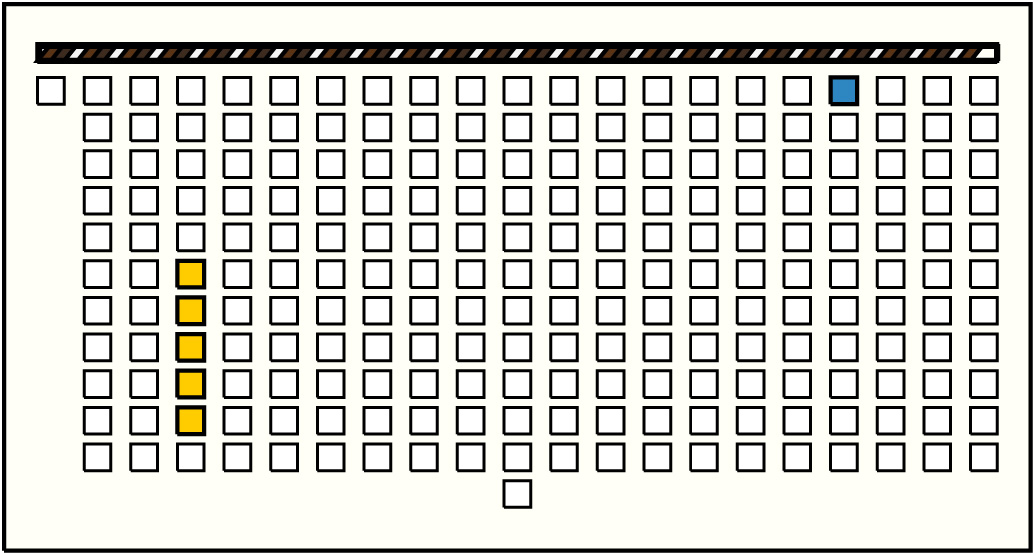

Left Handed Sums: # Sums = 13, Max # Summands = 7, (Min, Mean, Max) Sum Values = (11, 21, 44)
Click on Image to View Larger
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

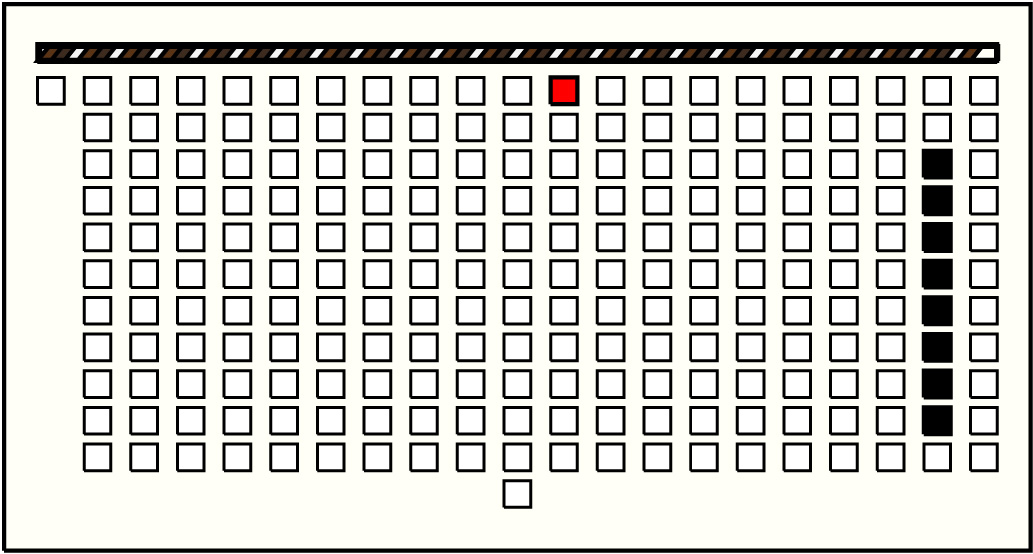

| 1 |  | g2p1 : 65W | 65 | 3 | g6p1: 54W + g6p2: 0W + g6p3: 11W:BB | |
| 2 |  | g2p3 : 26W:BB | 26 | 7 | g8p3: 12W:BB + g8p4: 4W:BB + g8p5: 0W + g8p6: 4W + g8p7: 0W + g8p8: 5W + g8p9: 1W | |

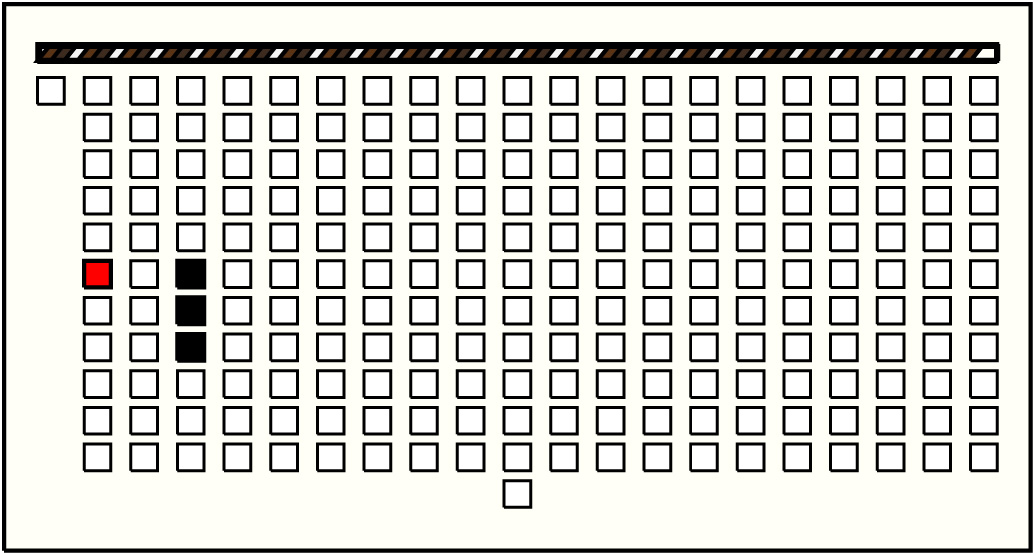

| 3 |  | g2p6 : 11W | 11 | 3 | g4p6: 1W + g4p7: 7W + g4p8: 3W | |
| 4 |  | g2p9 : 17W | 17 | 5 | g4p3: 7W:BB + g4p4: 2W:BB + g4p5: 0W + g4p6: 1W + g4p7: 7W | |
| 5 |  | g2p10 : 23W | 23 | 4 | g4p6: 1W + g4p7: 7W + g4p8: 3W + g4p9: 12W | |

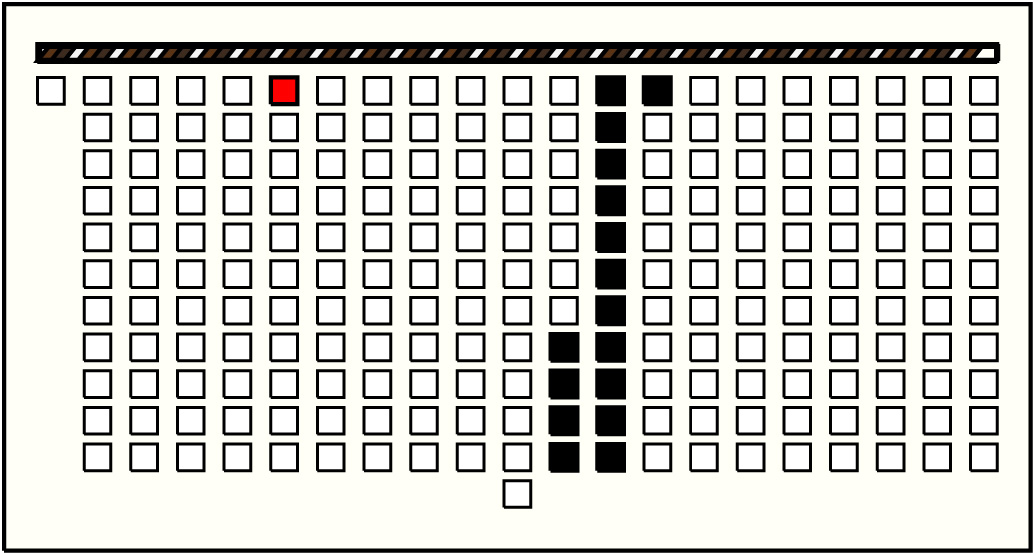

| 6 |  | g6p1 : 54W | 54 | 16 | g12p8: 10B + g12p9: 0B + g12p10: 0B + g12p11: 0B + g13p1: 0LB + g13p2: 0LB + g13p3: 0W:BB + g13p4: 0W:BB + g13p5: 0LB + g13p6: 0LB + g13p7: 0LB + g13p8: 0LB + g13p9: 0LB + g13p10: 0LB + g13p11: 0LB + g14p1: 44B | |
| 7 |  | g8p1 : 46B | 46 | 16 | g14p8: 3B + g14p9: 3B + g14p10: 0B + g14p11: 0B + g15p1: 0LB + g15p2: 0LB + g15p3: 0W:BB + g15p4: 0W:BB + g15p5: 0LB + g15p6: 0LB + g15p7: 0LB + g15p8: 0LB + g15p9: 0LB + g15p10: 0LB + g15p11: 0LB + g16p1: 40B | |
| 8 |  | g8p3 : 12W:BB | 12 | 3 | g16p5: 5B + g16p6: 0B + g16p7: 7B | |
| 9 |  | g10p1 : 47W | 47 | 16 | g14p9: 3B + g14p10: 0B + g14p11: 0B + g15p1: 0LB + g15p2: 0LB + g15p3: 0W:BB + g15p4: 0W:BB + g15p5: 0LB + g15p6: 0LB + g15p7: 0LB + g15p8: 0LB + g15p9: 0LB + g15p10: 0LB + g15p11: 0LB + g16p1: 40B + g16p2: 4B | |
| 10 |  | g10p4 : 14W:BB | 14 | 2 | g14p6: 7B + g14p7: 7B | |
| 11 |  | g12p1 : 51B | 51 | 8 | g20p3: 12W:BB + g20p4: 11W:BB + g20p5: 6B + g20p6: 0B + g20p7: 1B + g20p8: 5B + g20p9: 2B + g20p10: 14B | |
| 12 |  | g14p1 : 44B | 44 | 2 | g16p1: 40B + g16p2: 4B | |

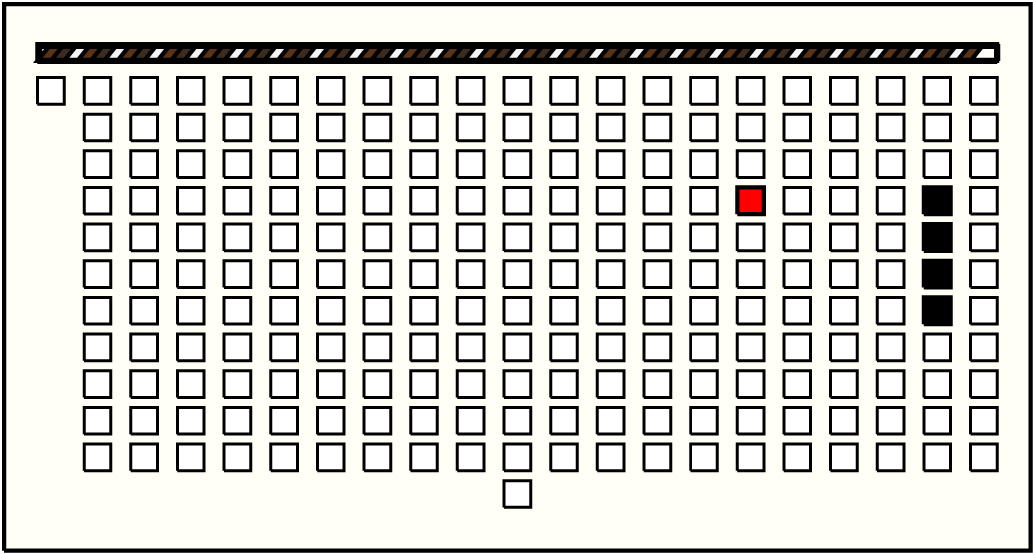

| 13 |  | g16p3 : 26W:BB | 26 | 4 | g18p3: 16W:LC + g18p4: 6W:LC + g18p5: 0W + g18p6: 4B | |
| 14 |  | g16p4 : 18W:BB | 18 | 4 | g20p4: 11W:BB + g20p5: 6B + g20p6: 0B + g20p7: 1B | |
| 15 |  | g18p3 : 16W:LC | 16 | 2 | g20p9: 2B + g20p10: 14B |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g4p9 : 12W | 12 | 2 | g2p4: 5W:BB + g2p5: 7W | |
| 2 |  | g6p3 : 11W:BB | 11 | 3 | g4p6: 1W + g4p7: 7W + g4p8: 3W | |

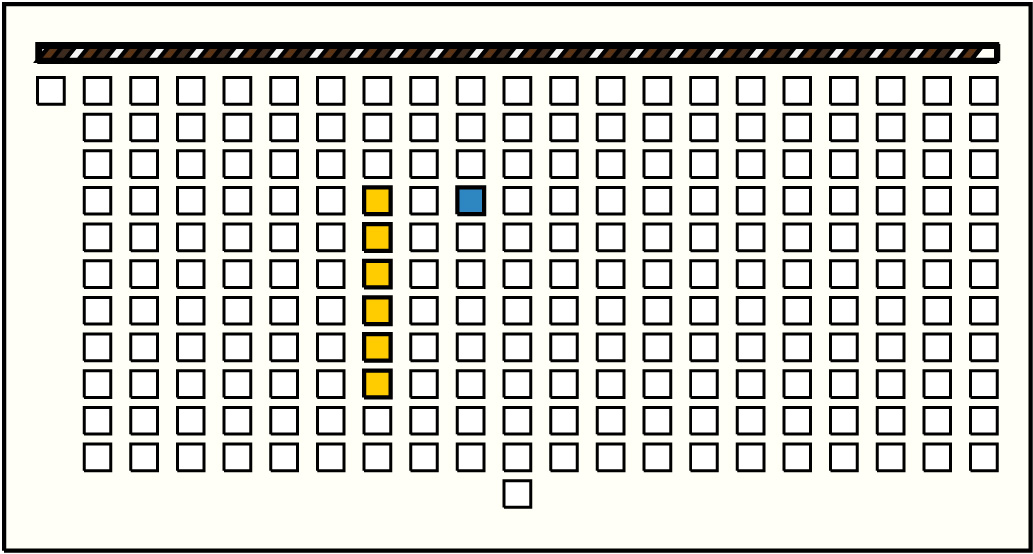

| 3 |  | g10p4 : 14W:BB | 14 | 6 | g8p4: 4W:BB + g8p5: 0W + g8p6: 4W + g8p7: 0W + g8p8: 5W + g8p9: 1W | |
| 4 |  | g12p3 : 16W:BB | 16 | 2 | g8p3: 12W:BB + g8p4: 4W:BB | |
| 5 |  | g12p4 : 23W:BB | 23 | 4 | g4p6: 1W + g4p7: 7W + g4p8: 3W + g4p9: 12W | |
| 6 |  | g12p7 : 13B | 13 | 5 | g8p4: 4W:BB + g8p5: 0W + g8p6: 4W + g8p7: 0W + g8p8: 5W | |
| 7 |  | g14p1 : 44B | 44 | 3 | g2p7: 4W + g2p8: 23W + g2p9: 17W | |
| 8 |  | g16p1 : 40B | 40 | 4 | g12p4: 23W:BB + g12p5: 4B + g12p6: 0B + g12p7: 13B | |
| 9 |  | g16p3 : 26W:BB | 26 | 7 | g8p3: 12W:BB + g8p4: 4W:BB + g8p5: 0W + g8p6: 4W + g8p7: 0W + g8p8: 5W + g8p9: 1W | |

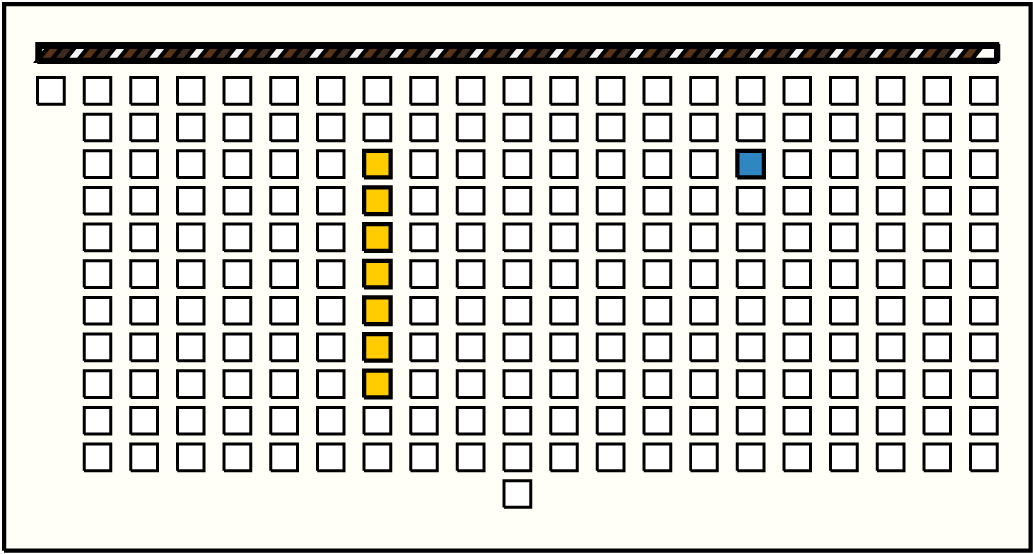

| 10 |  | g16p4 : 18W:BB | 18 | 3 | g14p5: 4B + g14p6: 7B + g14p7: 7B | |
| 11 |  | g18p1 : 32YB | 32 | 5 | g4p6: 1W + g4p7: 7W + g4p8: 3W + g4p9: 12W + g4p10: 9W | |
| 12 |  | g20p3 : 12W:BB | 12 | 5 | g18p4: 6W:LC + g18p5: 0W + g18p6: 4B + g18p7: 0B + g18p8: 2B | |
| 13 |  | g20p4 : 11W:BB | 11 | 2 | g18p8: 2B + g18p9: 9W |
Khipu Notes:
Ascher Databook Notes:
- Construction note: The twisted ends of the main cord and first cord are linked together. Cord 1 is shorter than the other pendants and bound with thread at its end. 2.Construction note: Subsidiaries attached to the first subsidiary on pendants 2, 24, 135, 157, 179, and 201 are attached in a non-standard way. They are looped around both the pendant and subsidiary to which they are connected.
- This is one of several khipus acquired by the Museum in 1907 with provenance Ica. For a list of them, see KH00110.
- Assuming that the first pendant and the last pendant in the 10th group are markers, the khipu is separated, by markers and spacing, into 2 parts of 10 groups each. Each group has 11 pendants.
- With the exception of groups 7 and 17 (the 7 th group in each part), each group has the same patterning of colors: 2X, 2Y, 7X, Y is BB: W in all groups except groups 16 and 17 in which it is LC:W. The X varies so that the group colors alternate. In the first part (with the exception of 2 pendants in group 7), X is W in groups 1, 3, 5, 7, and 9 and it is LB in groups 2, 4, 6, 8, 10, In the second part: X is B in groups 11, 13, 15, 19; LB in 12, 14, 16; and YG in 18 and 20.
- In every even group (groups 2, 4, 6, ..., 18, 20), all pendants are zero-valued (or blank) and there are no subsidiaries.
- In every odd group (groups 1, 3, 5,..., 17, 19):
- Positions 4 and 11 have no subsidiaries; position 3 has 1 W subsidiary; and position 1 has 3-6 subsidiaries or subsidiaries of subsidiaries. The unusual attachment noted in #2 above only occurs in the first position. Other positions vary from 0-3 subsidiaries from group to group.
- Pendant 11 is always zero-valued (or blank).
- The value in position 1 is the maximum.
