KH0695/MM022 - Pendant Pendant Sums
Drawings:

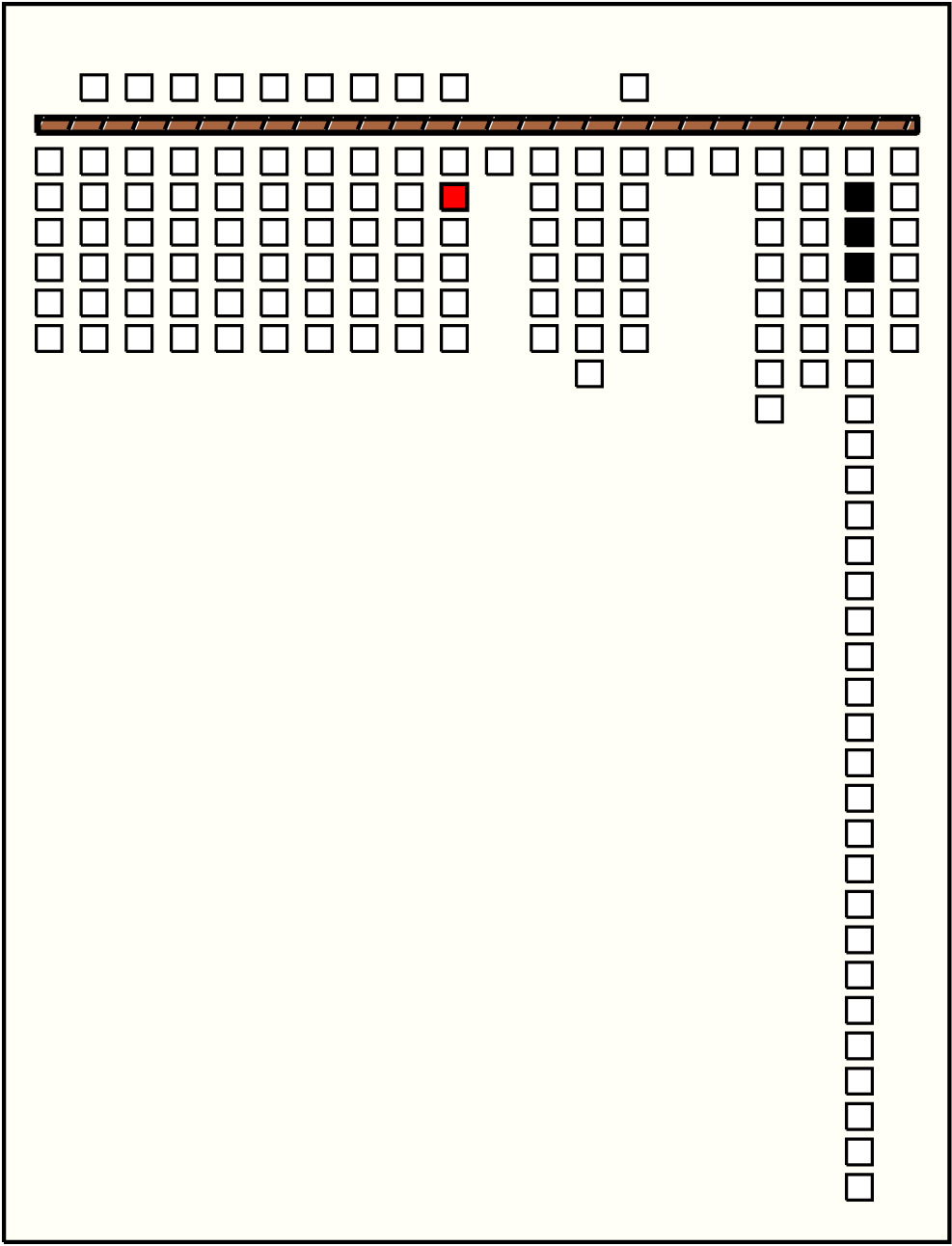

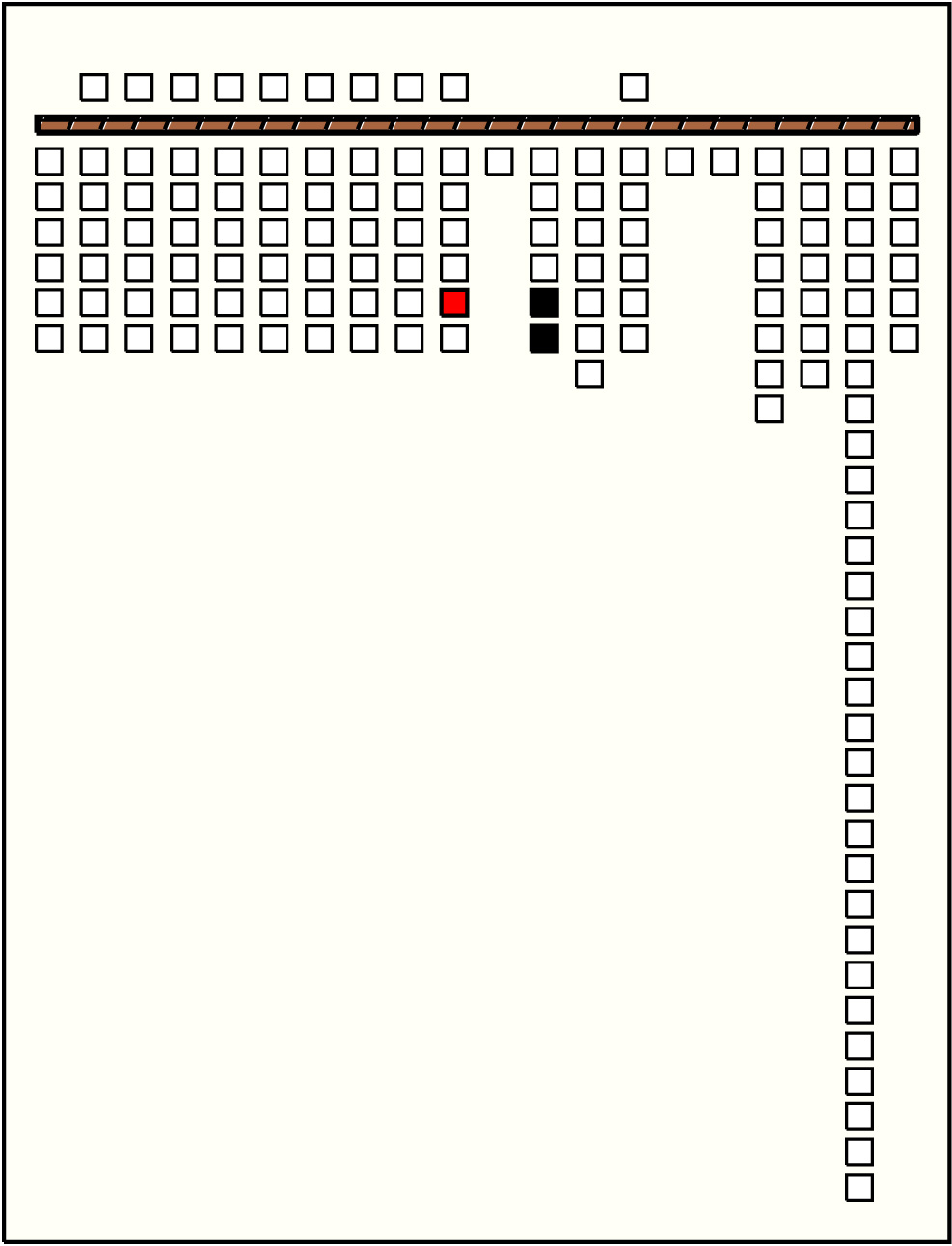

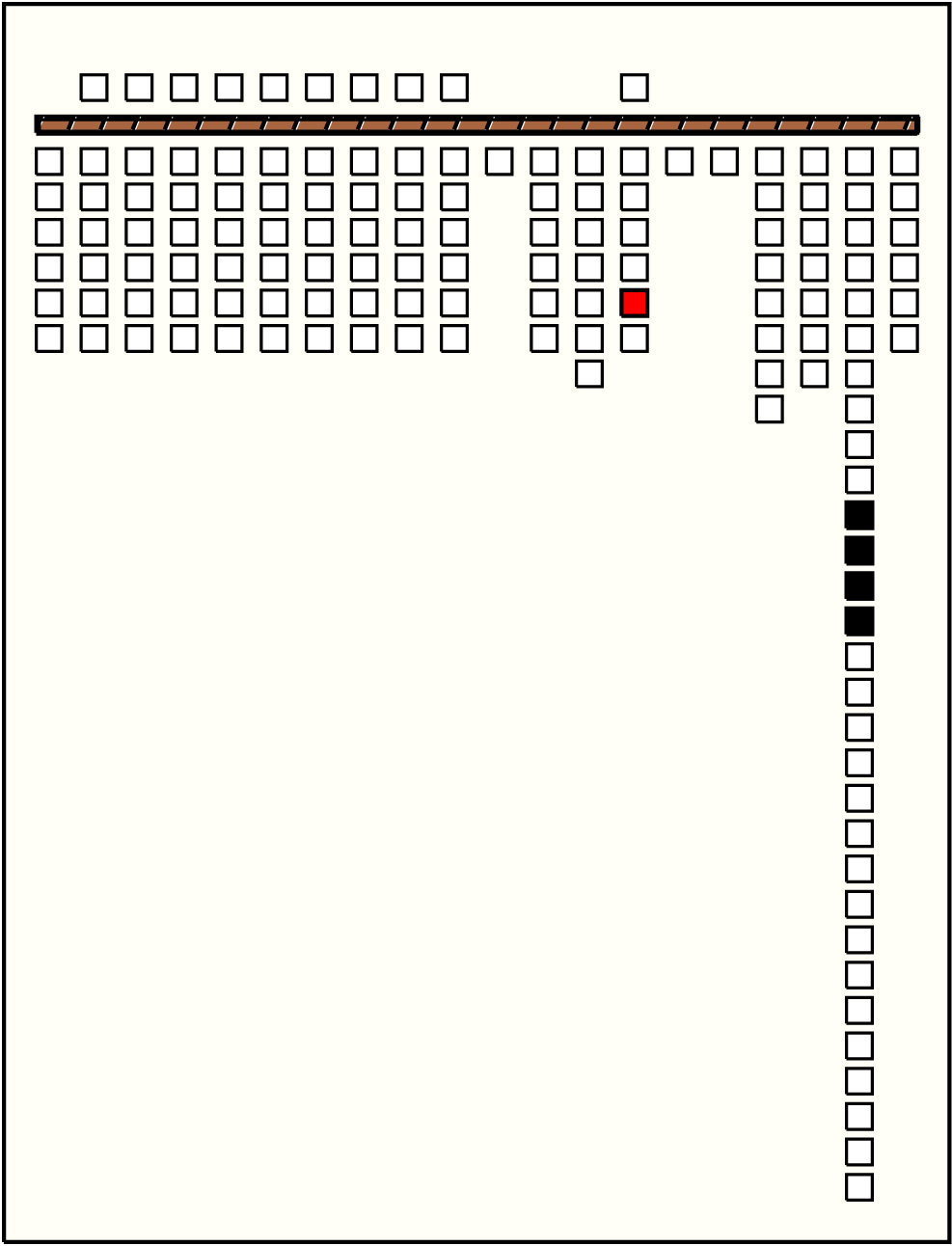

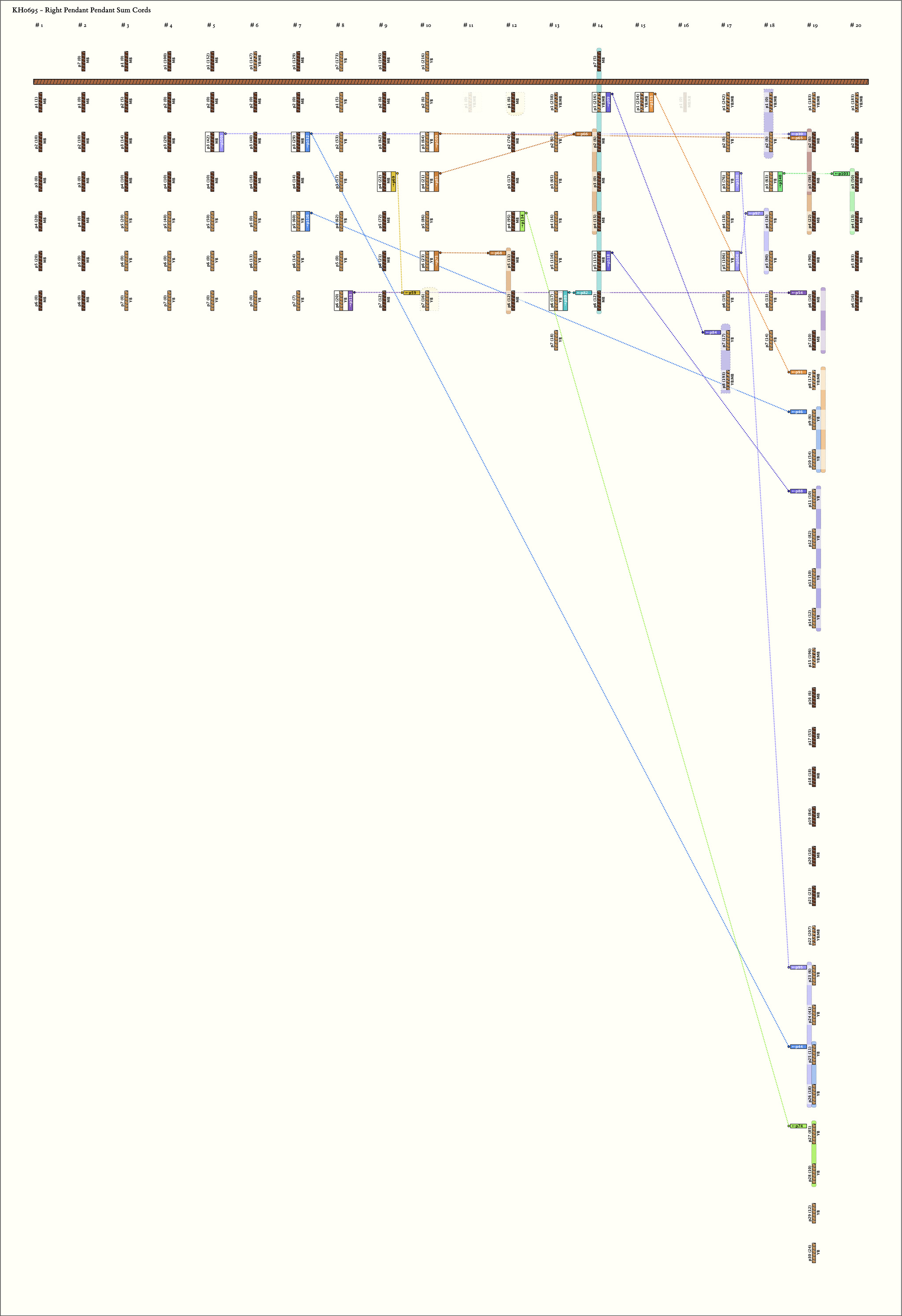

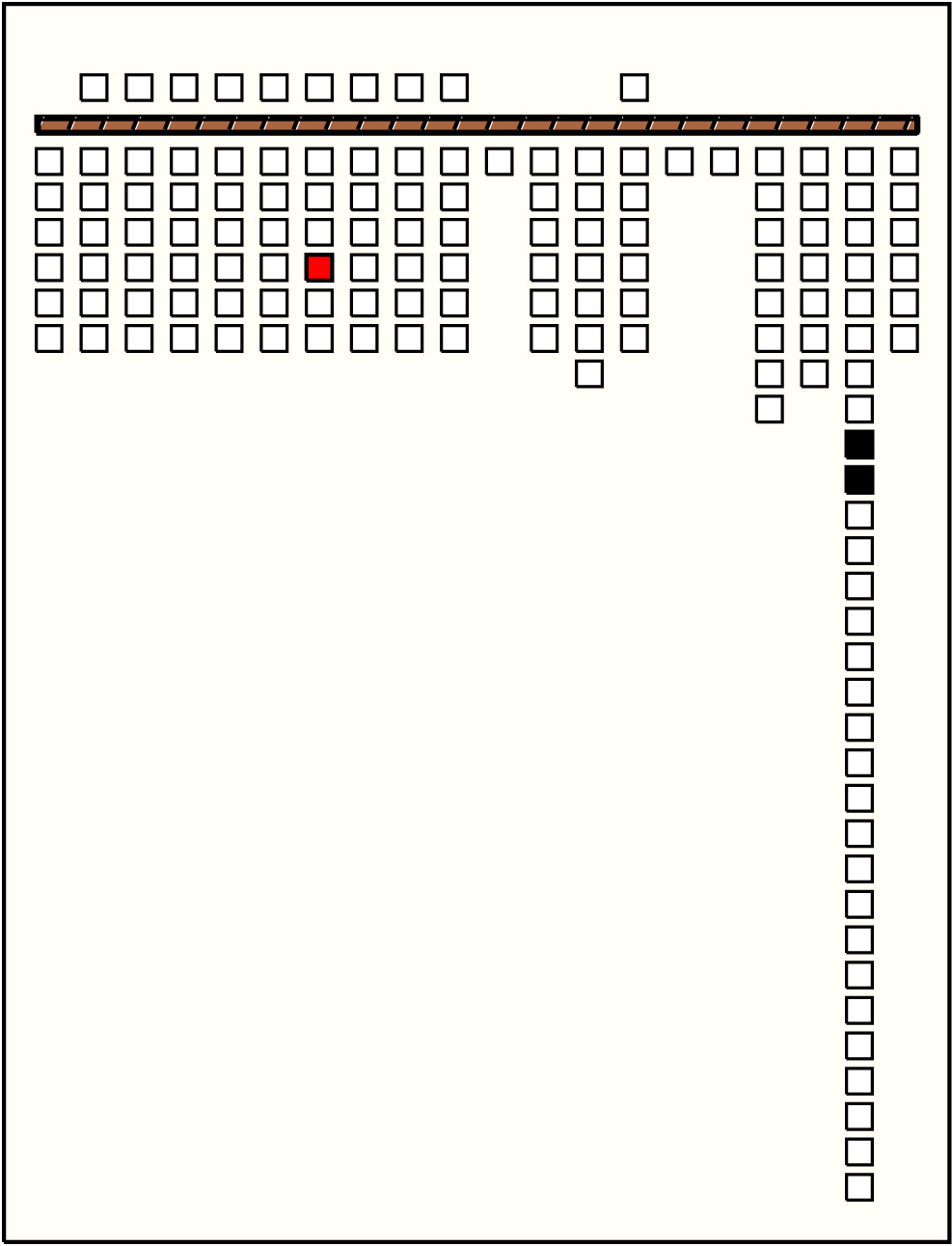

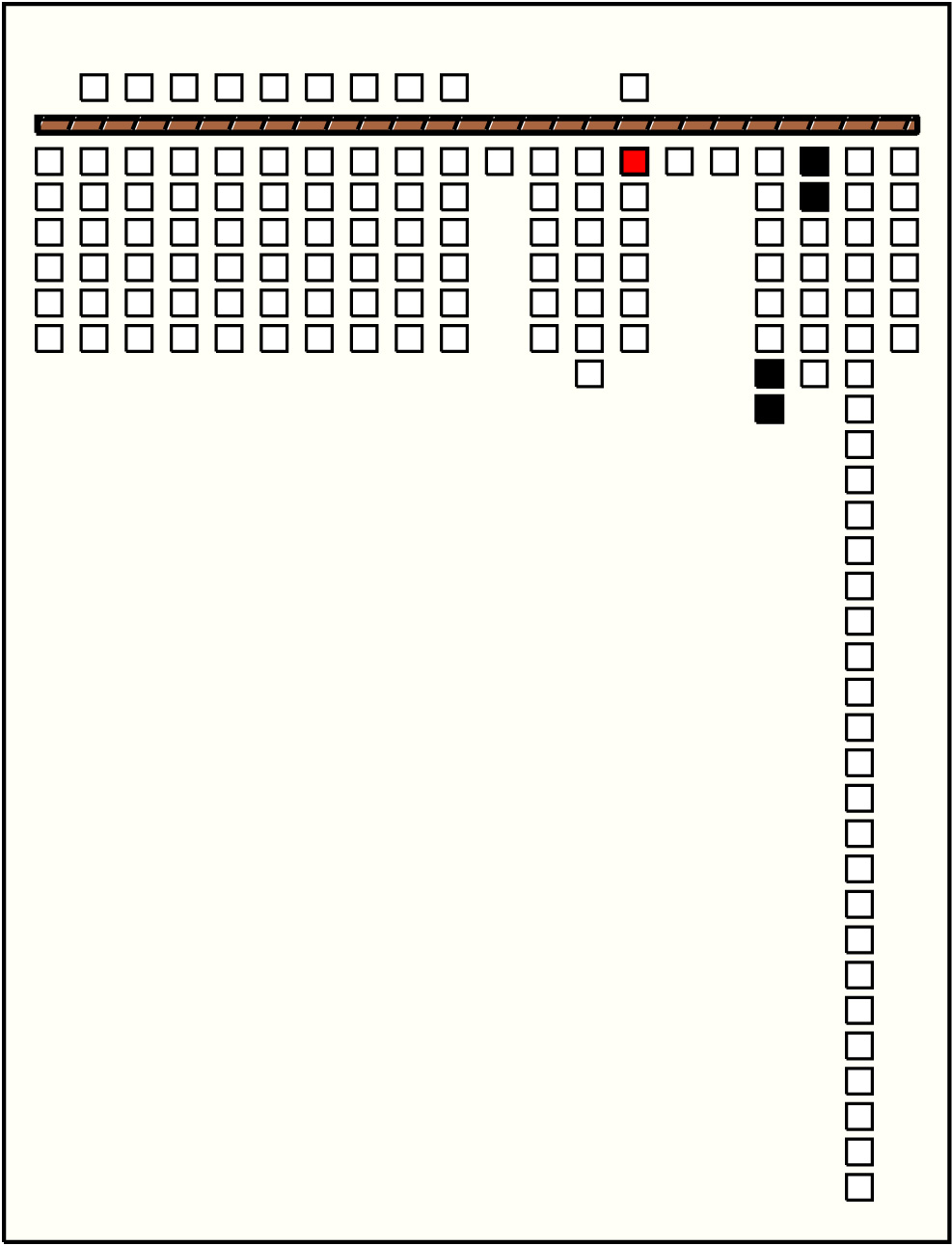

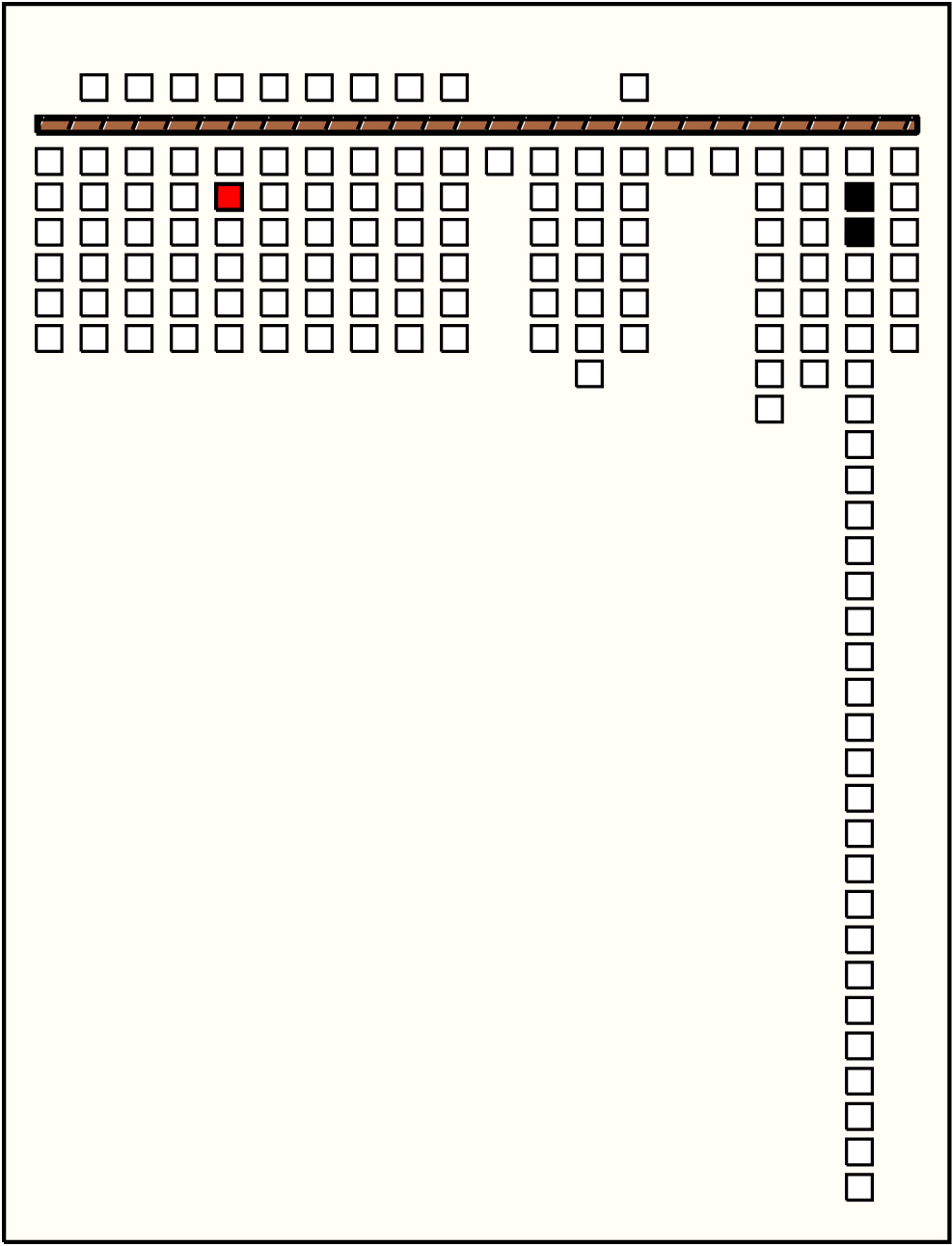

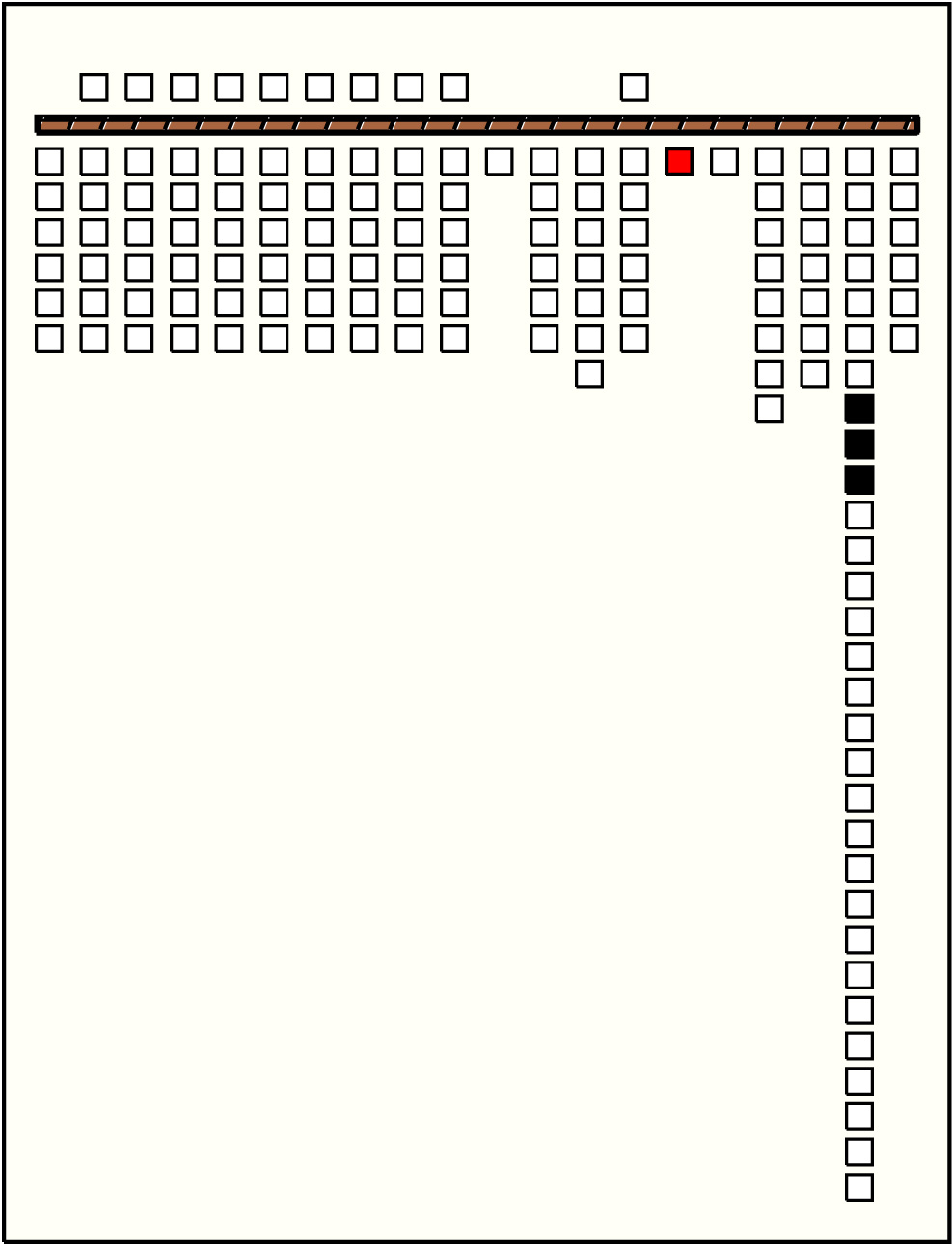

Right Handed Sums: # Sums = 16, Max # Summands = 4, (Min, Mean, Max) Sum Values = (17, 75, 234)
Click on Image to View Larger

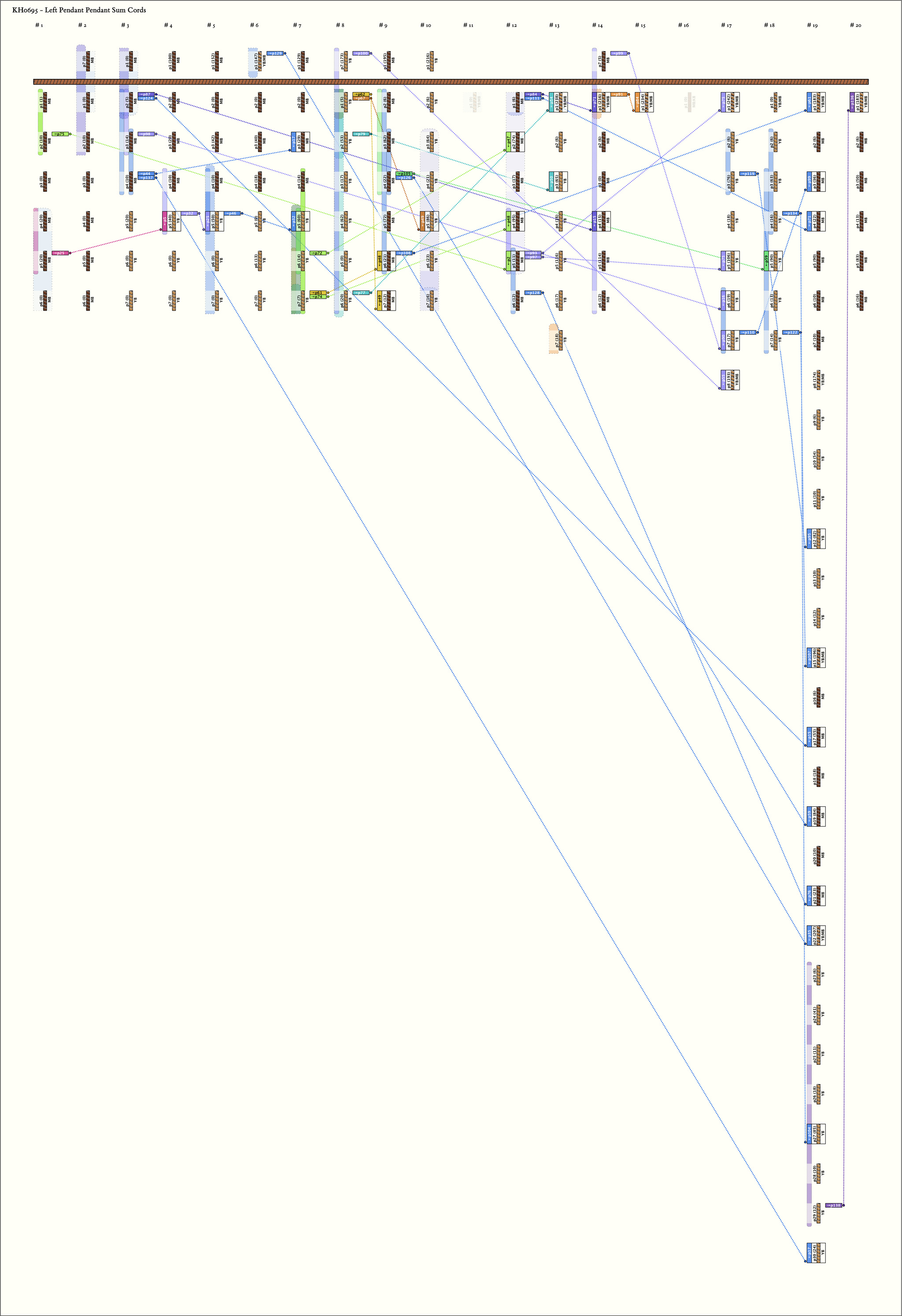

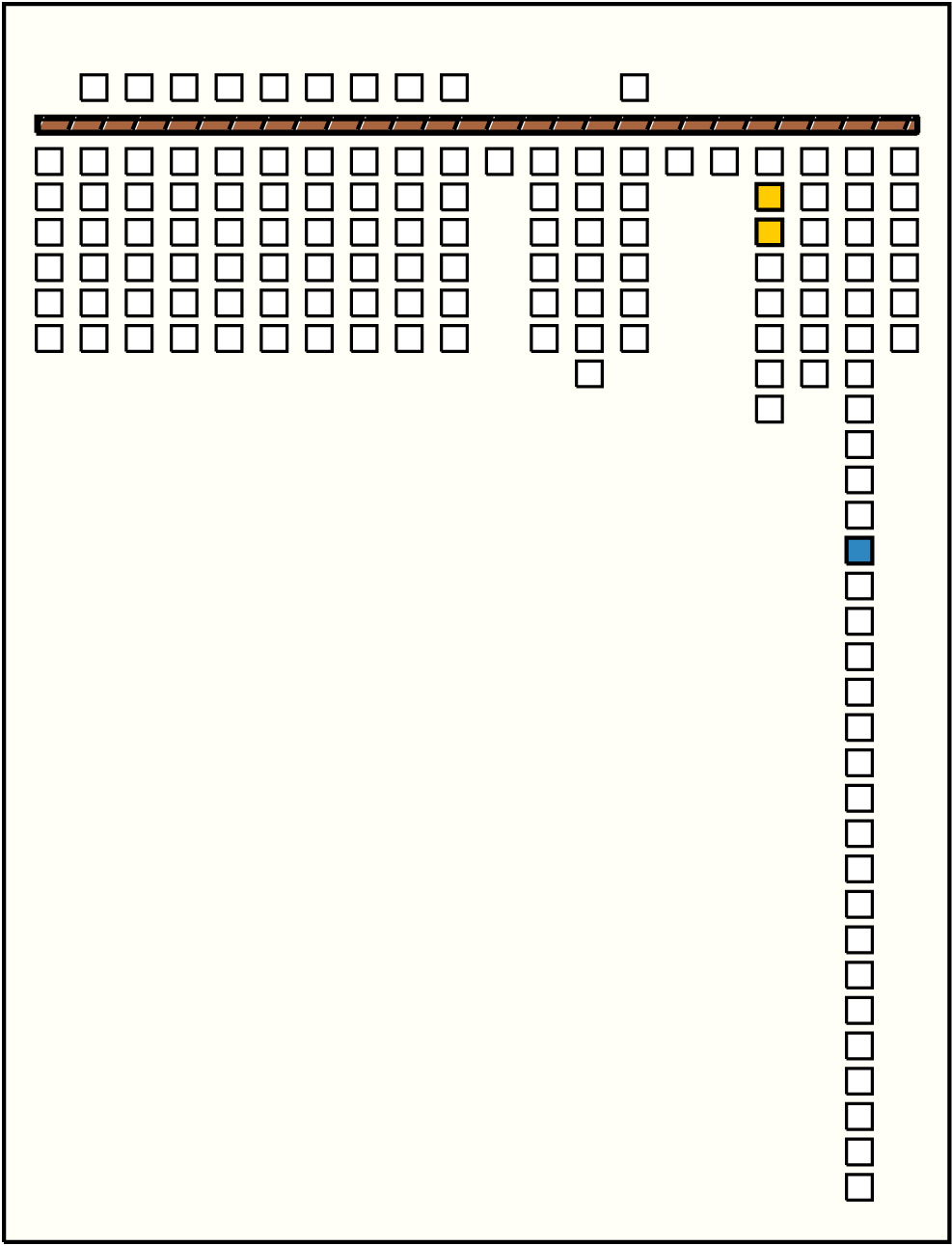

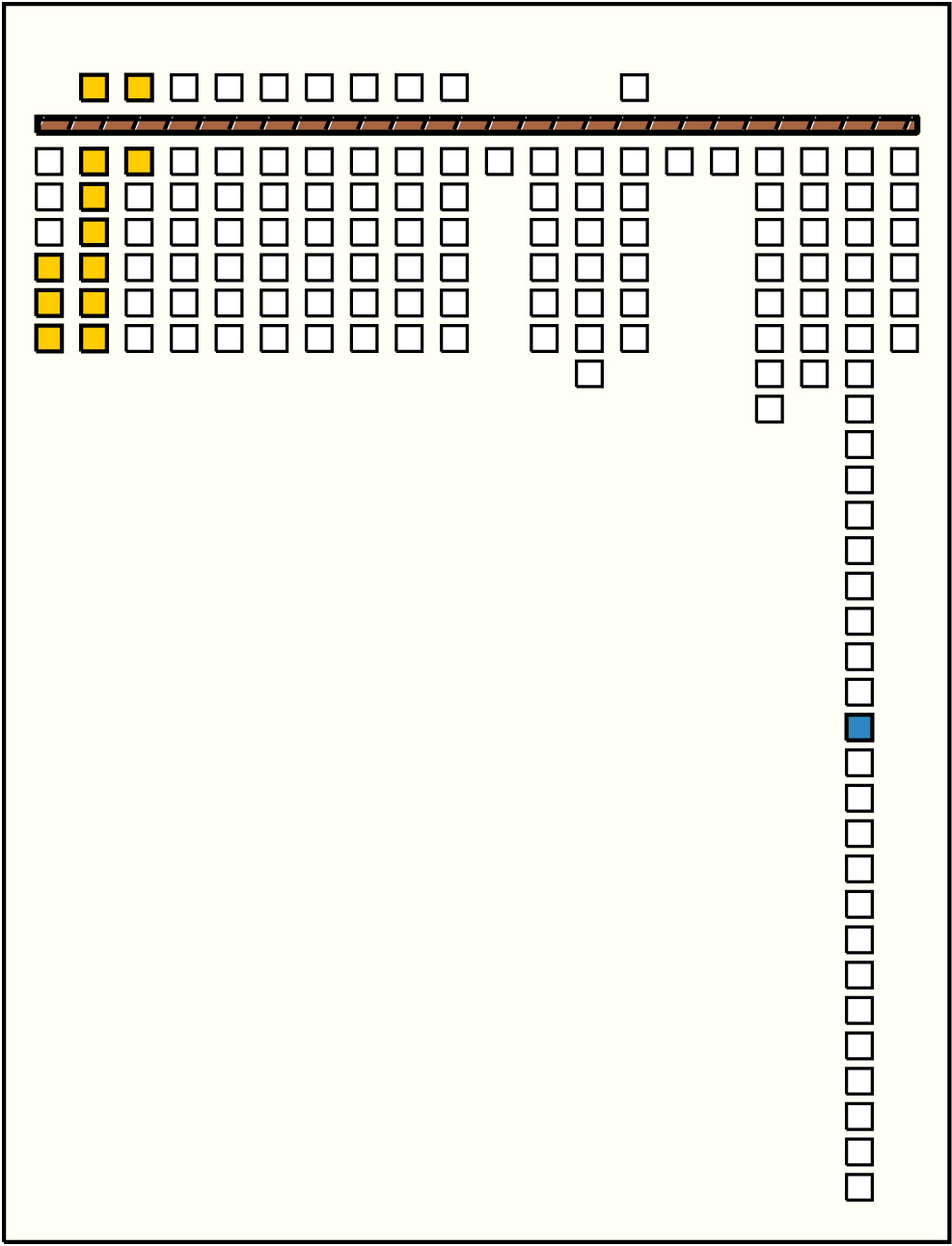

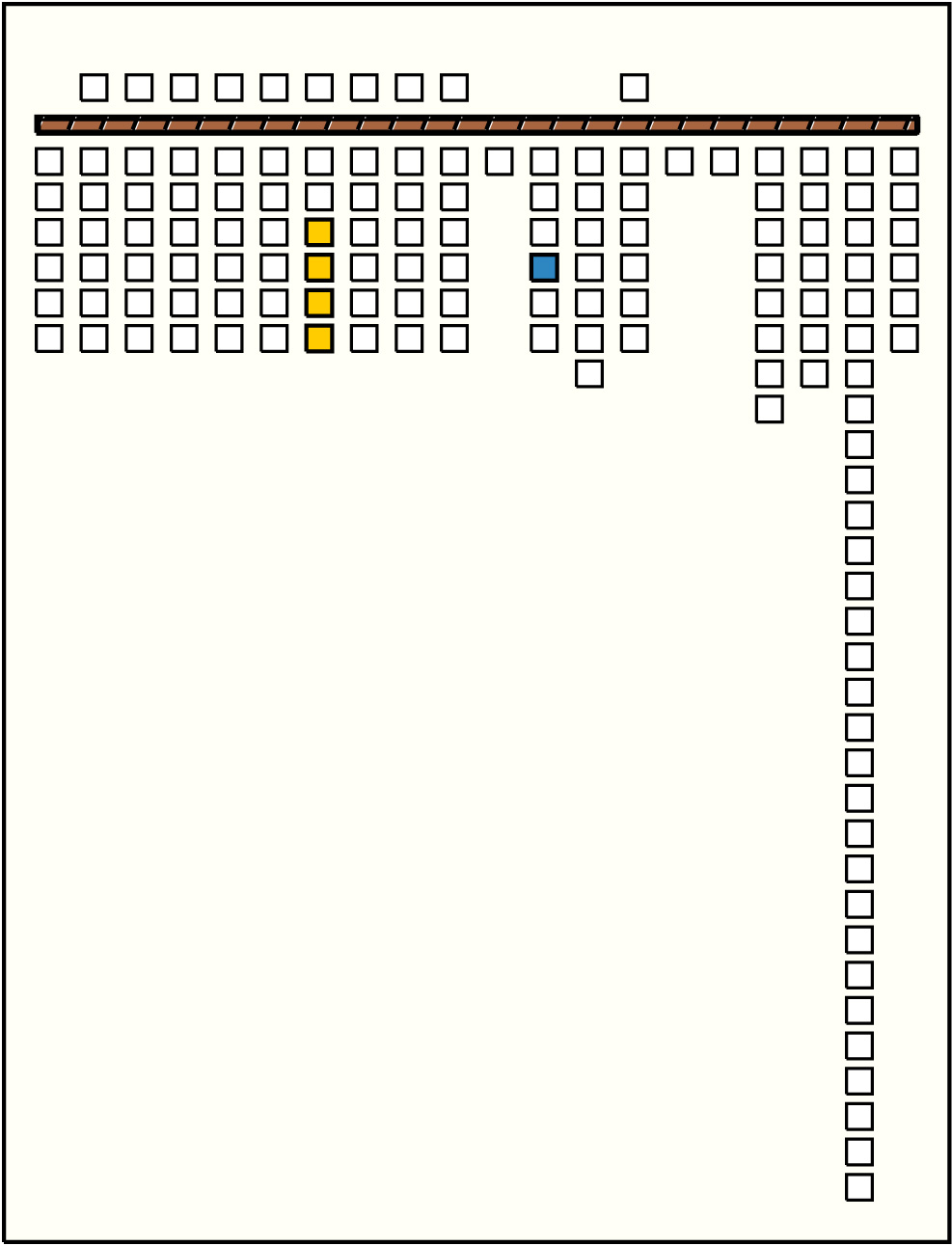

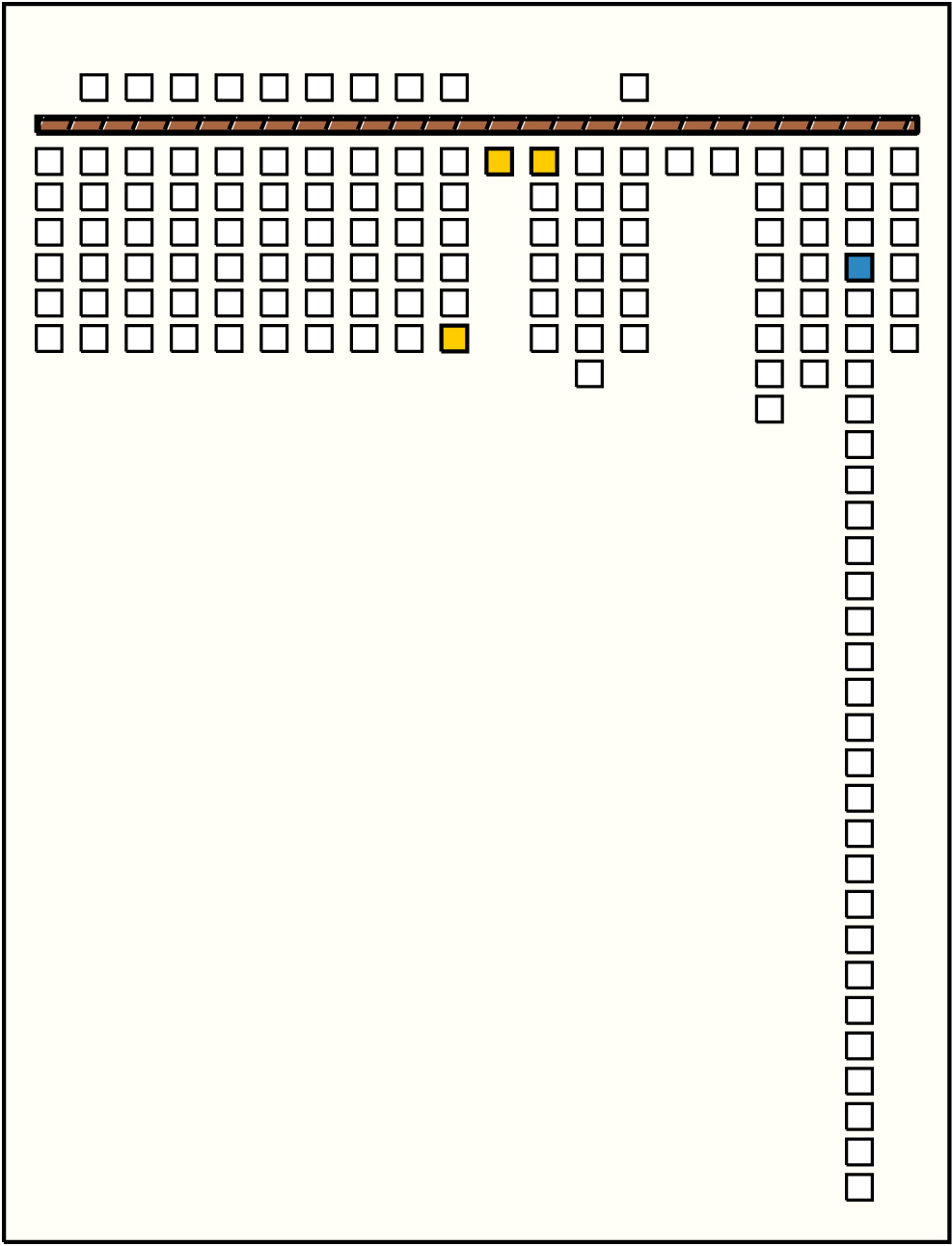

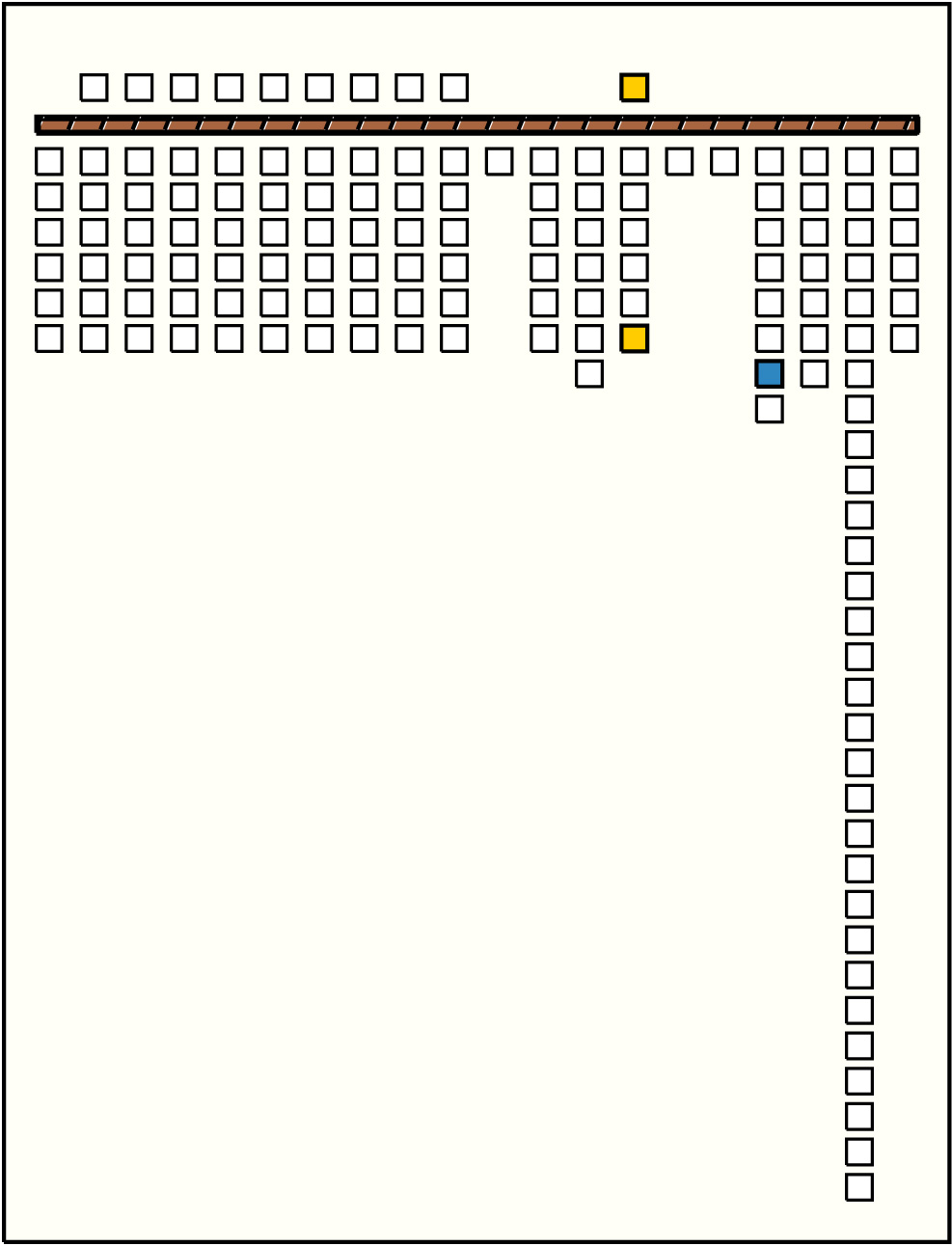

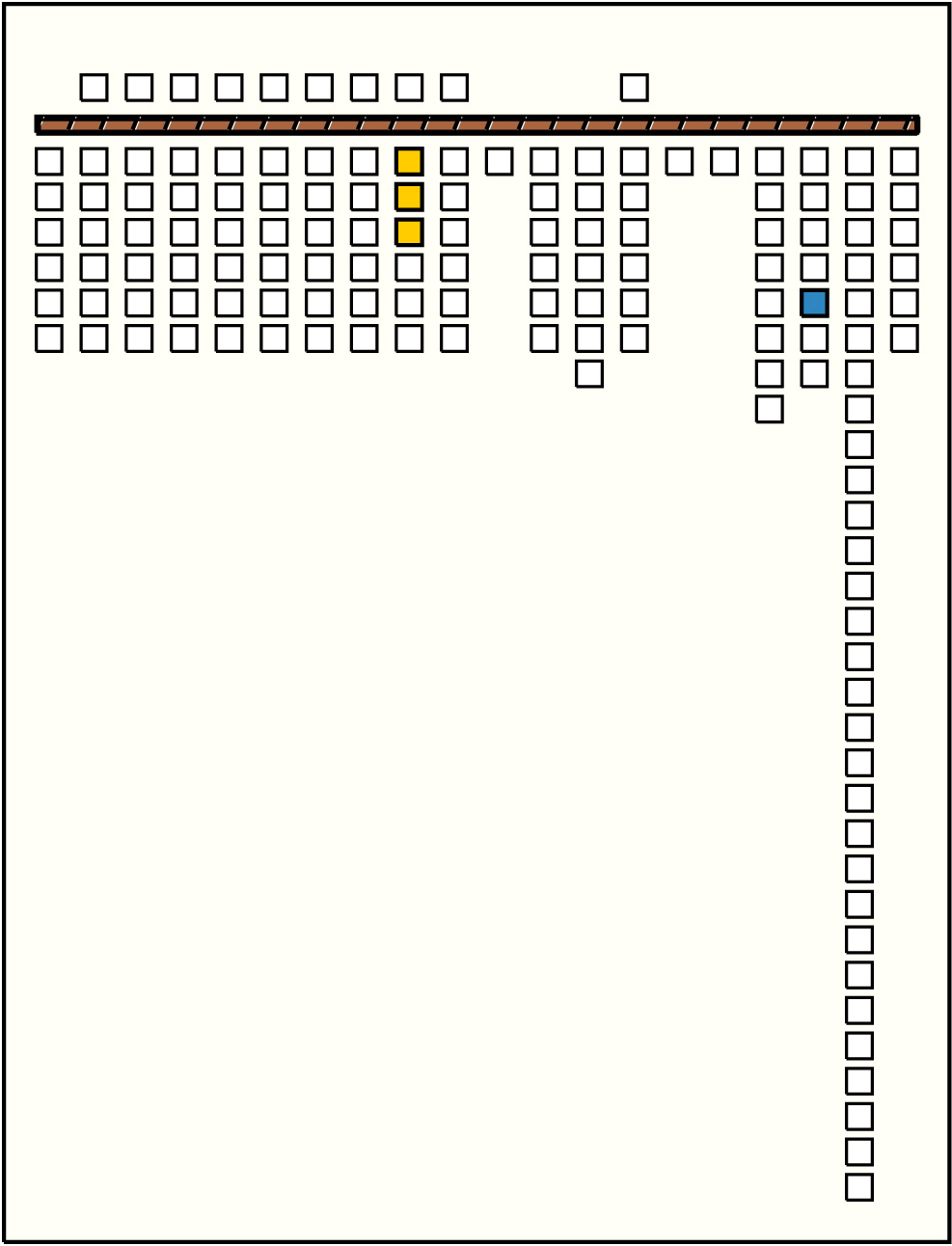

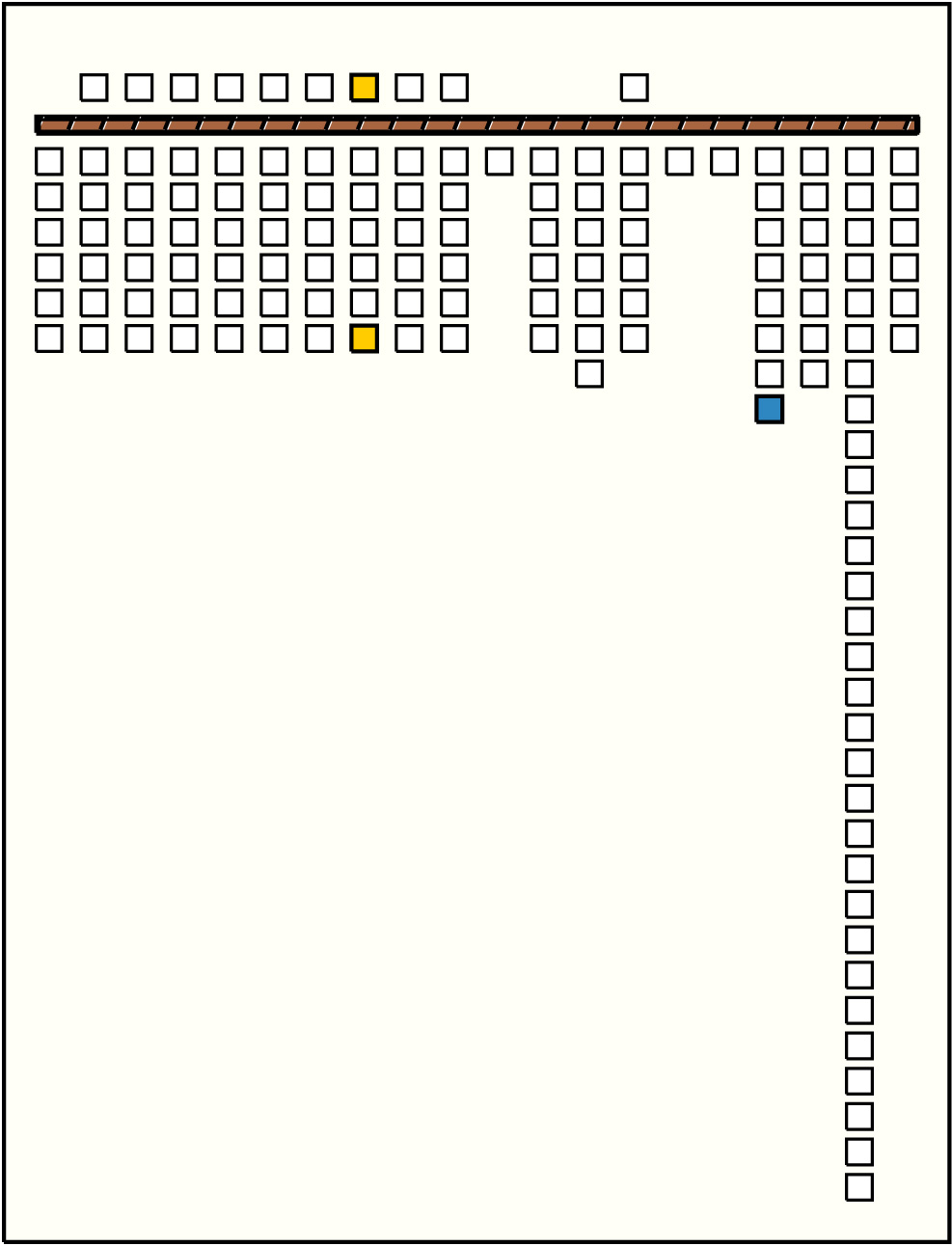

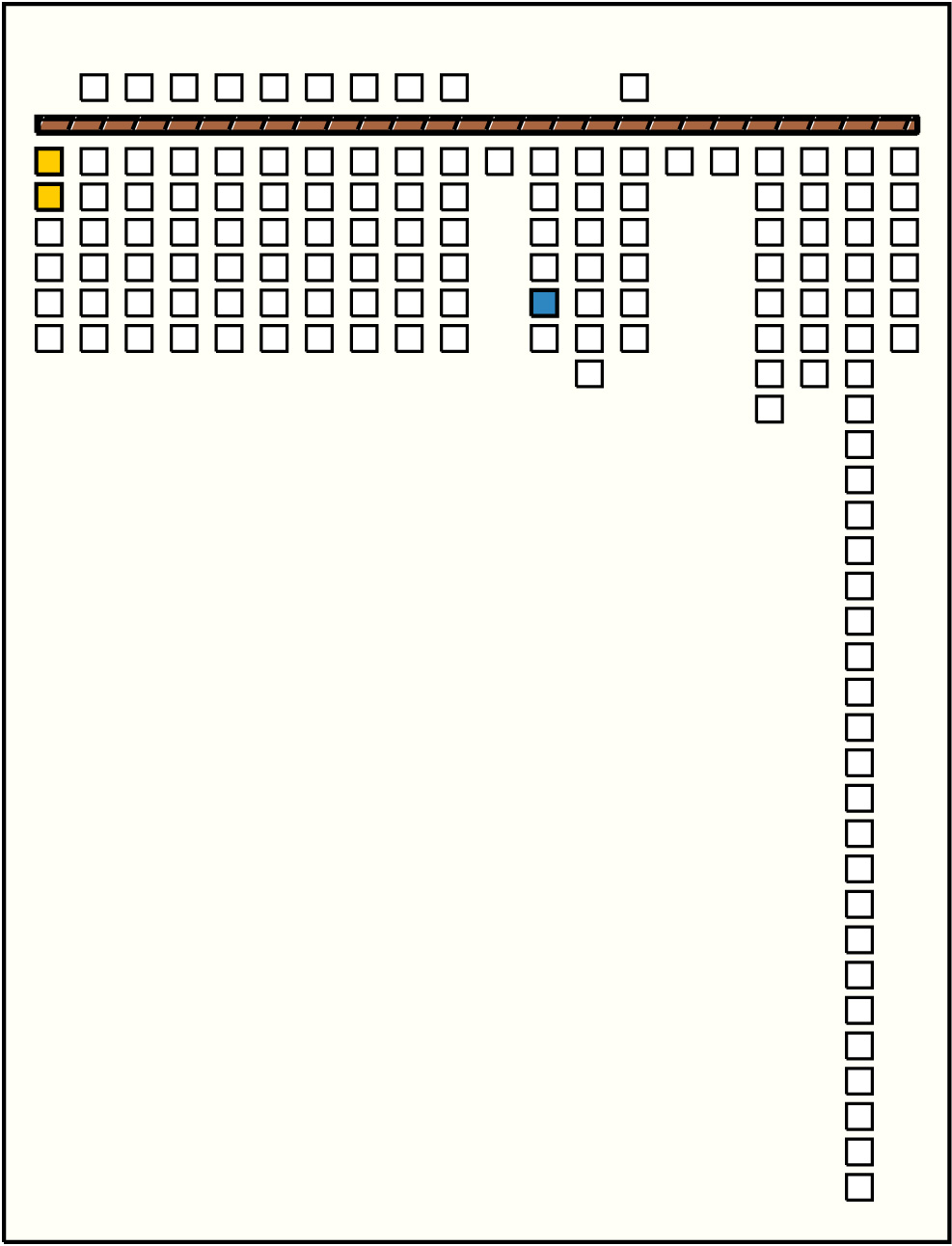

Left Handed Sums: # Sums = 33, Max # Summands = 12, (Min, Mean, Max) Sum Values = (11, 94, 242)
Click on Image to View Larger

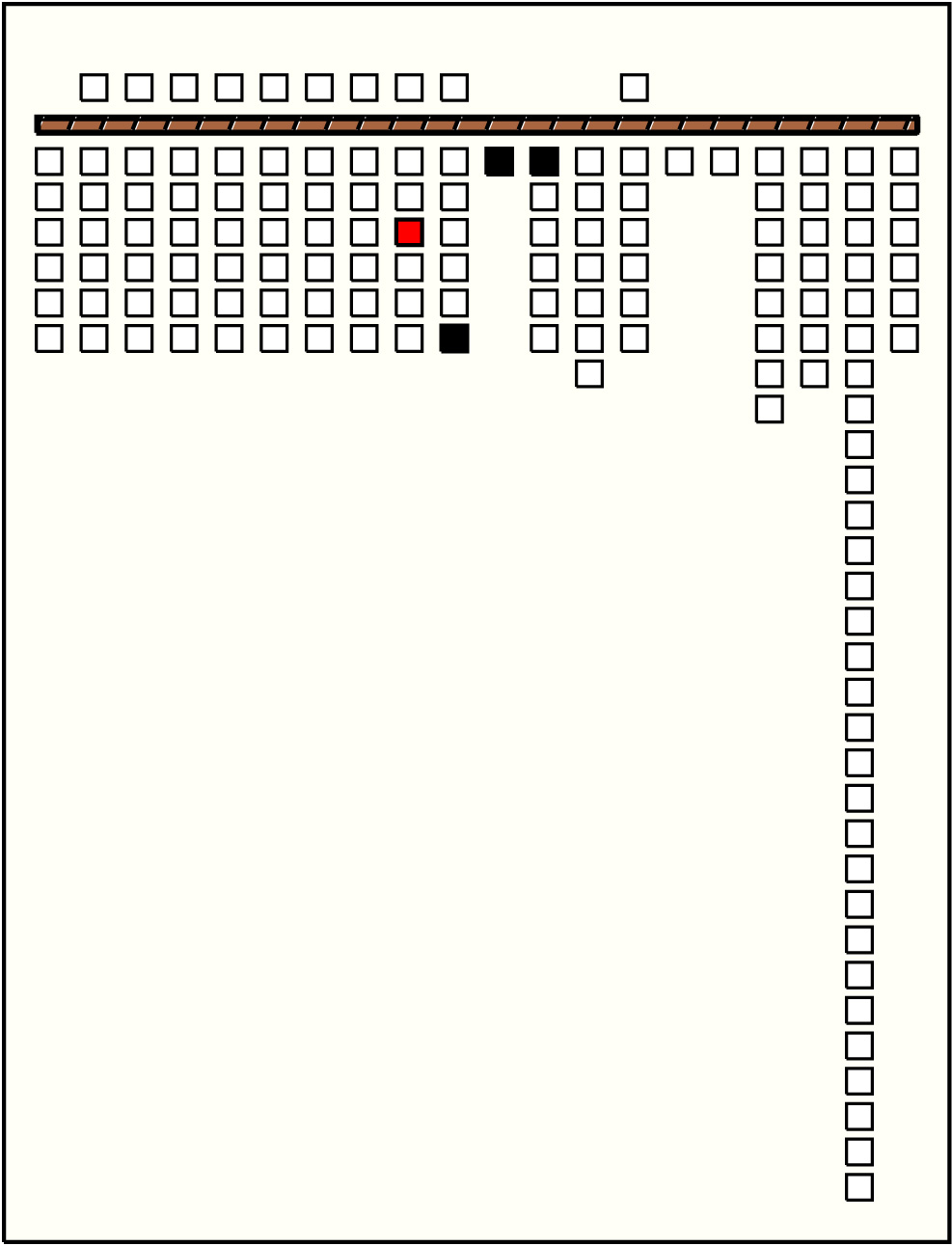

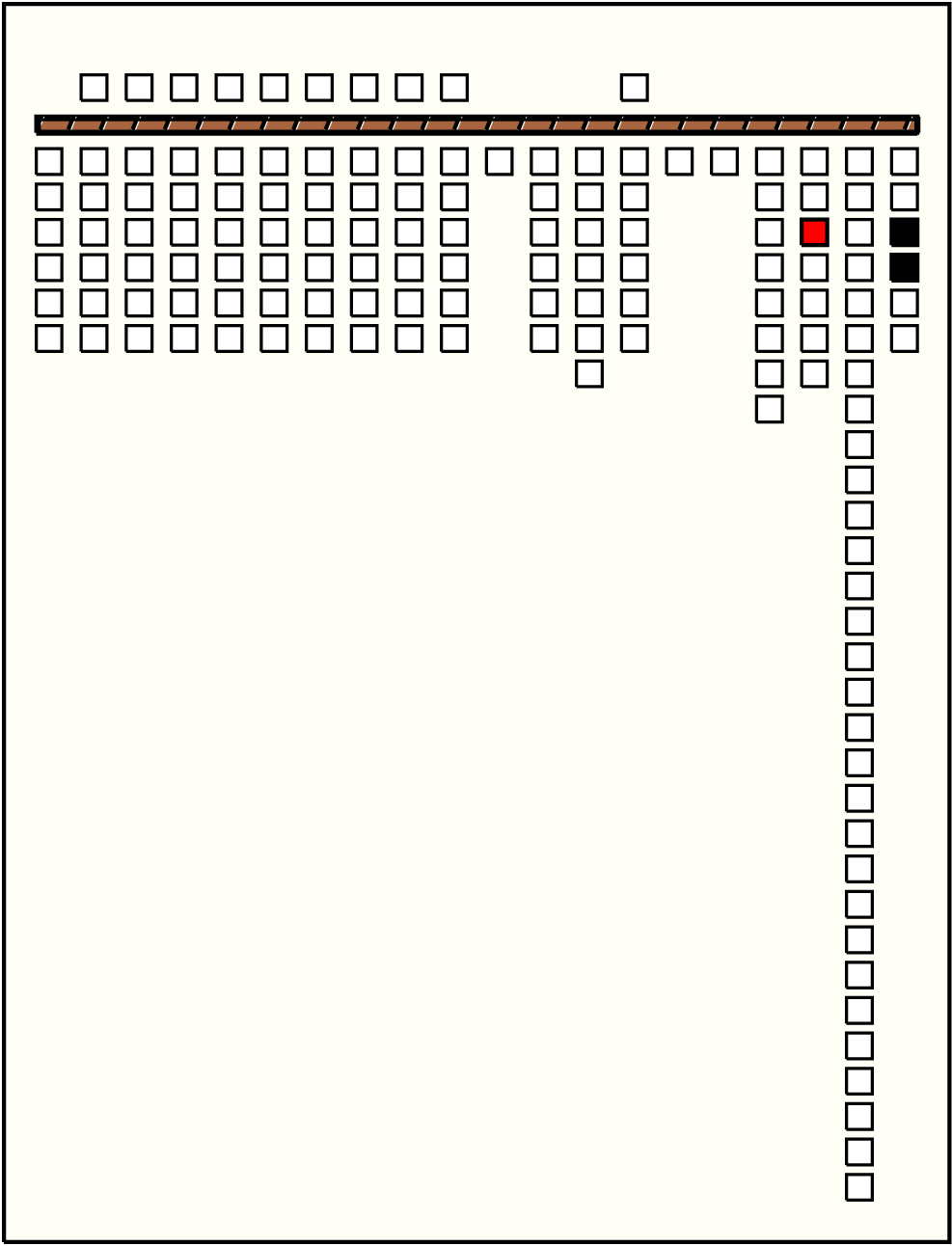

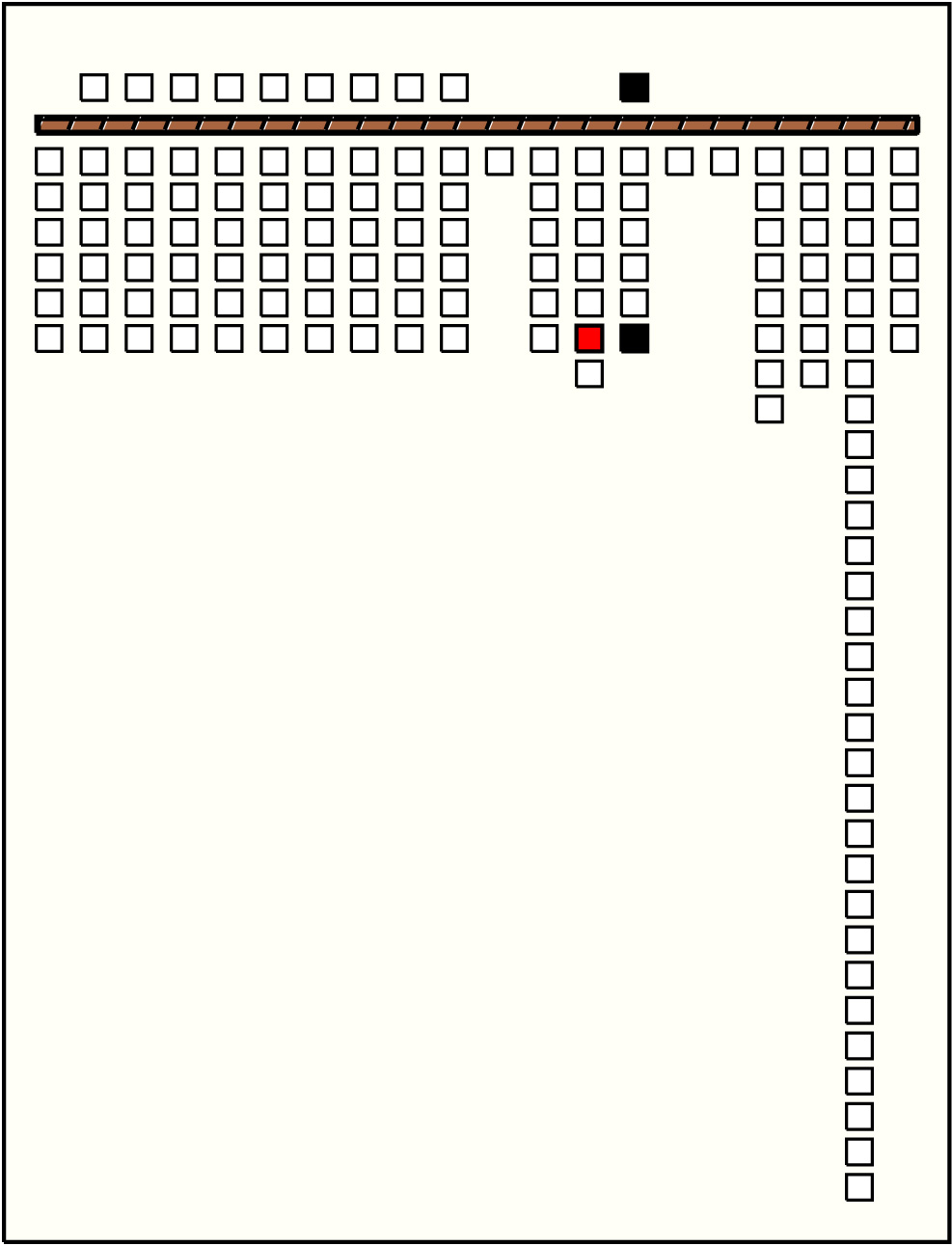

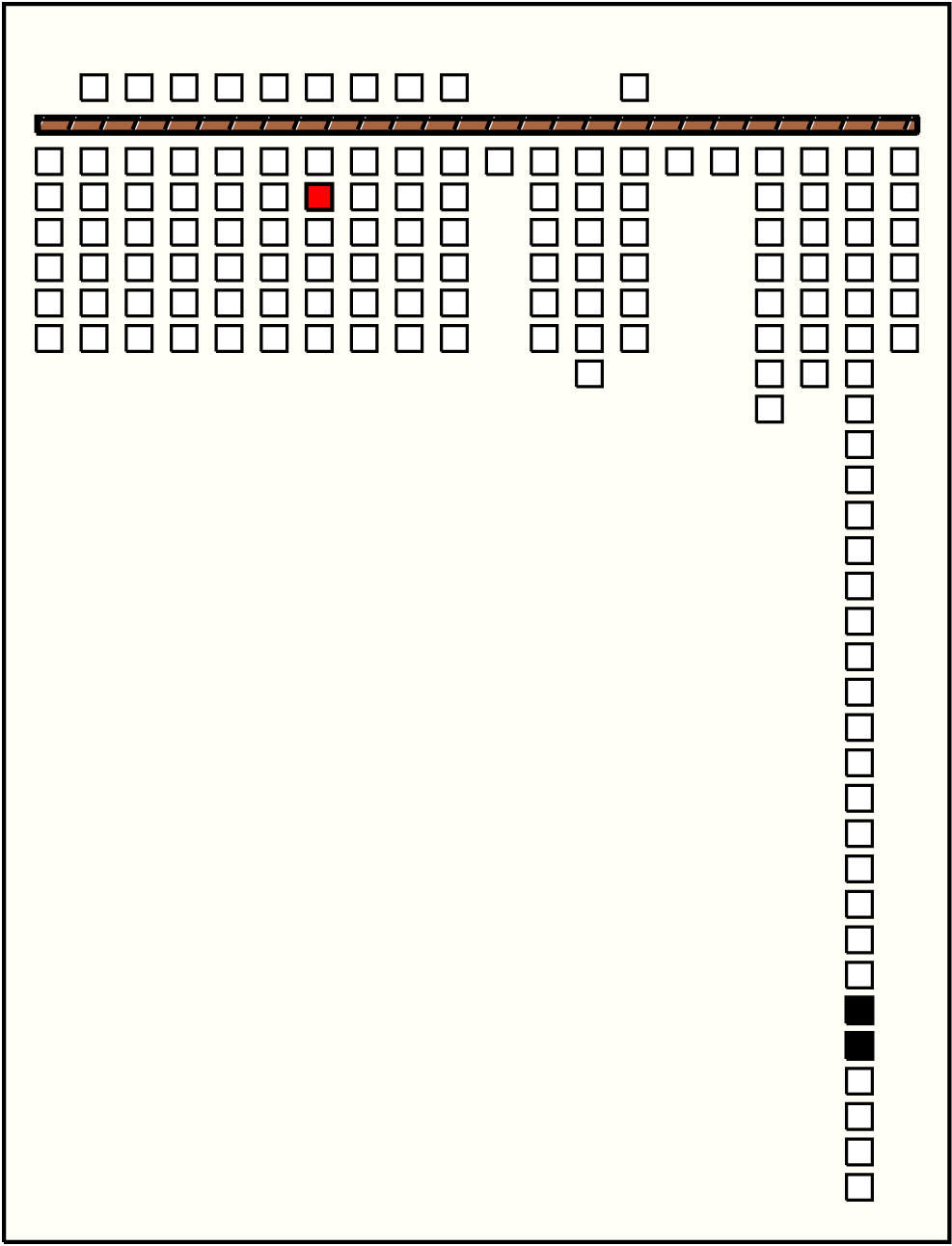

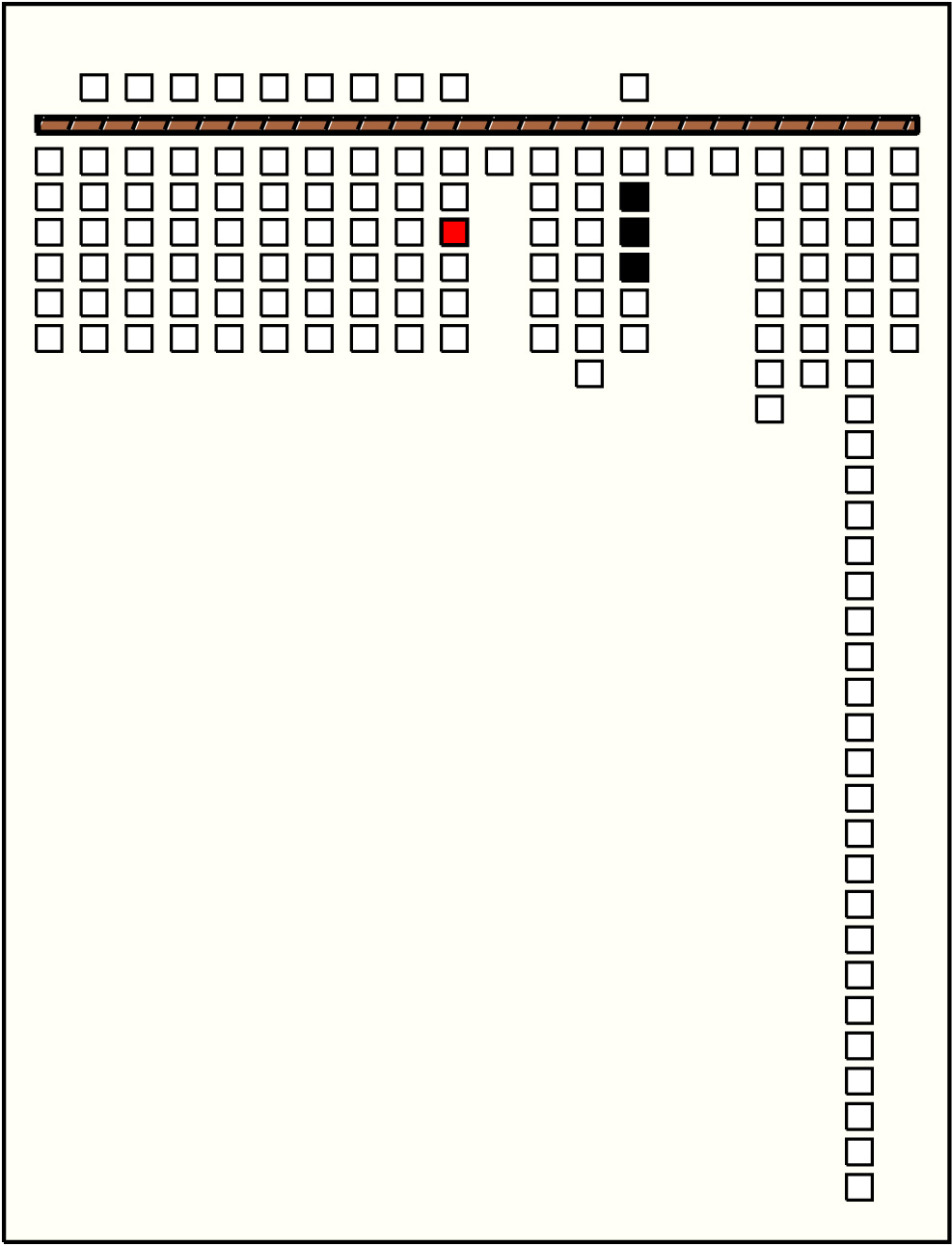

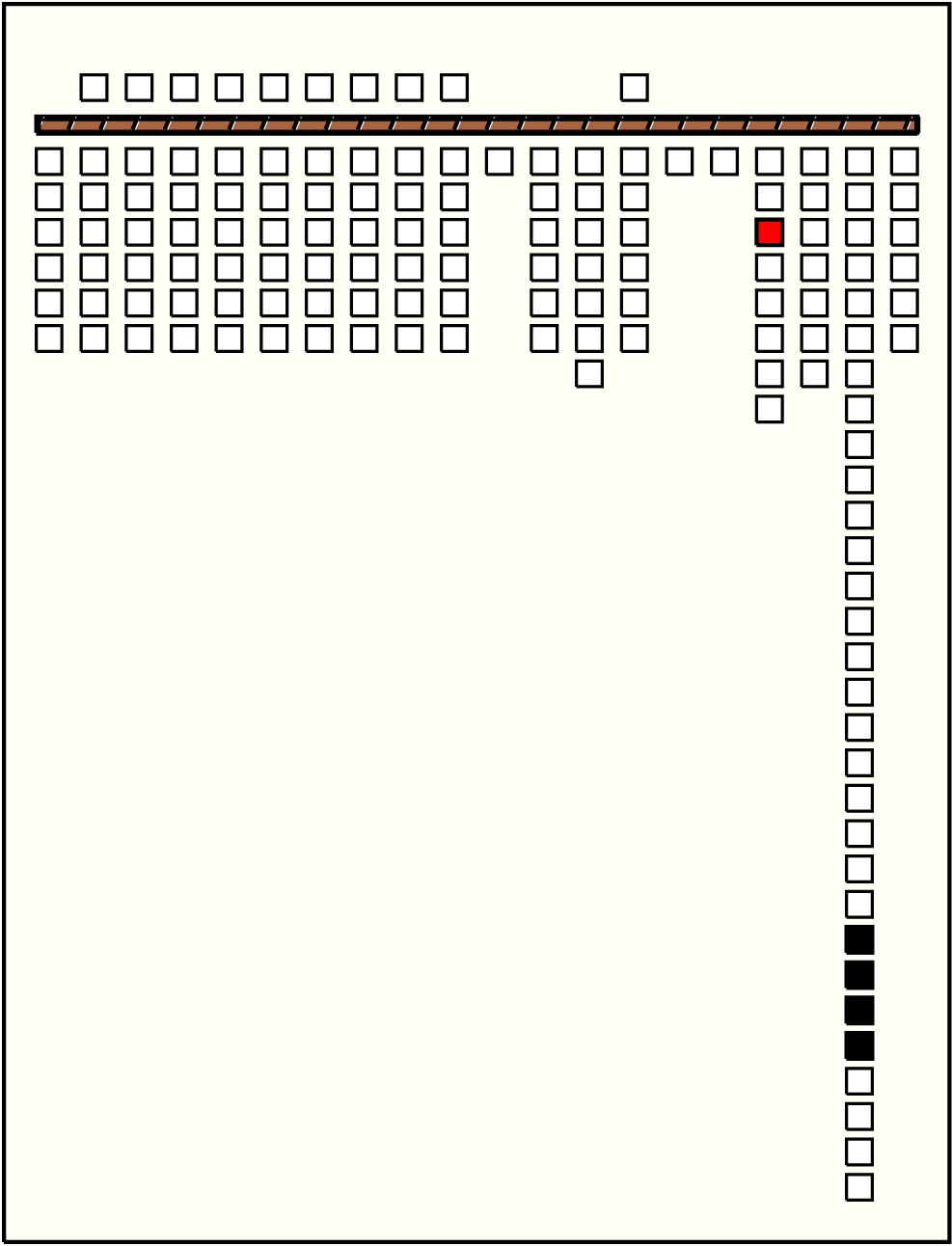

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g5p3 : 42MB | 42 | 2 | g19p2: 6MB + g19p3: 36MB | |
| 2 |  | g7p3 : 29MB | 29 | 2 | g19p25: 11YB + g19p26: 18YB | |
| 3 |  | g7p5 : 60YB | 60 | 2 | g19p9: 6YB + g19p10: 54YB | |
| 4 |  | g8p6 : 20YB | 20 | 2 | g19p6: 10MB + g19p7: 10MB | |
| 5 |  | g9p4 : 22MB | 22 | 3 | g10p7: 16YB + g11p1: 0YB:MB + g12p1: 6MB | |
| 6 |  | g10p3 : 64YB | 64 | 3 | g19p2: 6MB + g19p3: 36MB + g19p4: 22MB | |
| 7 |  | g10p4 : 21YB | 21 | 3 | g14p2: 6MB + g14p3: 0MB + g14p4: 15MB | |
| 8 |  | g10p6 : 23YB | 23 | 2 | g12p5: 11MB + g12p6: 12MB | |
| 9 |  | g12p4 : 95MB | 95 | 2 | g19p27: 85YB + g19p28: 10YB | |
| 10 |  | g13p6 : 17YB | 17 | 2 | g14p6: 12MB + g14p7: 5MB | |
| 11 |  | g14p1 : 216YB:MB | 216 | 4 | g17p7: 17YB + g17p8: 193YB:MB + g18p1: 0YB:MB + g18p2: 6YB | |
| 12 |  | g14p5 : 114MB | 114 | 4 | g19p11: 10YB + g19p12: 82YB + g19p13: 10YB + g19p14: 12YB | |
| 13 |  | g15p1 : 234YB:MB | 234 | 3 | g19p8: 174YB:MB + g19p9: 6YB + g19p10: 54YB | |
| 14 |  | g17p3 : 76YB | 76 | 4 | g19p23: 6YB + g19p24: 41YB + g19p25: 11YB + g19p26: 18YB | |
| 15 |  | g17p5 : 106YB | 106 | 2 | g18p4: 16YB + g18p5: 90YB | |
| 16 |  | g18p3 : 63YB | 63 | 2 | g20p3: 50MB + g20p4: 13MB |

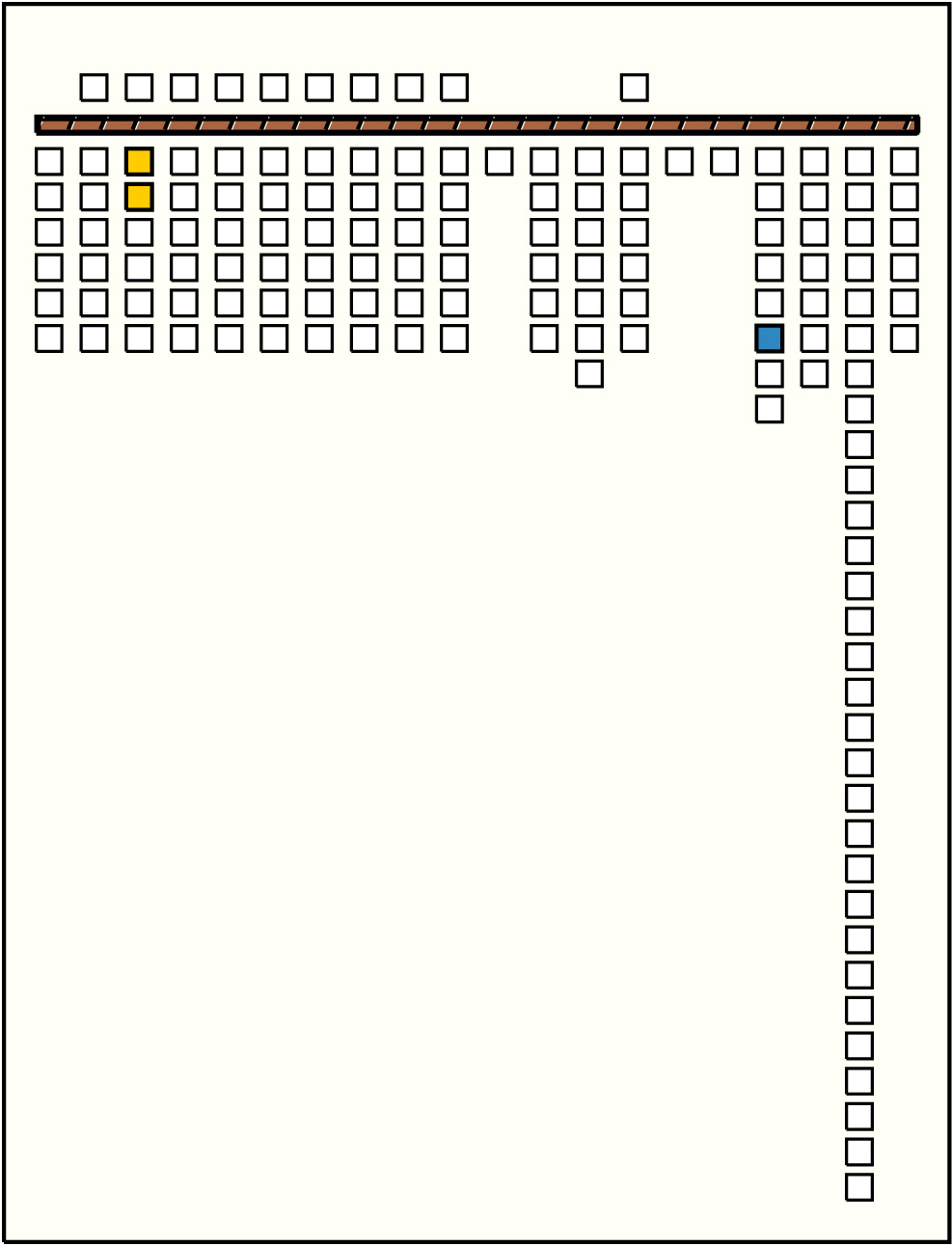

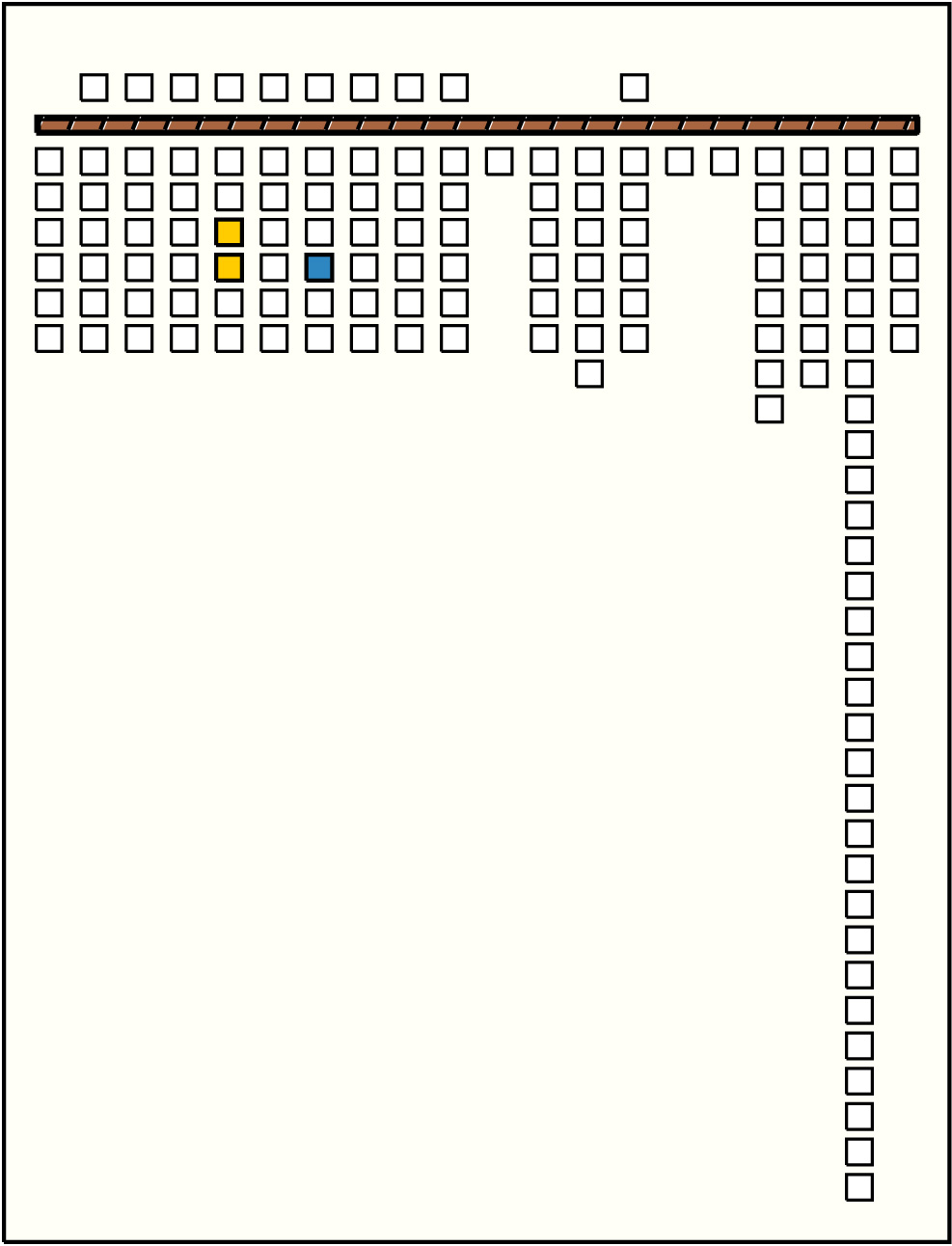

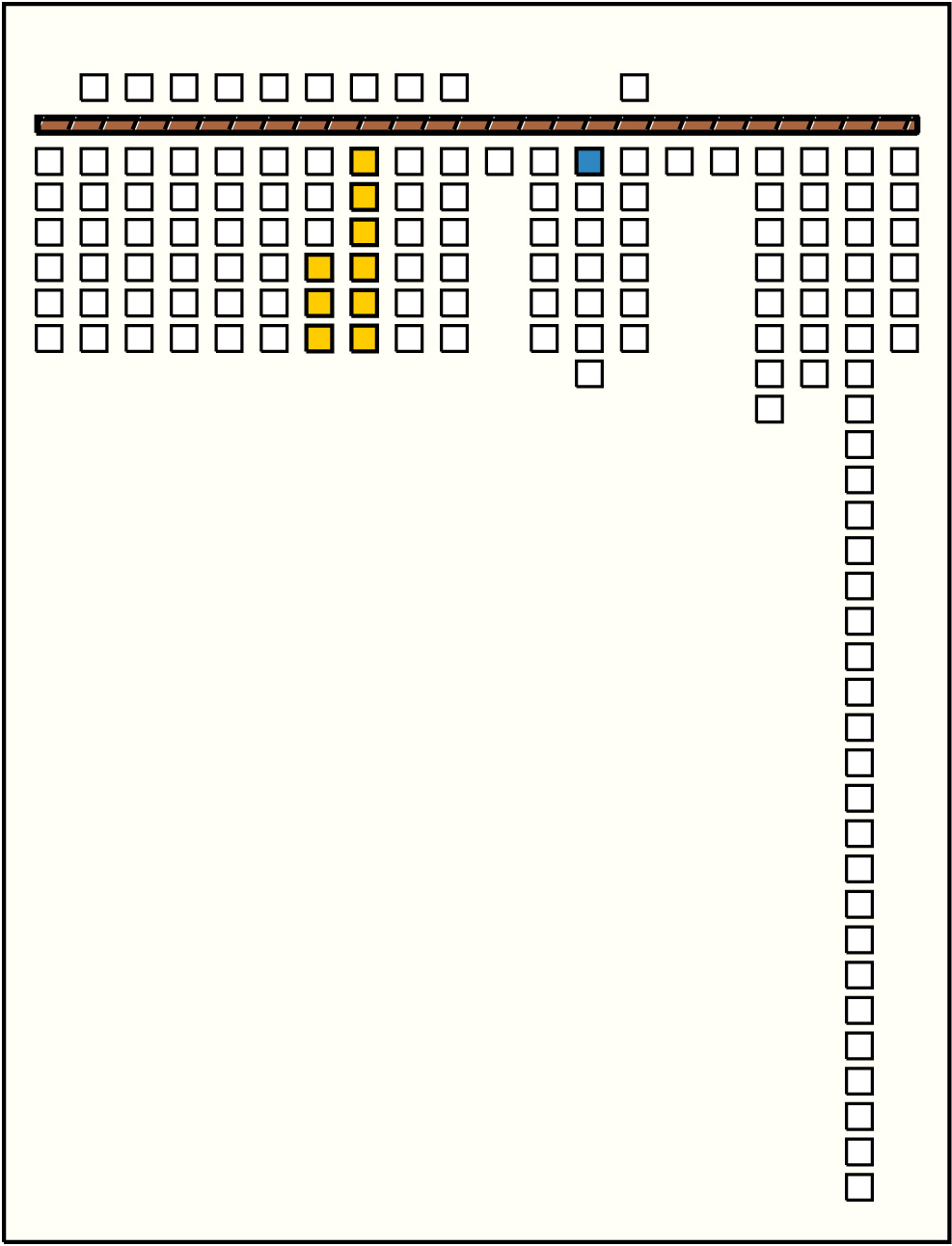

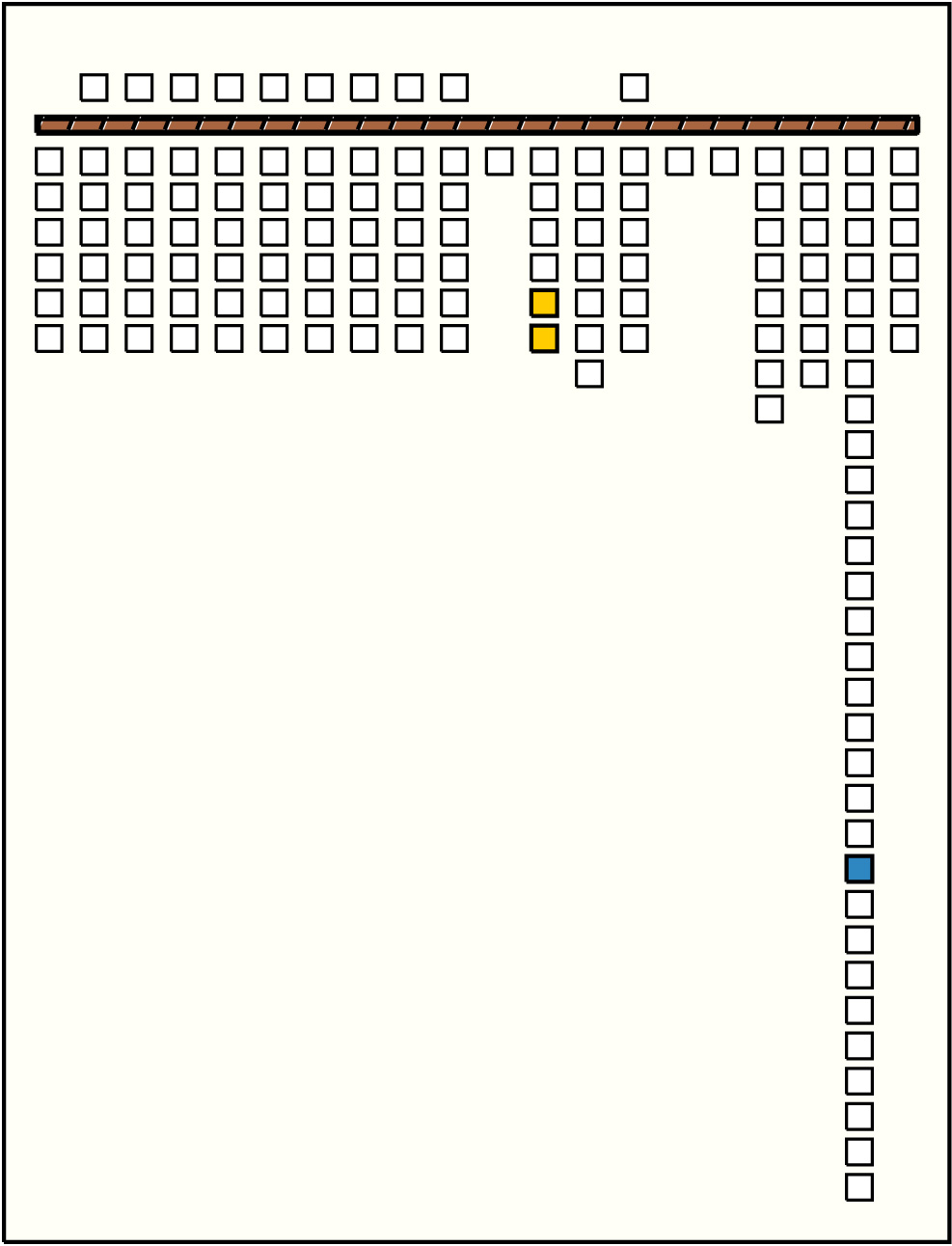

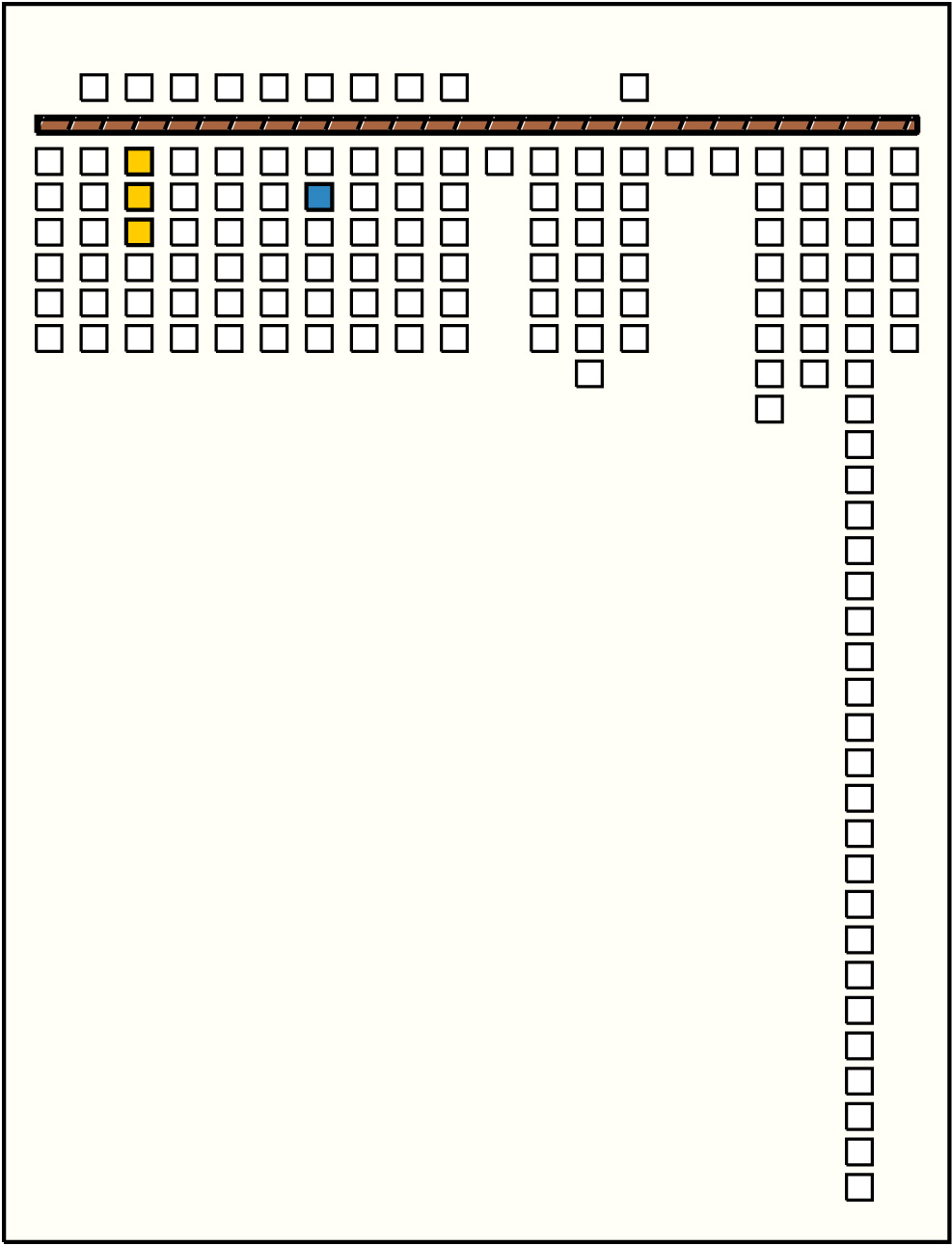

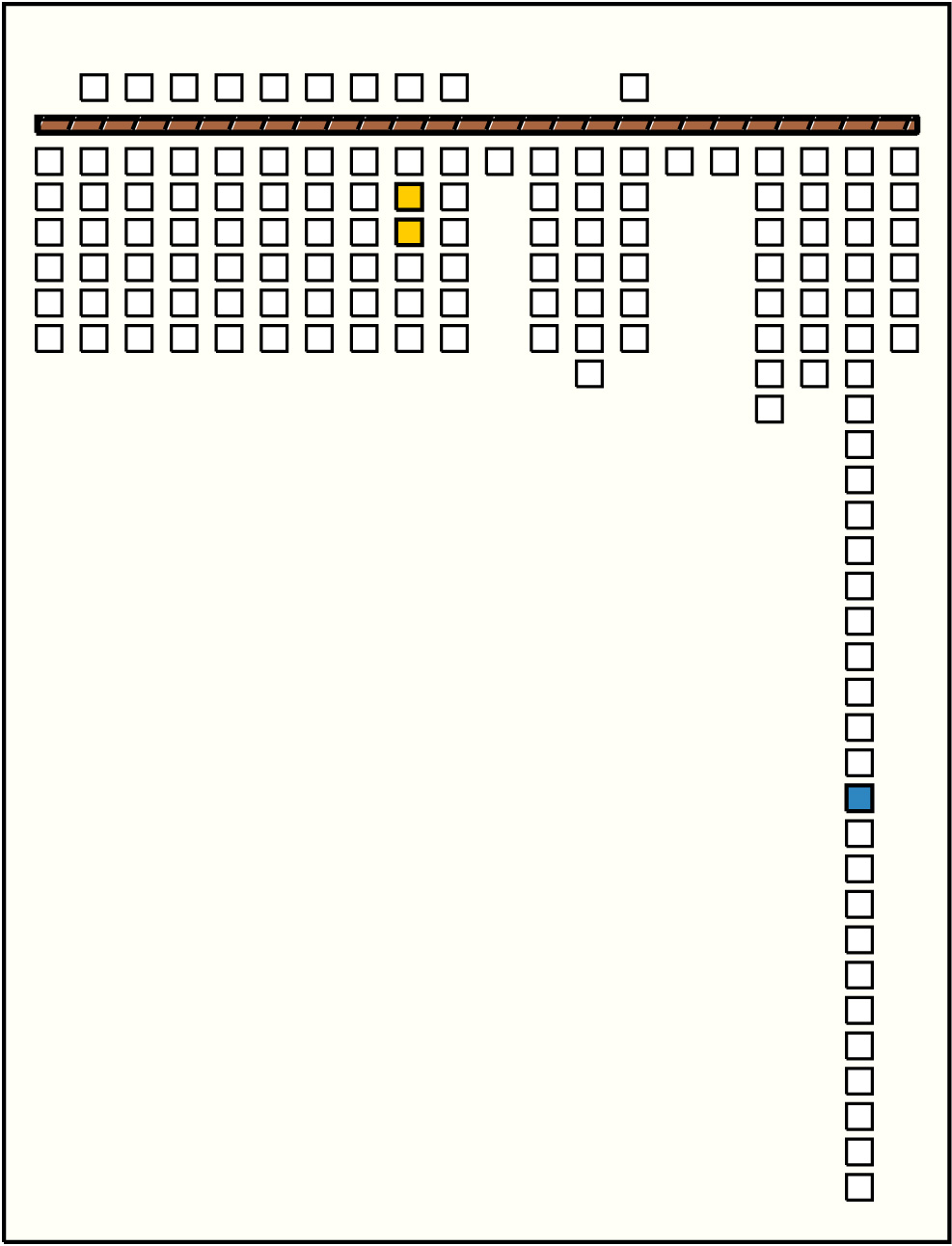

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g4p5 : 40YB | 40 | 2 | g1p4: 20MB + g1p5: 20MB | |
| 2 |  | g5p5 : 50YB | 50 | 2 | g4p4: 10MB + g4p5: 40YB | |
| 3 |  | g7p3 : 29MB | 29 | 3 | g3p2: 5MB + g3p3: 14MB + g3p4: 10MB | |
| 4 |  | g7p5 : 60YB | 60 | 2 | g5p4: 10MB + g5p5: 50YB | |
| 5 |  | g9p6 : 21MB | 21 | 2 | g7p6: 14YB + g7p7: 7YB | |
| 6 |  | g9p7 : 12MB | 12 | 2 | g7p7: 7YB + g8p1: 5YB | |
| 7 |  | g10p5 : 86YB | 86 | 4 | g7p5: 60YB + g7p6: 14YB + g7p7: 7YB + g8p1: 5YB | |
| 8 |  | g12p2 : 74MB | 74 | 2 | g7p5: 60YB + g7p6: 14YB | |
| 9 |  | g12p4 : 95MB | 95 | 4 | g7p4: 14MB + g7p5: 60YB + g7p6: 14YB + g7p7: 7YB | |
| 10 |  | g12p5 : 11MB | 11 | 2 | g1p1: 1MB + g1p2: 10MB | |
| 11 |  | g13p1 : 238YB:MB | 238 | 9 | g7p5: 60YB + g7p6: 14YB + g7p7: 7YB + g8p1: 5YB + g8p2: 53YB + g8p3: 17YB + g8p4: 62YB + g8p5: 0YB + g8p6: 20YB | |
| 12 |  | g13p3 : 65YB | 65 | 3 | g7p7: 7YB + g8p1: 5YB + g8p2: 53YB | |
| 13 |  | g14p1 : 216YB:MB | 216 | 7 | g10p3: 64YB + g10p4: 21YB + g10p5: 86YB + g10p6: 23YB + g10p7: 16YB + g11p1: 0YB:MB + g12p1: 6MB | |
| 14 |  | g14p4 : 15MB | 15 | 8 | g2p2: 10MB + g2p3: 0MB + g2p4: 0MB + g2p5: 0MB + g2p6: 0MB + g2p7: 0MB + g3p1: 0MB + g3p2: 5MB | |
| 15 |  | g15p1 : 234YB:MB | 234 | 2 | g13p7: 18YB + g14p1: 216YB:MB | |
| 16 |  | g17p1 : 242YB:MB | 242 | 8 | g10p6: 23YB + g10p7: 16YB + g11p1: 0YB:MB + g12p1: 6MB + g12p2: 74MB + g12p3: 17MB + g12p4: 95MB + g12p5: 11MB | |
| 17 |  | g17p5 : 106YB | 106 | 2 | g12p4: 95MB + g12p5: 11MB | |
| 18 |  | g17p6 : 19YB | 19 | 2 | g3p2: 5MB + g3p3: 14MB | |
| 19 |  | g17p7 : 17YB | 17 | 2 | g14p6: 12MB + g14p7: 5MB | |
| 20 |  | g17p8 : 193YB:MB | 193 | 2 | g8p6: 20YB + g8p7: 173YB | |
| 21 |  | g18p5 : 90YB | 90 | 3 | g9p2: 6MB + g9p3: 62MB + g9p4: 22MB | |
| 22 |  | g19p1 : 183YB:MB | 183 | 5 | g9p2: 6MB + g9p3: 62MB + g9p4: 22MB + g9p5: 72MB + g9p6: 21MB | |
| 23 |  | g19p3 : 36MB | 36 | 2 | g17p6: 19YB + g17p7: 17YB | |
| 24 |  | g19p4 : 22MB | 22 | 3 | g10p7: 16YB + g11p1: 0YB:MB + g12p1: 6MB | |
| 25 |  | g19p12 : 82YB | 82 | 2 | g17p2: 6YB + g17p3: 76YB | |
| 26 |  | g19p15 : 196YB:MB | 196 | 5 | g18p3: 63YB + g18p4: 16YB + g18p5: 90YB + g18p6: 13YB + g18p7: 14YB | |
| 27 |  | g19p17 : 55MB | 55 | 12 | g1p4: 20MB + g1p5: 20MB + g1p6: 0MB + g2p1: 0MB + g2p2: 10MB + g2p3: 0MB + g2p4: 0MB + g2p5: 0MB + g2p6: 0MB + g2p7: 0MB + g3p1: 0MB + g3p2: 5MB | |
| 28 |  | g19p19 : 84MB | 84 | 2 | g9p3: 62MB + g9p4: 22MB | |
| 29 |  | g19p21 : 23MB | 23 | 2 | g12p5: 11MB + g12p6: 12MB | |
| 30 |  | g19p22 : 207YB:MB | 207 | 5 | g5p4: 10MB + g5p5: 50YB + g5p6: 0YB + g5p7: 0YB + g6p1: 147YB:MB | |
| 31 |  | g19p27 : 85YB | 85 | 3 | g18p2: 6YB + g18p3: 63YB + g18p4: 16YB | |
| 32 |  | g19p30 : 24YB | 24 | 2 | g3p3: 14MB + g3p4: 10MB | |
| 33 |  | g20p1 : 183YB:MB | 183 | 7 | g19p23: 6YB + g19p24: 41YB + g19p25: 11YB + g19p26: 18YB + g19p27: 85YB + g19p28: 10YB + g19p29: 12YB |
Khipu Notes:
45s3: broken ≥2L knot (unidentifiable) on end of string
T10: this is not a loop-through top cord like the others; it attaches one primary cord to the other
100: fragile; string held together by a single fraying thread
109s2: highly-damaged 1E knot, knot direction uncertain
114s2: broken and unraveling long knot; number of turns uncertain
128s2: might be 8L (very tight long knot)
130s1: at 2.0cm single thread holding this pendant together
Primary Cord Notes
Notes: ***Read from left to right as mounted. Note that this khipu consists of two primary cords tied together. Primary cord 1 has one string attached to it and was recorded separately. This is the record for primary cord 2.
